Valve Cover LH: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: Installation of new spark plug seals or VCT seals is only required if seals are damaged.
  1. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Remove the following items:

    1. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    2. Remove the air cleaner. Refer to: Air Cleaner .

  3. Follow directions to release the quick release coupling type 3. Remove the crankcase vent tube.
    GFD553250Courtesy of FORD MOTOR COMPANY
  4. Remove the oil level indicator.
    GFD553251Courtesy of FORD MOTOR COMPANY
  5. Remove the following items:

    1. Remove the LH ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
    2. Remove the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .

    • Disconnect the VCT oil control solenoid electrical connectors.

    • Disconnect the oil pressure sensor electrical connector.

    • Detach the wiring harness retainers.

    GFD553252Courtesy of FORD MOTOR COMPANY

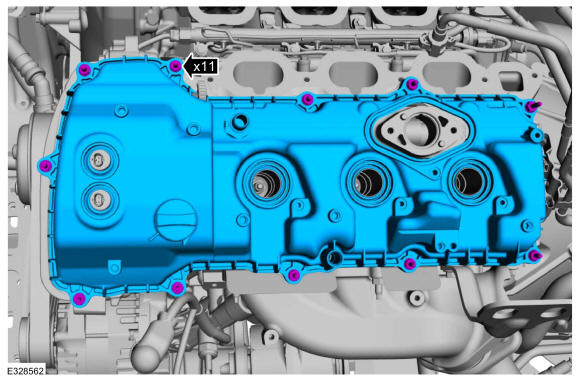

  7. NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.
    NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

    Loosen the bolts and remove the valve cover.

    GFD553253Courtesy of FORD MOTOR COMPANY

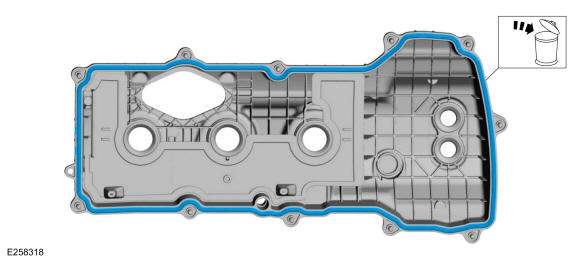

  8. Remove and discard the valve cover gasket.
    GFD553254Courtesy of FORD MOTOR COMPANY

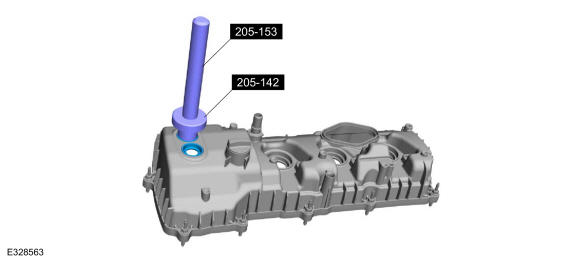

  9. NOTE: Inspect the VCT oil control solenoid seals. Remove any damaged seals.

    If necessary, using the special tools, remove the VCT oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.

    GFD553255Courtesy of FORD MOTOR COMPANY

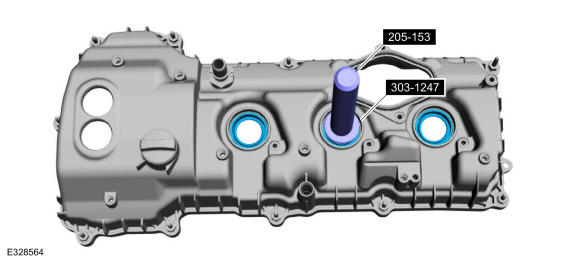

  10. NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

    If necessary, using the special tools, remove the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer., 205-153 (T80T-4000-W) Handle.

    GFD553256Courtesy of FORD MOTOR COMPANY

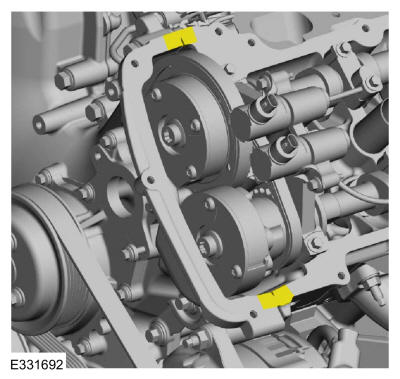

  11. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD553257Courtesy of FORD MOTOR COMPANY
