Valve Cover LH: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Installation of new seals is only required if damaged seals were removed.

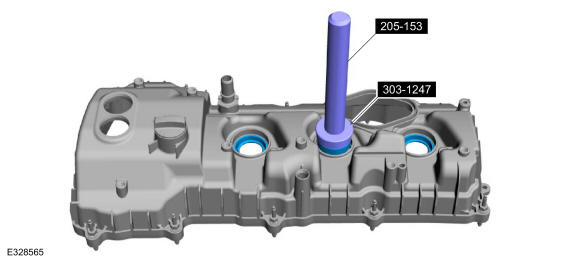

If removed, using the special tools, install the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer., 205-153 (T80T-4000-W) Handle.
-
NOTE: Installation of new seals is only required if damaged seals were removed.
If removed, using the special tools, install the VCT oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.
-
NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned.

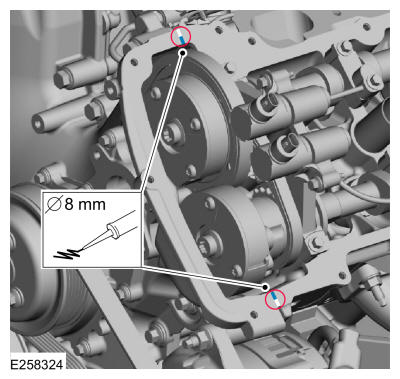

Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.
Material
: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

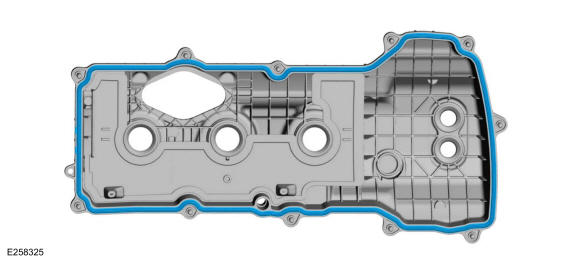

- Install a new valve cover gasket.

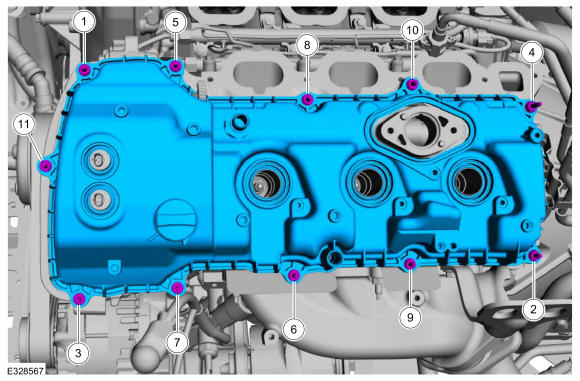

- Install the valve cover and tighten the bolts.
Torque: 89 lb.in (10 Nm)

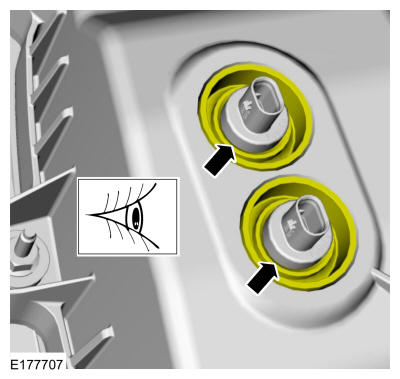

- Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.
-

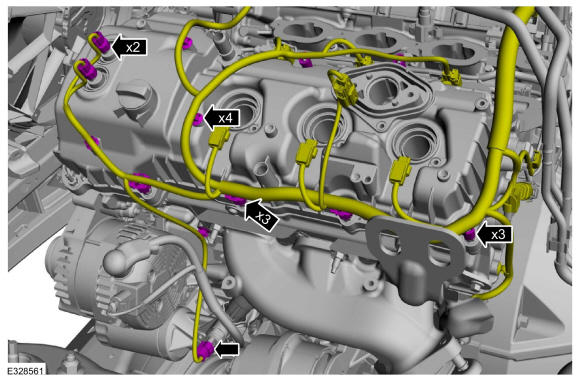

- Attach the wiring harness retainers.
- Connect the oil pressure sensor electrical connector.
- Connect the VCT oil control solenoid electrical connectors.
- Install the following items:
- Install the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .
- Install the LH ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .

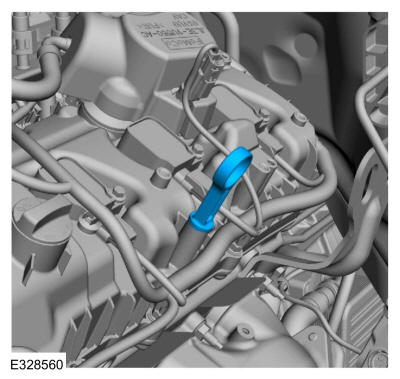

- Install the oil level indicator.

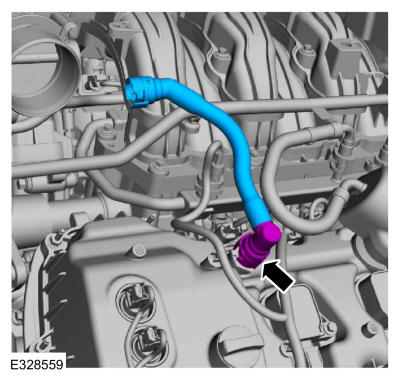

- Install the crankcase vent tube.
- Install the following items:
- Install the air cleaner. Refer to: Air Cleaner .
- Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
- Pressurize the fuel system. Refer to: Fuel System Pressure Release .
