Oil Pump: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

4x2/4x4

  1. Remove the engine front cover. Refer to: Engine Front Cover .
  2. Install the original crankshaft pulley bolt and washer.
    GFD553197Courtesy of FORD MOTOR COMPANY
  3. NOTE: Rotate the crankshaft in a clockwise direction only.

    Align the timing marks.

    GFD553198Courtesy of FORD MOTOR COMPANY
  4. Remove the bolts and the LH oil tube.
    GFD553199Courtesy of FORD MOTOR COMPANY
  5. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    GFD553200Courtesy of FORD MOTOR COMPANY
  6. Remove the bolts and the RH oil tube.
    GFD553201Courtesy of FORD MOTOR COMPANY
  7. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    GFD553202Courtesy of FORD MOTOR COMPANY
    NOTE: The following 3 steps are for primary timing chains that the colored links are not visible.
  8. Mark the timing chain link that aligns with the timing mark on the LH intake VCT unit as shown.
    GFD553203Courtesy of FORD MOTOR COMPANY
  9. Mark the timing chain link that aligns with the timing mark on the RH intake VCT unit as shown.
    GFD553204Courtesy of FORD MOTOR COMPANY
  10. NOTE: The crankshaft sprocket timing mark should be between the colored links.

    Mark the timing chain links that aligns with the timing mark on the crankshaft sprocket as shown.

    GFD553205Courtesy of FORD MOTOR COMPANY
  11. Remove the bolts and the timing chain tensioner.
    GFD553206Courtesy of FORD MOTOR COMPANY
  12. Remove the timing chain tensioner arm.
    GFD553207Courtesy of FORD MOTOR COMPANY
  13. Remove the bolts and the lower LH timing chain guide.
    GFD553208Courtesy of FORD MOTOR COMPANY

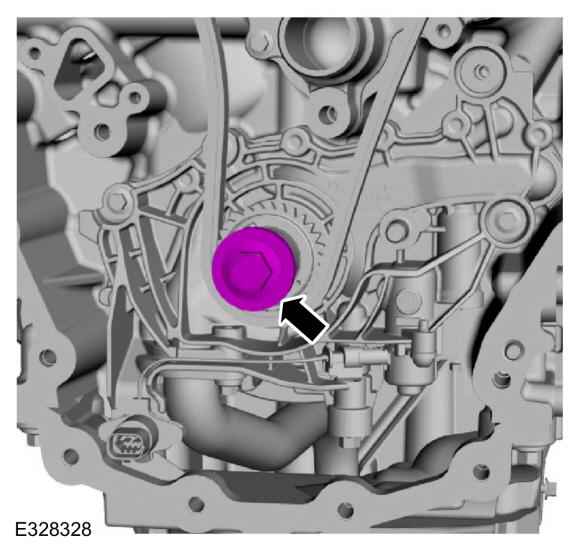

  14. Remove the crankshaft pulley bolt and washer.
    GFD553209Courtesy of FORD MOTOR COMPANY

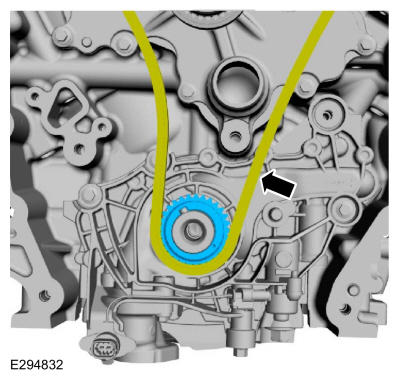

  15. Position the timing chain aside and remove the crankshaft sprocket.
    GFD553210Courtesy of FORD MOTOR COMPANY
  16. Remove the nuts, bolts and the crossmember.
    GFD553172Courtesy of FORD MOTOR COMPANY

    4x4

  17. Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands
    GFD552540Courtesy of FORD MOTOR COMPANY
  18. Remove and discard the lower front axle carrier mounting bushing bolt.
    GFD552541Courtesy of FORD MOTOR COMPANY
  19. Remove and discard the axle shaft housing carrier bushing nut and the bolt.
    GFD552542Courtesy of FORD MOTOR COMPANY
  20. NOTE: After loosening the bolt, it may be necessary to reposition the axle assembly to prevent interference with the steering components when removing the bolt.

    Remove and discard the upper front axle carrier mounting bushing nut and the bolt.

    GFD552543Courtesy of FORD MOTOR COMPANY
  21. Using an adjustable stand, lower the axle to allow clearance for the oil pan to be removed. Use the General Equipment: Vehicle/Axle Stands
    GFD552544Courtesy of FORD MOTOR COMPANY

    4x2/4x4

  22. Remove the oil pan bolt.
    GFD553211Courtesy of FORD MOTOR COMPANY
  23. Remove the oil pan bolts.
    GFD553177Courtesy of FORD MOTOR COMPANY
  24. NOTE: The generator wiring harness retainer is being removed for clearance to install the oil pan.

    Detach the generator wiring harness retainer from the engine block.

    GFD553124Courtesy of FORD MOTOR COMPANY

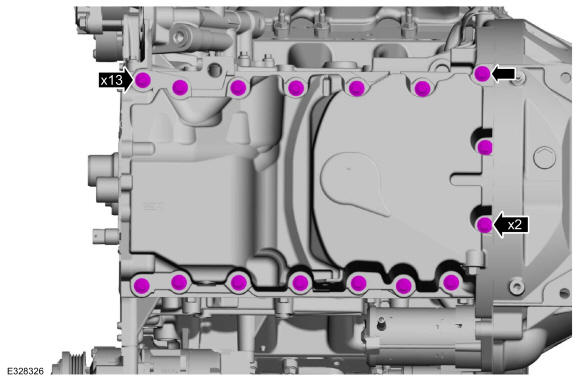

  25. Remove the oil pan bolts.
    GFD553212Courtesy of FORD MOTOR COMPANY

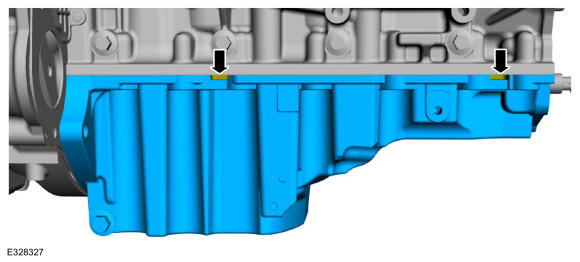

  26. NOTE: RH side shown, LH side similar.

    Using a pry tool on the pry pads shown, remove the oil pan.

    GFD553213Courtesy of FORD MOTOR COMPANY

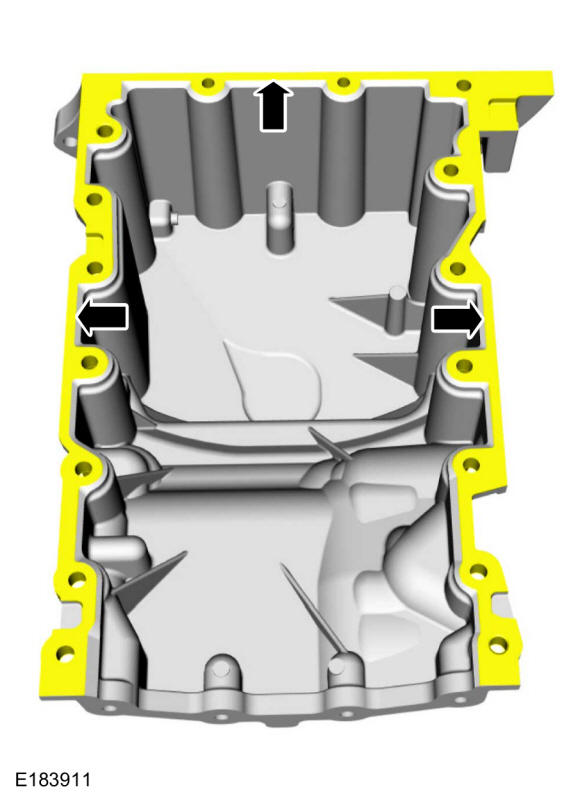

  27. Clean and prepare the RTV sealing surface.
    GFD553214Courtesy of FORD MOTOR COMPANY

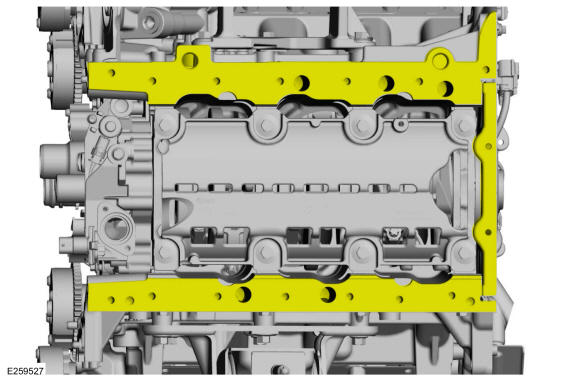

  28. Clean and prepare the RTV sealing surface.
    GFD553215Courtesy of FORD MOTOR COMPANY
  29. Remove the bolts and oil pump screen and pickup tube.
    GFD553216Courtesy of FORD MOTOR COMPANY
  30. Remove and discard the oil pump screen and pickup tube O-ring seal.
    GFD553217Courtesy of FORD MOTOR COMPANY
  31. Remove the bolts and oil pump.
GFD553218Courtesy of FORD MOTOR COMPANY
