Lower Intake Manifold: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the port injection fuel rail. Refer to: Port Injection Fuel Rail .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

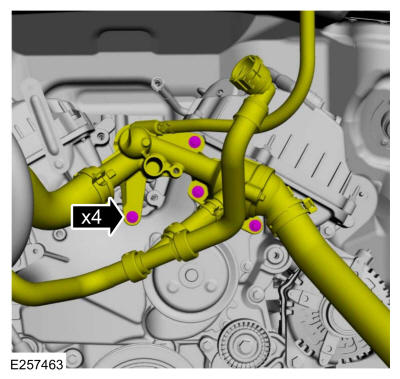

Remove the bolts and position the thermostat housing aside.

Courtesy of FORD MOTOR COMPANY

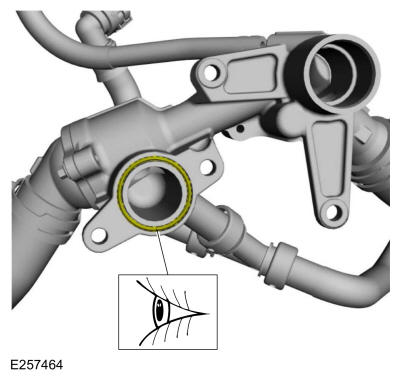

Inspect the O-ring seal and replace if necessary.

Courtesy of FORD MOTOR COMPANY

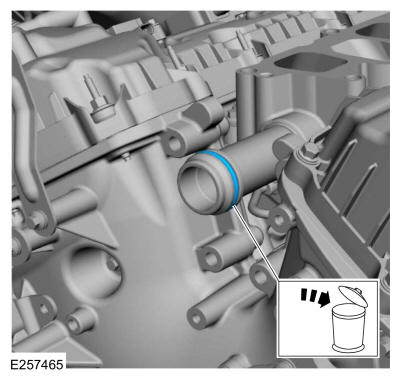

Discard the coolant tube O-rings seal.

Courtesy of FORD MOTOR COMPANY

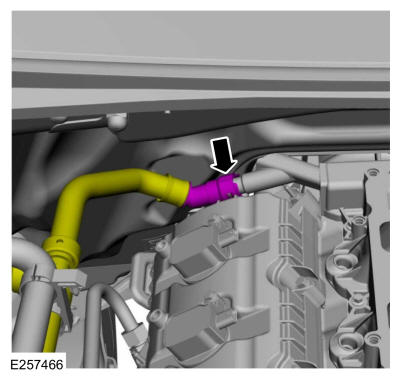

Disconnect the coolant tube from the lower intake manifold.

Courtesy of FORD MOTOR COMPANY

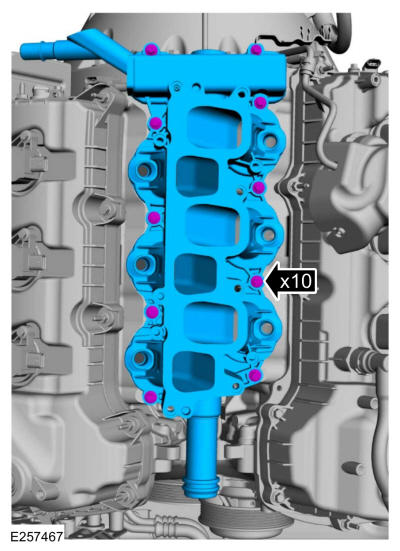

Remove the bolts and the lower intake manifold.

Courtesy of FORD MOTOR COMPANY

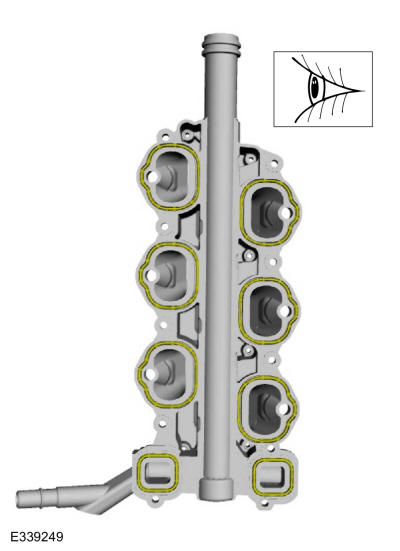

- Visually inspect the lower intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be re-used.
- Clean and inspect all sealing surfaces.

Courtesy of FORD MOTOR COMPANY
