Lower Intake Manifold: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

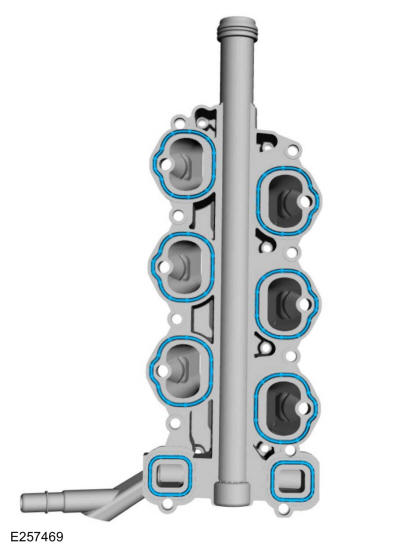

If the gaskets were removed for damage, install new lower intake manifold gaskets.

Courtesy of FORD MOTOR COMPANY
Install the lower intake manifold and the bolts.
Torque: 89 lb.in (10 Nm)

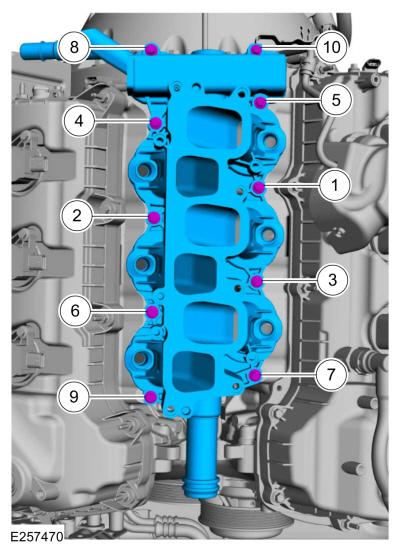

Fig 1: Lower Intake Manifold Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Connect the coolant tube to the lower intake manifold.

Courtesy of FORD MOTOR COMPANY

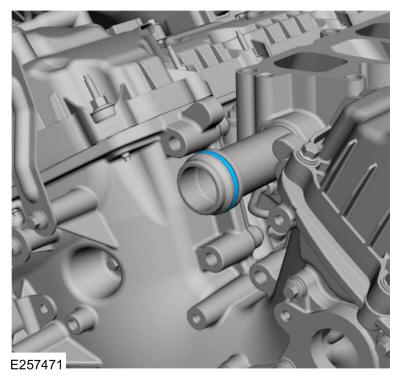

Install a new coolant tube O-rings seal.

Courtesy of FORD MOTOR COMPANY
Position the thermostat housing and install the bolts.
Torque:Stage 1: 71 lb.in (8 Nm); Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Install the port injection fuel rail. Refer to: Port Injection Fuel Rail .
Road test the vehicle.
