Removal And Installation: Flexplate: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: One of the 8 flexplate holes are offset so the flexplate can only be installed in one position.
- Install the flexplate aligning it with the offset hole and hand start bolts 5, 6, 7 and 8.
- Tighten the bolts 5, 6, 7 and 8 in sequence one turn at a time until the flexplate is snug against the rear face of the crankshaft.
- Torque the bolts 5, 6, 7 and 8 in sequence.
  Torque: 59 lb.ft (80 Nm)
- Install the bolts 1, 2, 3 and 4 finger tight.
- Torque the bolts 1, 2, 3 and 4 in sequence.
  Torque: 59 lb.ft (80 Nm)

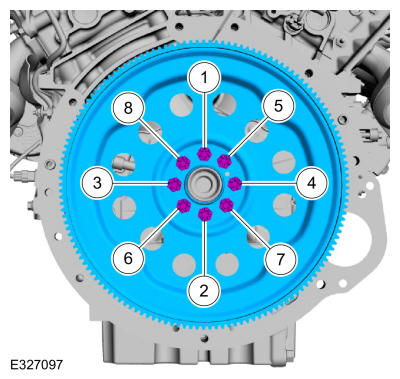

Fig 1: Flexplate Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the automatic transmission. Refer to: Transmission - 3.3L Duratec-V6 .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
Road test the vehicle.
