Exhaust Manifold RH: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- If equipped, remove the bolts and the transmission housing cover.
-
NOTE: Vehicles come with an underbody shield or a skid plate.
If equipped, remove the bolts and the underbody shield.
-
NOTE: Vehicles come with an underbody shield or a skid plate.
If equipped, remove the bolts and the skid plate.
-
- Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.
- Make sure that the mating faces are clean and free of foreign material.
-
- Remove and discard the LH catalytic converter-to-exhaust manifold nuts.
- Make sure that the mating faces are clean and free of foreign material.
-
- Remove and discard the RH catalytic converter-to-exhaust manifold nuts.
- Make sure that the mating faces are clean and free of foreign material.
- Remove the following items:
- Remove the RH fender splash shield. Refer to: Fender Splash Shield .
- Remove the EGR inlet tube. Refer to: Exhaust Gas Recirculation (EGR) Inlet Tube .
-

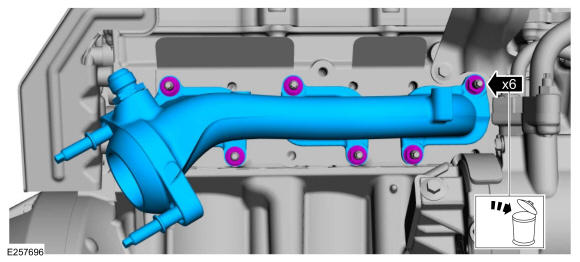

- Remove the nuts and the exhaust manifold.
- Discard the nuts.
-

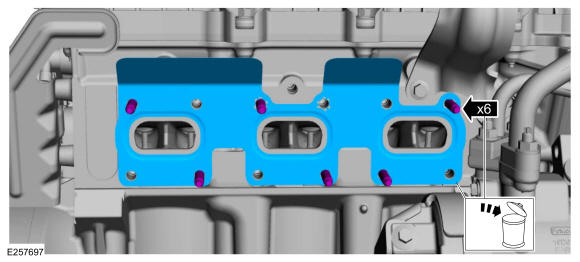

- Remove and discard the exhaust manifold gasket.
- Remove and discard the exhaust manifold studs.
- Clean and inspect the RH exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
-
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These may cause scratches and gouges resulting in leak paths. Use a plastic scraper to clean the sealing surfaces.

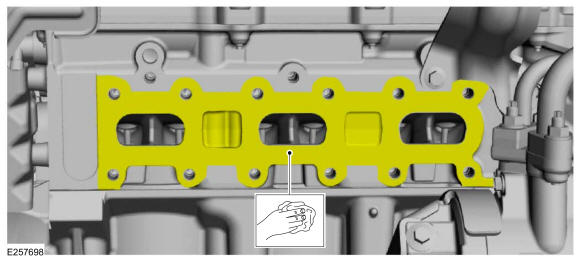

Clean the exhaust manifold mating surface of the cylinder head.
