Exhaust Manifold LH: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped, remove the bolts and the transmission housing cover.

Courtesy of FORD MOTOR COMPANY
NOTE: Vehicles come with an underbody shield or a skid plate.

If equipped, remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: Vehicles come with an underbody shield or a skid plate.

If equipped, remove the bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY
- Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.
- Make sure that the mating faces are clean and free of foreign material.
Courtesy of FORD MOTOR COMPANY
- Remove and discard the LH catalytic converter-to-exhaust manifold nuts.
- Make sure that the mating faces are clean and free of foreign material.
Courtesy of FORD MOTOR COMPANY
- Remove and discard the RH catalytic converter-to-exhaust manifold nuts.
- Make sure that the mating faces are clean and free of foreign material.
Courtesy of FORD MOTOR COMPANY
Remove the LH fender splash shield. Refer to: Fender Splash Shield .

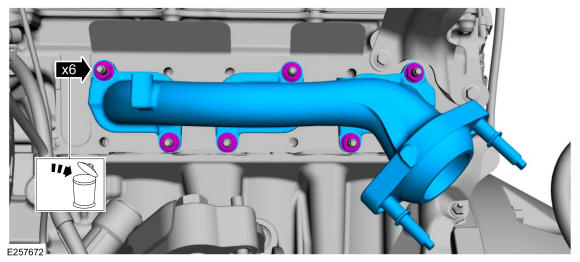

- Remove the nuts and the LH exhaust manifold.
- Discard the nuts.
Courtesy of FORD MOTOR COMPANY

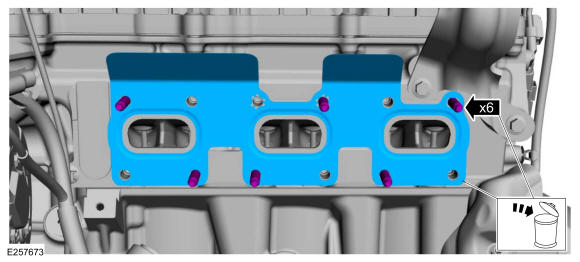

- Remove and discard the exhaust manifold gasket.
- Remove and discard the exhaust manifold studs.
Courtesy of FORD MOTOR COMPANY
Clean and inspect the LH exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These may cause scratches and gouges resulting in leak paths. Use a plastic scraper to clean the sealing surfaces.

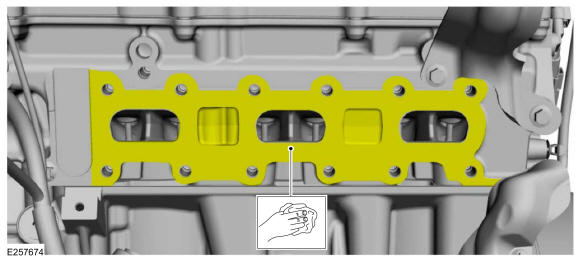

Clean the exhaust manifold mating surface of the cylinder head.

Courtesy of FORD MOTOR COMPANY
