Engine Mount RH: Removal

4x2/4x4

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. If equipped, remove the bolts and the transmission housing cover.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: Vehicles come with an underbody shield or a skid plate.

   If equipped, remove the bolts and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Vehicles come with an underbody shield or a skid plate.

   If equipped, remove the bolts and the skid plate.

   Courtesy of FORD MOTOR COMPANY

   4x4

5. Remove the front driveshaft. Refer to: Front Driveshaft .

   4x2/4x4

6. • Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.
   • Make sure that the mating faces are clean and free of foreign material.

   Courtesy of FORD MOTOR COMPANY

7. • Remove and discard the LH catalytic converter-to-exhaust manifold nuts.
   • Make sure that the mating faces are clean and free of foreign material.

   Courtesy of FORD MOTOR COMPANY

8. • Remove and discard the RH catalytic converter-to-exhaust manifold nuts.
   • Make sure that the mating faces are clean and free of foreign material.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

   Loosen the transmission mount-to-crossmember nuts.

   Courtesy of FORD MOTOR COMPANY

10. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
11. Disconnect the A/C compressor wiring harness electrical connectors and the retainer.

    Courtesy of FORD MOTOR COMPANY

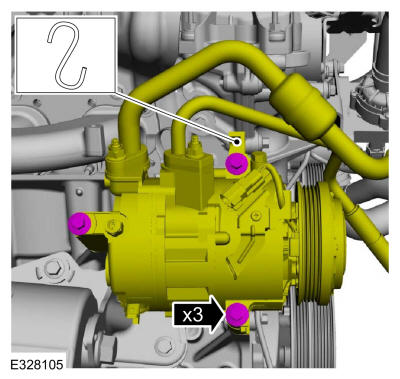

12. Remove the bolts, position and support the A/C compressor aside.

    Courtesy of FORD MOTOR COMPANY

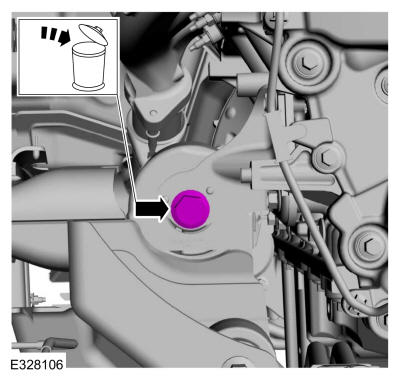

13. NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the RH engine mount through bolt.

    Courtesy of FORD MOTOR COMPANY

14. Remove the starter. Refer to: Starter Motor .
15. NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Only use hand tools when removing the engine mount nuts, studs or damage to the engine mount can occur.
    • Remove and discard the RH engine mount nuts.
    • Remove the RH engine mount studs.

    Courtesy of FORD MOTOR COMPANY

17. • Remove and discard the stabilizer bar bracket nuts.
    • Allow the stabilizer bar to swing downward.

    Courtesy of FORD MOTOR COMPANY

18. 1. Position an adjustable stand under the rear of the engine. Use the General Equipment: Vehicle/Axle Stands
    2. Raise the engine 63.5 mm (2.5 in).

    Courtesy of FORD MOTOR COMPANY

19. Remove the RH engine mount.

    Courtesy of FORD MOTOR COMPANY

20. Remove the bolts and the RH engine mount-to-cylinder block bracket.

Courtesy of FORD MOTOR COMPANY
