Engine Mount RH: Installation

4x2/4x4

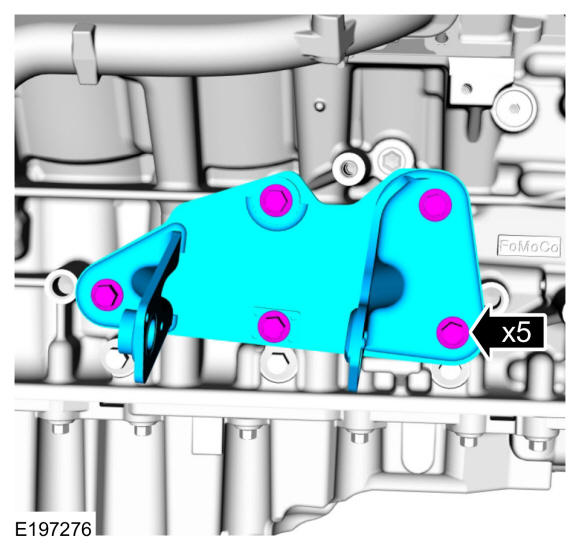

1. • Clean the engine mount-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.
   • Position the RH engine mount-to-cylinder block bracket and install the bolts.

     Torque: 55 lb.ft (75 Nm)

   Courtesy of FORD MOTOR COMPANY

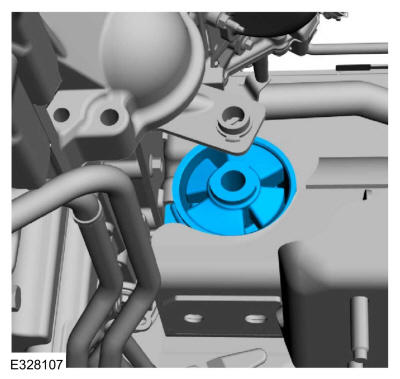

2. • Clean the engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.
   • Position the RH engine mount into the vehicle.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
   • Apply threadlock to the engine mount stud threads prior to installation.

     Material

     : Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

   • Install the engine mount studs.

     Torque: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

   Install the new RH engine mount nuts.

   Torque: 111 lb.ft (150 Nm)

   Courtesy of FORD MOTOR COMPANY

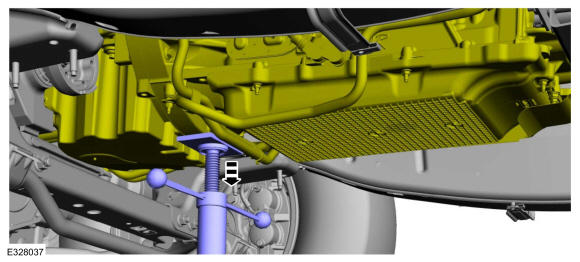

5. • Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle Stands
   • Remove the stand.

   Courtesy of FORD MOTOR COMPANY

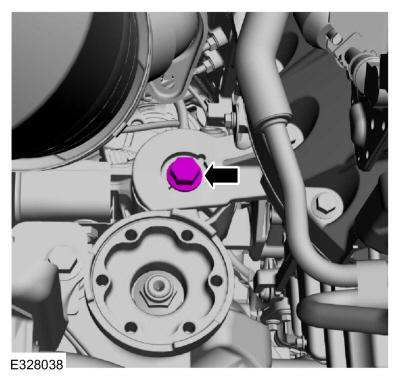

6. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Install the new LH engine mount through bolt.

   Torque: 258 lb.ft (350 Nm)

   Courtesy of FORD MOTOR COMPANY

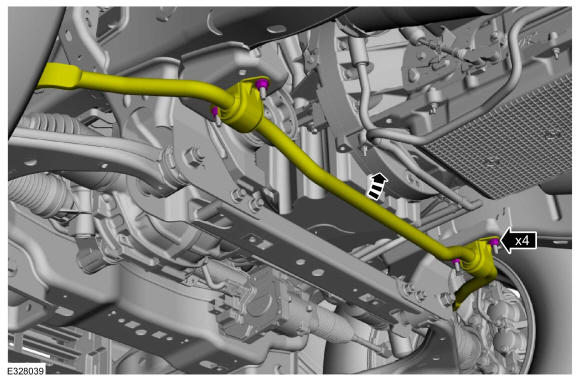

7. Position the stabilizer bar and install the new nuts.

   Torque: 41 lb.ft (55 Nm)

   Courtesy of FORD MOTOR COMPANY

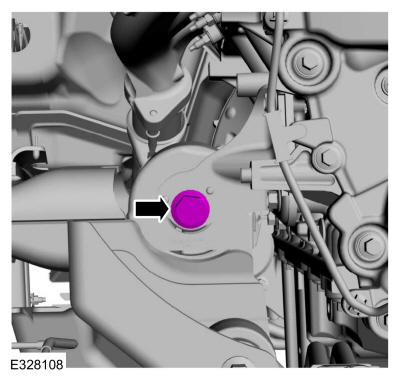

8. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Install the new RH engine mount through bolt.

   Torque: 258 lb.ft (350 Nm)

   Courtesy of FORD MOTOR COMPANY

9. Install the starter motor. Refer to: Starter Motor .

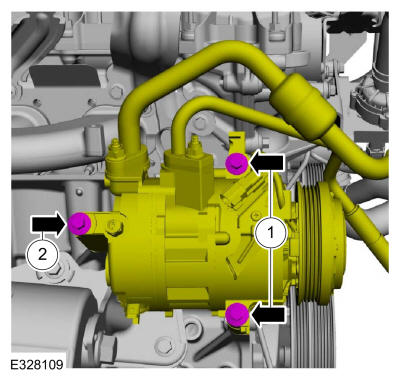

10. 1. Position the A/C compressor and install the 2 bolts and tighten.

       Torque: 18 lb.ft (25 Nm)

    2. Install the remaining A/C compressor bolt and tighten.

       Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
12. • Remove and discard the transmission mount-to-crossmember nuts.
    • Install new transmission mount-to-crossmember nuts.

      Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Install the new RH catalytic converter-to-exhaust manifold nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Install the new LH catalytic converter-to-exhaust manifold nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

15. • Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
    • Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 30 lb.ft (40 Nm)

    • Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

    4x4

16. Install the front driveshaft. Refer to: Front Driveshaft .

    4x2/4x4

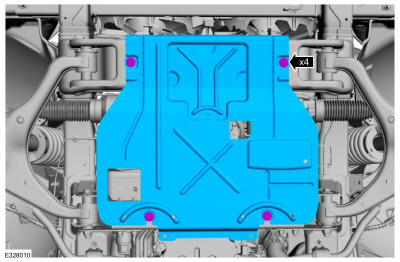

17. If equipped, install the skid plate and the bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

18. If equipped, install the underbody shield and bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

19. If equipped, install the transmission housing cover and the bolts

    Torque: 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

20. Start and check the exhaust system for leaks.
