Engine Mount LH: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

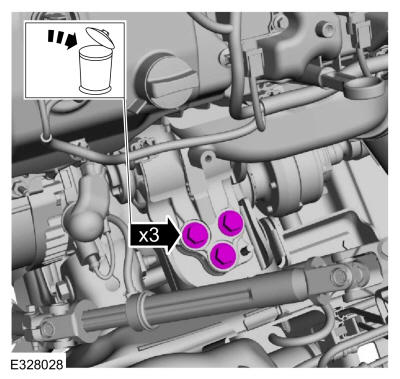

  2. NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

    Remove and discard the LH engine mount-to-frame bolts.

    GFD553116Courtesy of FORD MOTOR COMPANY
  3. If equipped, remove the bolts and the transmission housing cover.
    GFD552533Courtesy of FORD MOTOR COMPANY
  4. NOTE: Vehicles come with an underbody shield or a skid plate.

    If equipped, remove the bolts and the underbody shield.

    GFD552535Courtesy of FORD MOTOR COMPANY
  5. NOTE: Vehicles come with an underbody shield or a skid plate.

    If equipped, remove the bolts and the skid plate.

    GFD552992Courtesy of FORD MOTOR COMPANY

    4x4

  6. Remove the bolts and the LH heat shield.
    GFD552547Courtesy of FORD MOTOR COMPANY
  7. Remove the front driveshaft. Refer to: Front Driveshaft .

    4x2/4x4

    • Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

    • Make sure that the mating faces are clean and free of foreign material.

    GFD552536Courtesy of FORD MOTOR COMPANY

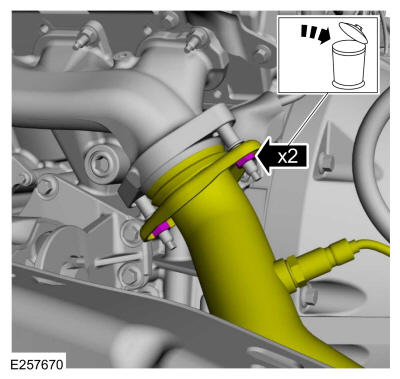

    • Remove and discard the LH catalytic converter-to-exhaust manifold nuts.

    • Make sure that the mating faces are clean and free of foreign material.

    GFD553048Courtesy of FORD MOTOR COMPANY

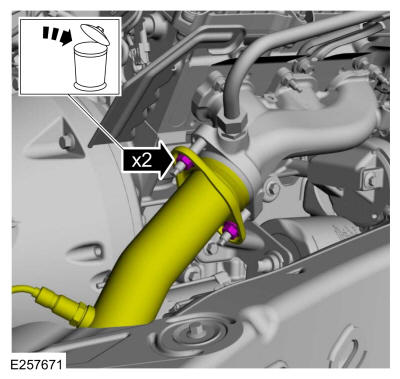

    • Remove and discard the RH catalytic converter-to-exhaust manifold nuts.

    • Make sure that the mating faces are clean and free of foreign material.

    GFD553049Courtesy of FORD MOTOR COMPANY
  8. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

    GFD552537Courtesy of FORD MOTOR COMPANY

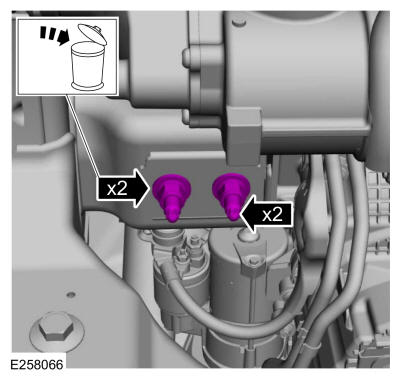

  9. NOTE: Only use hand tools when removing the engine mount nuts, studs or damage to the engine mount can occur.

    • Remove and discard the RH engine mount nuts.

    • Remove the RH engine mount studs.

    GFD553117Courtesy of FORD MOTOR COMPANY

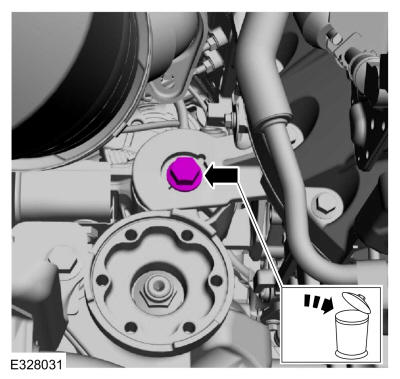

  10. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.
    NOTE: 4x4 shown, 4x2 similar.

    Remove and discard the LH engine mount through bolt.

    GFD553118Courtesy of FORD MOTOR COMPANY

    4x4

  11. Using a holding device, hold the steering wheel in the straight-ahead position.
    GFD552282Courtesy of FORD MOTOR COMPANY

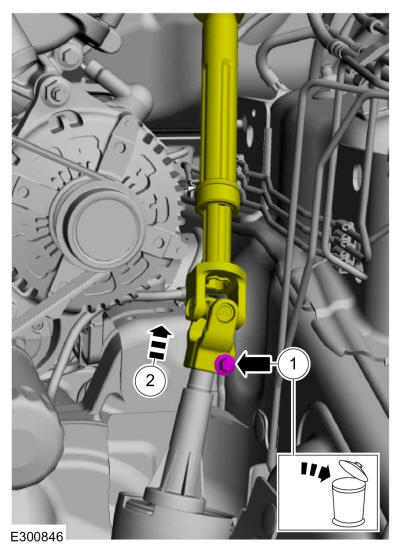

    1. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Remove and discard the steering column shaft bolt.

    2. Separate the steering column shaft U-joint from the steering gear.
    GFD552538Courtesy of FORD MOTOR COMPANY

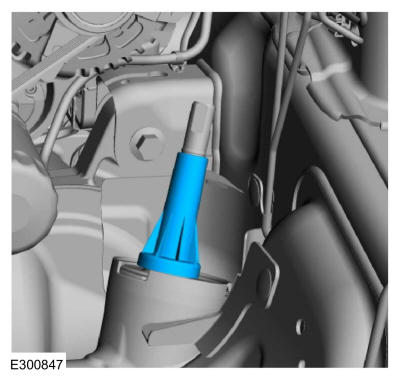

  12. Remove the steering gear boot.
    GFD552539Courtesy of FORD MOTOR COMPANY
  13. Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands
    GFD552540Courtesy of FORD MOTOR COMPANY

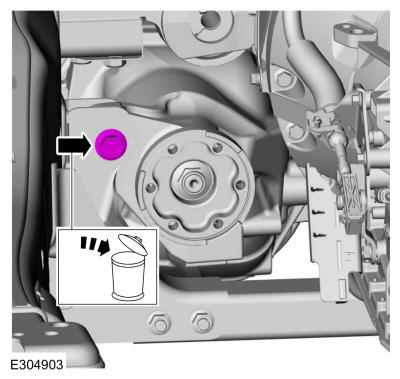

  14. Remove and discard the lower front axle carrier mounting bushing bolt.
    GFD552541Courtesy of FORD MOTOR COMPANY

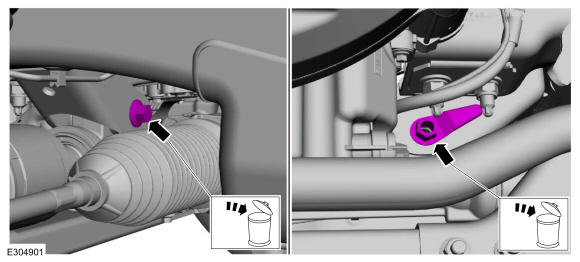

  15. Remove and discard the axle shaft housing carrier bushing nut and the bolt.
    GFD552542Courtesy of FORD MOTOR COMPANY
  16. NOTE: After loosening the bolt, it may be necessary to reposition the axle assembly to prevent interference with the steering components when removing the bolt.

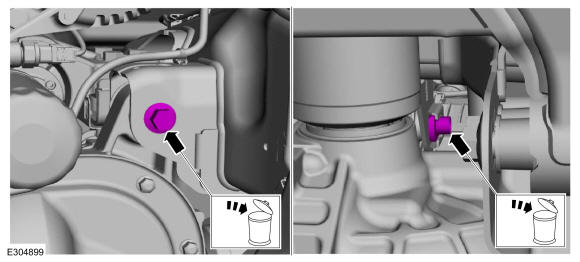

    Remove and discard the upper front axle carrier mounting bushing nut and the bolt.

    GFD552543Courtesy of FORD MOTOR COMPANY

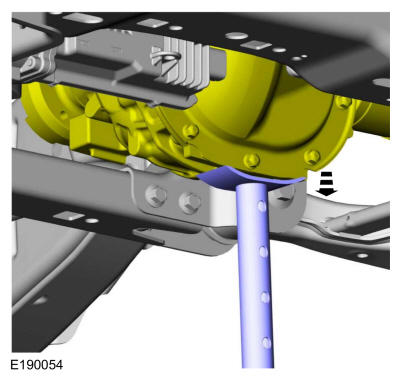

  17. Using an adjustable stand, lower the front axle to allow clearance to the LH engine mount and remove the stand. Use the General Equipment: Vehicle/Axle Stands
    GFD552544Courtesy of FORD MOTOR COMPANY

    4x2/4x4

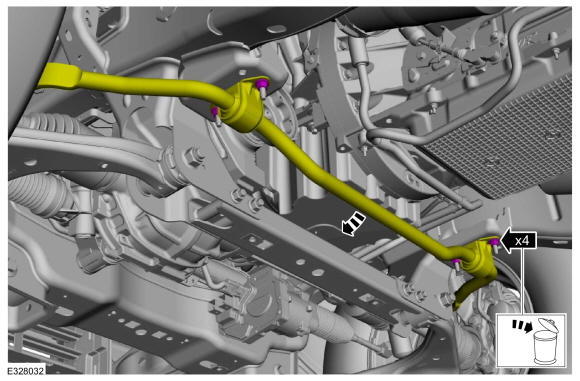

    • Remove and discard the stabilizer bar bracket nuts.

    • Allow the stabilizer bar to swing downward.

    GFD553119Courtesy of FORD MOTOR COMPANY

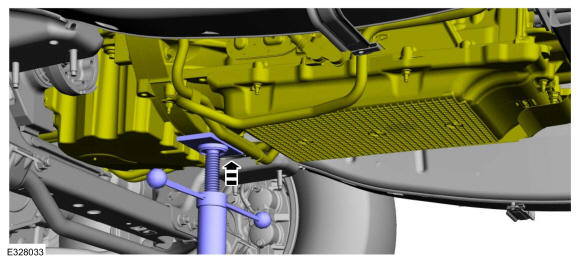

    1. Position an adjustable stand under the rear of the engine. Use the General Equipment: Vehicle/Axle Stands
    2. Raise the engine 63.5 mm (2.5 in).
    GFD553120Courtesy of FORD MOTOR COMPANY

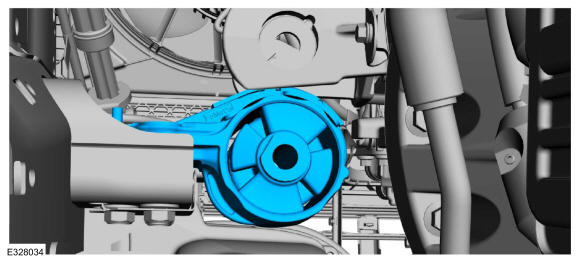

  18. Remove the LH engine mount.
    GFD553121Courtesy of FORD MOTOR COMPANY
    1. Inspect the engine mount-to-frame nut plate for thread damage.
    2. If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.
    GFD552551Courtesy of FORD MOTOR COMPANY
    NOTE: If necessary, the following 4 steps are to remove the LH engine mount-to-cylinder block bracket.

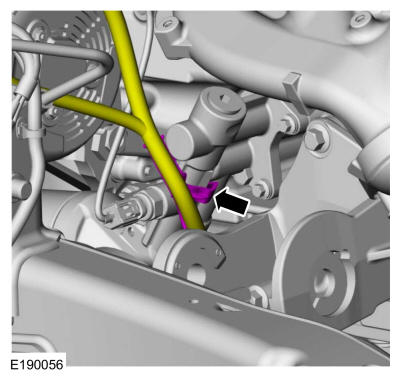

  19. Detach the generator wiring harness retainer from the oil filter adapter.
    GFD553122Courtesy of FORD MOTOR COMPANY

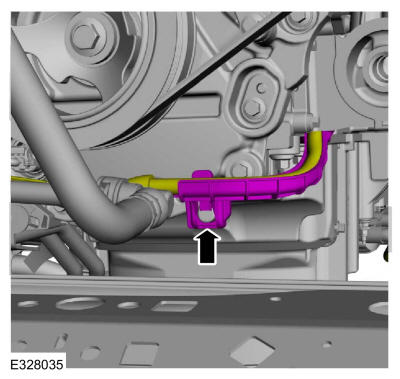

  20. Detach the generator wiring harness from the engine front cover.
    GFD553123Courtesy of FORD MOTOR COMPANY

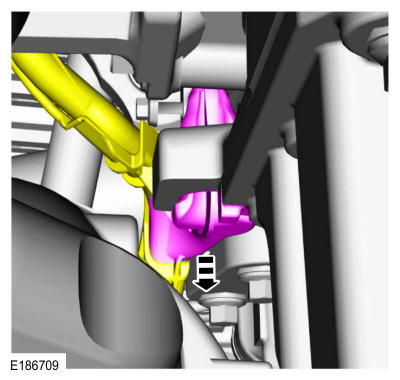

  21. Detach the generator wiring harness retainer from the lower LH side of the engine block.
    GFD553124Courtesy of FORD MOTOR COMPANY

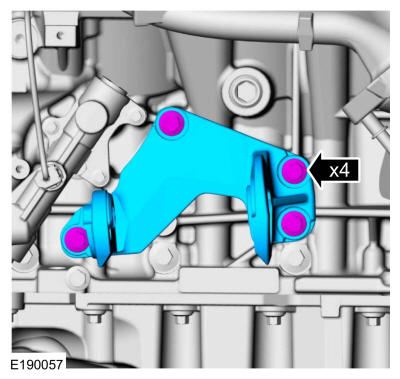

  22. Remove the 4 bolts and the LH engine mount-to-cylinder block bracket.
GFD553125Courtesy of FORD MOTOR COMPANY
