Engine Mount LH: Installation

4x2/4x4

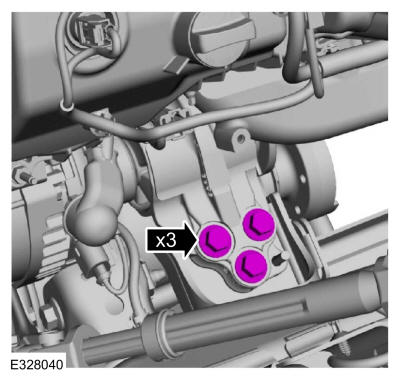

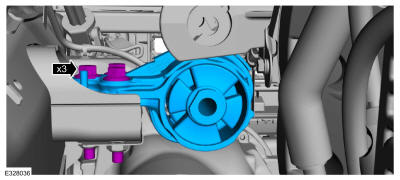

1. • Clean the engine mount-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.
   • Install the LH engine mount-to-cylinder block bracket and install the bolts.

     Torque: 55 lb.ft (75 Nm)

   Courtesy of FORD MOTOR COMPANY

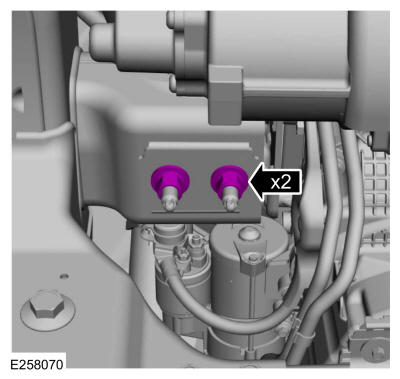

2. Attach the generator wiring harness retainer to the lower LH side of the engine block.

   Courtesy of FORD MOTOR COMPANY

3. Attach the generator wiring harness to the engine front cover.

   Courtesy of FORD MOTOR COMPANY

4. Attach the generator wiring harness retainer to the oil filter adapter.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Replace the nut plate with part number W716699-S439.

   If removed, install a new engine mount-to-frame nut plate.

   Courtesy of FORD MOTOR COMPANY

6. • Clean the engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.
   • Position the LH engine mount and hand start the new engine mount-to-frame bolts.
   • Do not torque at this time.

   Courtesy of FORD MOTOR COMPANY

7. • Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle Stands
   • Remove the stand.

   Courtesy of FORD MOTOR COMPANY

8. Install the new LH engine mount through bolt finger tight.

   Courtesy of FORD MOTOR COMPANY

9. Position the stabilizer bar and install the new nuts.

   Torque: 41 lb.ft (55 Nm)

   Courtesy of FORD MOTOR COMPANY

   4x4

10. Position the adjustable stand and raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

11. NOTE: It may be necessary to reposition the axle assembly to prevent interference with the steering components when installing the bolt.

    Install the new upper front axle carrier mounting bushing nut and the bolt finger tight.

    Courtesy of FORD MOTOR COMPANY

12. Install the new axle shaft housing carrier bushing nut and the bolt finger tight.

    Courtesy of FORD MOTOR COMPANY

13. Install the new lower front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Tighten the axle shaft housing carrier bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

15. Tighten the upper front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

16. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

17. Install the steering gear boot.

    Courtesy of FORD MOTOR COMPANY

18. 1. Position back the steering column shaft U-joint to the steering gear.
    2. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

       Install a new steering column shaft bolt.

       Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Remove the holding device from the steering wheel.

    Courtesy of FORD MOTOR COMPANY

    4x2/4x4

20. Tighten the LH engine mount-to-frame bolts.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

21. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    Courtesy of FORD MOTOR COMPANY

22. • Apply threadlock to the stud threads prior to installation.

      Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    • NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.

      Install the engine mount studs.

      Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

23. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque: 111 lb.ft (150 Nm)

    Courtesy of FORD MOTOR COMPANY

24. • Remove and discard the transmission mount-to-crossmember nuts.
    • Install new transmission mount-to-crossmember nuts.

      Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

25. Install the new RH catalytic converter-to-exhaust manifold nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Install the new LH catalytic converter-to-exhaust manifold nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

27. • Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
    • Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 30 lb.ft (40 Nm)

    • Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

    4x4

28. Install the front driveshaft. Refer to: Front Driveshaft .
29. Install the LH heat shield and the bolts.

    Torque: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

    4x2/4x4

30. If equipped, install the skid plate and the bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

31. If equipped, install the underbody shield and bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

32. If equipped, install the transmission housing cover and the bolts

    Torque: 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

33. Start and check the exhaust system for leaks.
