Crankshaft Rear Seal: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

Remove the flexplate. Refer to: Flexplate .
Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.

Courtesy of FORD MOTOR COMPANY
Disconnect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the CKP sensor.

Courtesy of FORD MOTOR COMPANY
Remove oil pan-to-crankshaft rear seal bolts.

Courtesy of FORD MOTOR COMPANY

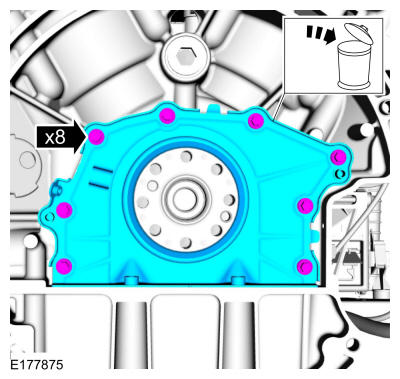

- Remove the bolts and the crankshaft rear seal.
- Discard the crankshaft rear seal.
Courtesy of FORD MOTOR COMPANY

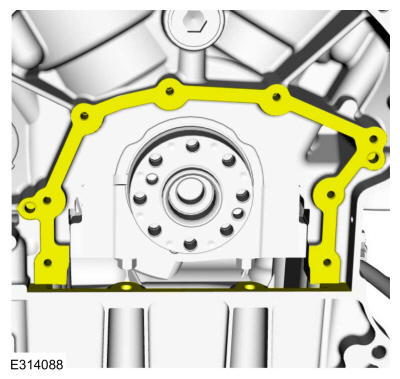

Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
