Crankshaft Rear Seal: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

Apply 9 mm (0.354 in) bead of silicone sealant at the T-joints.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

Apply a 4.5 mm (0.177 in) bead of Motorcraft® High Performance Engine RTV Silicone on the break edge between the mating surface and the step chamfer.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
Lubricate the crankshaft with clean engine oil.

Courtesy of FORD MOTOR COMPANY

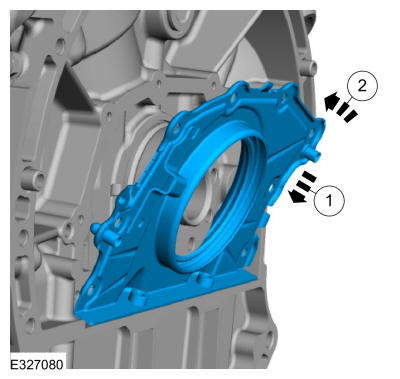

1. Install the crankshaft rear seal retainer at an angle above the oil pan flange to avoid scraping off the sealer.
2. NOTE: Inspect and ensure that the crankshaft rear seal lip is not rolled before proceeding to step 5.

  Tilt the seal retainer up and onto the rear of the cylinder block.
Courtesy of FORD MOTOR COMPANY

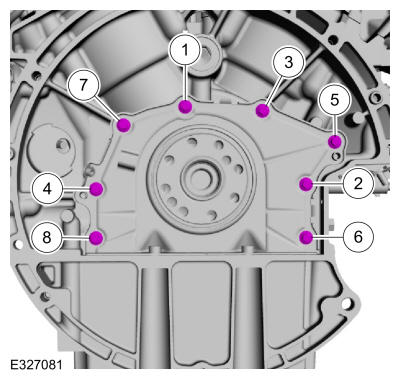

Install the bolts and tighten in sequence shown.
Torque: 89 lb.in (10 Nm)

Fig 1: Crankshaft Rear Seal Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install oil pan-to-crankshaft rear seal bolts.
Torque:Stage 1: 89 lb.in (10 Nm); Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY

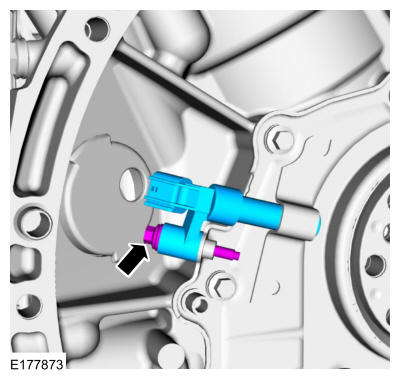

Install the CKP sensor and the bolt.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

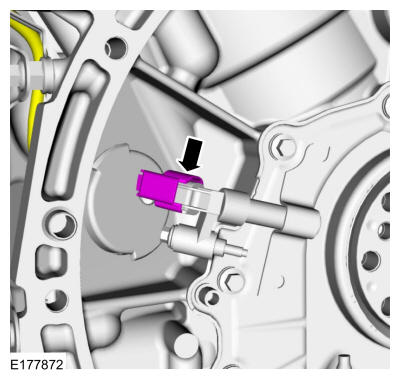

Connect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Inspect the engine block dowels. If the dowels are damaged or missing, install new engine block dowels.

Courtesy of FORD MOTOR COMPANY
Inspect the ignition pulse ring for damage. If the ignition pulse ring has been dropped or has any visual damage, it must be replaced.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the crankshaft ignition pulse ring is aligned with the inset hole on the crankshaft flange.

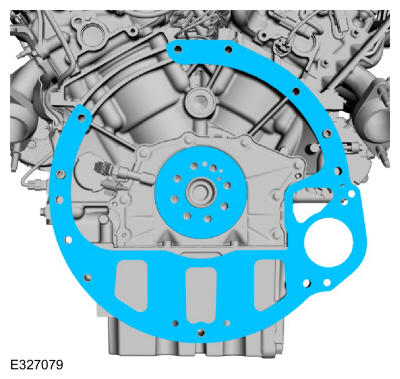

Install the engine-to-transmission spacer plate and the crankshaft sensor ring.

Courtesy of FORD MOTOR COMPANY
Install the flexplate. Refer to: Flexplate .
Road test the vehicle.
