Oil Flow Diagram

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

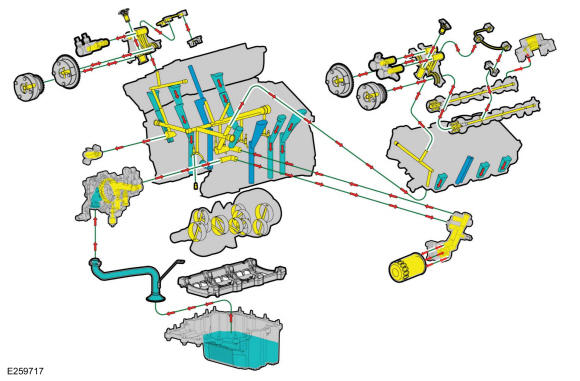

GFD552983Courtesy of FORD MOTOR COMPANY
Item Description
Yellow High pressure oil flow
Blue Oil return/low pressure oil flow
