Transmission Fluid Auxiliary Pump: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: It is not necessary to remove the transmission fluid filter to remove the transmission fluid auxiliary pump.

Remove the transmission fluid pan and gasket. Refer to: Transmission Fluid Pan, Gasket and Filter . Refer to: Transmission Fluid Pan, Gasket and Filter - 3.0L Power Stroke Diesel .
Remove the bolt and the transmission fluid auxiliary pump tube.

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid auxiliary pump tube seal.

Courtesy of FORD MOTOR COMPANY
Disconnect the transmission fluid auxiliary pump.

Courtesy of FORD MOTOR COMPANY
NOTE: A short 1/4" drive T-30 socket is required to remove the rear pump bolt.

NOTE: The fluid auxiliary pump may need to be removed from the RH side of the vehicle to clear the exhaust system and fluid filter.

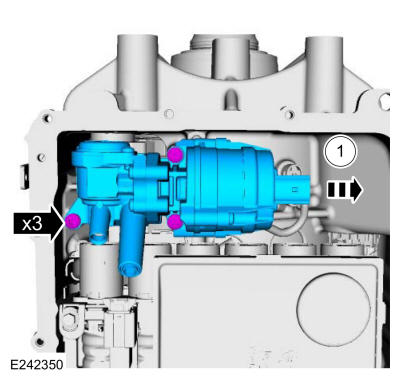

Remove the bolts and the transmission fluid auxiliary pump.
1. If necessary, remove the fluid auxiliary pump towards the RH side.

Courtesy of FORD MOTOR COMPANY
