Transmission Fluid Auxiliary Pump: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

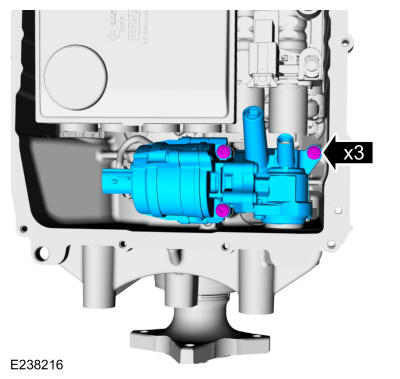

Install the transmission fluid auxiliary pump and loosely install the bolts.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid auxiliary pump tube seal.

Courtesy of FORD MOTOR COMPANY
Inspect the transmission fluid auxiliary pump tube O-ring.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid auxiliary pump tube and loosely install the bolt.

Courtesy of FORD MOTOR COMPANY
1. Transmission fluid auxiliary pump bolts
  Torque: 97 lb.in (11 Nm)
2. Transmission fluid auxiliary pump tube bolt
  Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

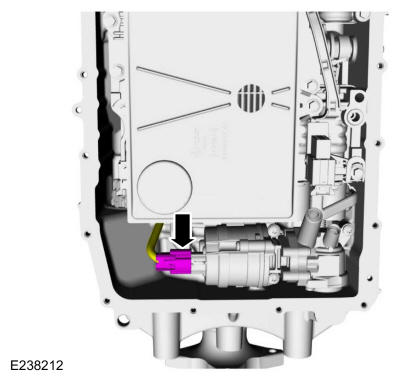

Connect the transmission fluid auxiliary pump electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid pan and gasket. Refer to: Transmission Fluid Pan, Gasket and Filter . Refer to: Transmission Fluid Pan, Gasket and Filter - 3.0L Power Stroke Diesel .
