Transmission Control Module (TCM): Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Keep the TCM electrical connector straight when connecting it or damage the connector terminals can occur.

    • Position the TCM in place and install the nuts.

      Torque: 80 lb.in (9 Nm)

    • Connect the TCM electrical connector and slide the lock tab in to lock the connector.

    • Attach the TCM wiring harness retainer.

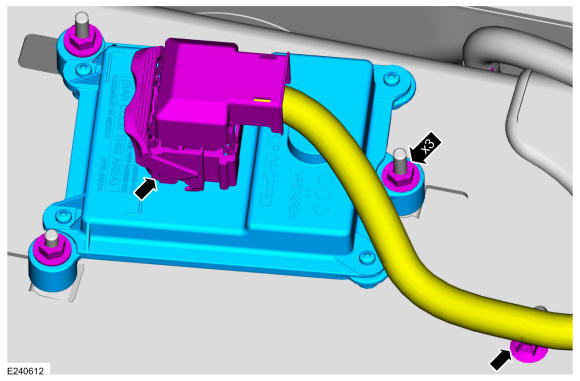

    GFD558945Courtesy of FORD MOTOR COMPANY
  2. Install the TCM shield and retainers.

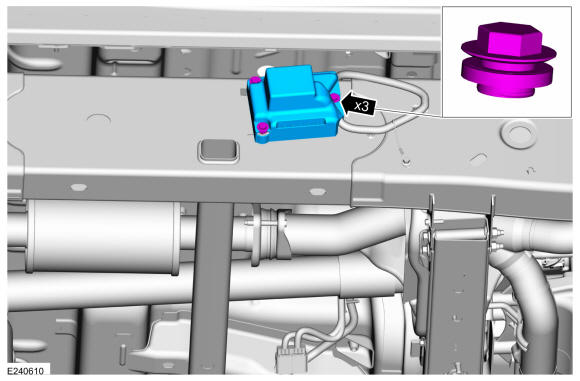

    GFD558944Courtesy of FORD MOTOR COMPANY
  3. Restore the module configuration. Carry out the module configuration restore steps of the PMI procedure. Refer to: Module Programming .
  4. Using the scan tool, download the solenoid body strategy. Refer to: Transmission Strategy Download .
