Transmission - 3.3L Duratec-V6: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the following items:

    1. Remove the starter motor assembly. Refer to: Starter Motor .
    2. Remove the transmission fluid heat exchanger. Refer to: Transmission Fluid Heat Exchanger .
    3. Remove the rear driveshaft assembly. Refer to: Rear Driveshaft .

    Four-Wheel Drive (4WD) vehicles

  3. Remove the retainers and heatshield.
  4. Remove the front driveshaft assembly. Refer to: Front Driveshaft .
    GFD558846Courtesy of FORD MOTOR COMPANY
  5. Remove the bolt and the LH isolator cap.
    GFD558847Courtesy of FORD MOTOR COMPANY
  6. Remove and discard the RH and LH transmission support insulator bolts (W718353).
    GFD558848Courtesy of FORD MOTOR COMPANY

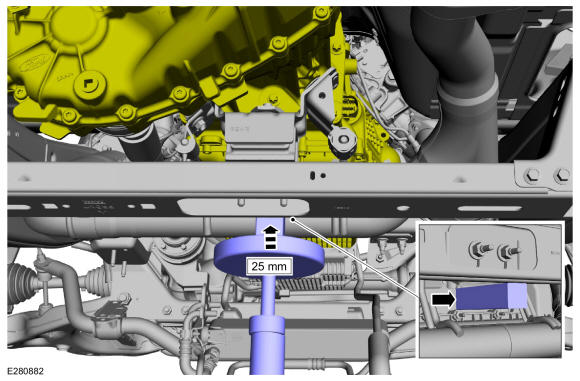

  7. Using an adjustable stand and a wooden block, raise the rear of the transmission. Use the General Equipment: Vehicle/Axle StandsUse the General Equipment: Wooden Block
    GFD558849Courtesy of FORD MOTOR COMPANY
  8. NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.
    NOTE: Note the location of the bolts and studbolts for assembly.

    Remove the bolts and the transmission fluid pan.

    GFD558850Courtesy of FORD MOTOR COMPANY
  9. NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

    Install the transmission fluid pan and the bolts.

    GFD558850Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

  10. Remove the retainers and heatshield.
    GFD558846Courtesy of FORD MOTOR COMPANY
  11. Remove and discard the stabilizer bar bracket nuts and allow the stabilizer bar to swing downward.
    GFD558851Courtesy of FORD MOTOR COMPANY
  12. Position an adjustable stand and a wooden block on the rear of the transmission. Use the General Equipment: Wooden BlockUse the General Equipment: Vehicle/Axle Stands
    GFD558852Courtesy of FORD MOTOR COMPANY
  13. Remove the bolts and raise the rear of the transmission. Use the General Equipment: Wooden BlockUse the General Equipment: Vehicle/Axle Stands
    GFD558853Courtesy of FORD MOTOR COMPANY
  14. NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.
    NOTE: Note the location of the bolts and studbolts for assembly.

    Remove the bolts and the transmission fluid pan.

    GFD558850Courtesy of FORD MOTOR COMPANY
  15. NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

    Install the transmission fluid pan and the bolts.

    GFD558850Courtesy of FORD MOTOR COMPANY
  16. NOTE: It is not necessary to torque the transmission mount bolts at this time.

    Lower the rear of the transmission and install the bolts. Use the General Equipment: Wooden BlockUse the General Equipment: Vehicle/Axle Stands

    GFD558854Courtesy of FORD MOTOR COMPANY

    All vehicles

  17. Remove the nut and release the retainer, position aside the transmission fluid cooler tubes.
    GFD558855Courtesy of FORD MOTOR COMPANY
  18. NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

    Using a high-lift transmission jack, support the transmission. Use the General Equipment: Transmission Jack

    GFD558856Courtesy of FORD MOTOR COMPANY
  19. Remove the LH catalytic converter. Refer to: Catalytic Converter LH .
  20. Remove the transmission support insulator. Refer to: Transmission Support Insulator .
  21. Remove the bolts from the catalytic converter flange to the muffler inlet pipe.
    GFD558857Courtesy of FORD MOTOR COMPANY
  22. Disconnect the electrical connectors and detach the wire clips.
    GFD558858Courtesy of FORD MOTOR COMPANY
  23. NOTE: Clean all exhaust connections before reassembly.

    Remove and discard the catalytic converter nuts and remove the catalytic converter. Discard the gasket.

    GFD558859Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

  24. Remove the fuel line bracket bolt and push pin retainer.
    GFD558860Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  25. Remove the fuel line bracket bolt and push pin retainer, disconnect the transfer case vent tube.
    GFD558788Courtesy of FORD MOTOR COMPANY
    1. Disconnect the transfer case electrical connector.
    2. Remove the wiring harness retainer and position aside.
    GFD558861Courtesy of FORD MOTOR COMPANY

    All vehicles

  27. NOTE: Do not pull on the wire harness to disconnect the electrical connector or damage to the electrical connector will occur.

    1. Slide the lock tab.
    2. Rotate lever to disconnect the transmission electrical connector.
    3. Detach the retainer from the transmission.
    4. Remove the bolt and position aside the wiring harness.

    GFD558862Courtesy of FORD MOTOR COMPANY
  28. Remove the pin-type retainers and the access cover.
    GFD558863Courtesy of FORD MOTOR COMPANY
  29. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    1. Index mark one stud and the flexplate for assembly reference.
    2. Remove and discard the torque converter nuts.

    GFD558864Courtesy of FORD MOTOR COMPANY
  30. Remove the lower bellhousing bolt.
    GFD558865Courtesy of FORD MOTOR COMPANY
  31. Remove the RH side bellhousing bolts.
    GFD558866Courtesy of FORD MOTOR COMPANY
  32. Remove the top bellhousing bolts and position aside the bracket.
    GFD558867Courtesy of FORD MOTOR COMPANY
  33. Remove the LH bellhousing bolts.
    GFD558868Courtesy of FORD MOTOR COMPANY
  34. Slide the transmission back enough to install the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD558869Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

  35. Using the high-lift transmission jack, remove the transmission from the vehicle. Use the General Equipment: Transmission Jack
    GFD558870Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

    1. Make sure the transmission is securely fastened to the transmission jack.
    2. Slide the transmission towards the rear of the vehicle.
    3. Tilt the front of the transmission down.
    4. Remove the transmission from the vehicle.
    GFD558871Courtesy of FORD MOTOR COMPANY
  37. If the transmission is to be overhauled or if installing a new or re-manufactured transmission, remove and discard the bolts and separate the transfer case from the transmission.
    GFD558872Courtesy of FORD MOTOR COMPANY

    All vehicles

  38. NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

    If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carry out the transmission fluid cooler backflushing and cleaning procedure. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning - Vehicles With: Transmission Fluid Heat Exchanger .
