Transmission - 3.3L Duratec-V6: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Prior to installing a new transmission or an overhauled transmission with a new main control, record the solenoid strategy identification tag. If a new main control was installed, install the replacement solenoid body tag over the original identification tag.

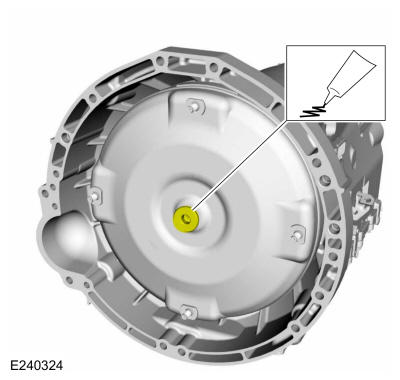

  2. NOTE: Prior to installation of the transmission, lubricate the torque converter pilot hub or damage to the torque converter or the engine crankshaft can occur.

    Lubricate the torque converter pilot hub with multi-purpose grease.

    Material

    : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD558873Courtesy of FORD MOTOR COMPANY

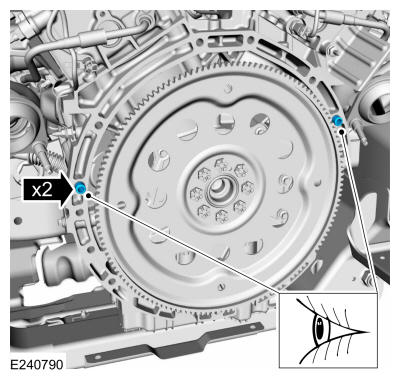

  3. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

    If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

    GFD558874Courtesy of FORD MOTOR COMPANY

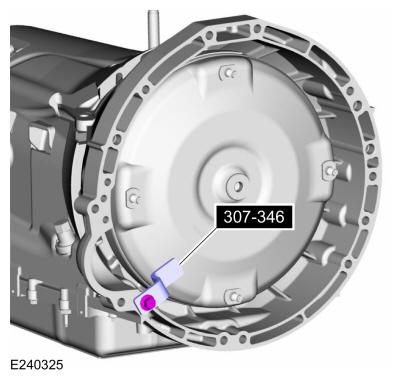

  4. Install the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD558875Courtesy of FORD MOTOR COMPANY

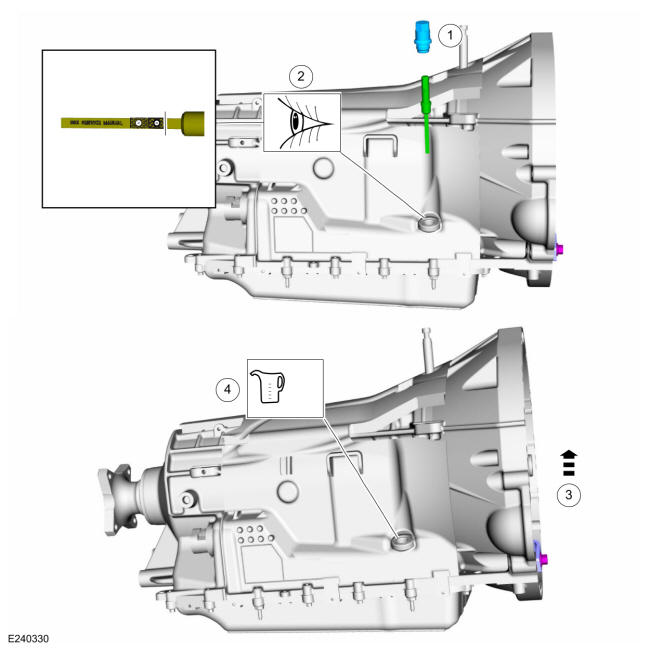

  5. NOTE: If transmission is being replaced, remove the transmission fluid fill plug and verify that the transmission is filled with transmission fluid.
    NOTE: If transmission was disassembled, add transmission fluid to the transmission.
    NOTE: Rear Wheel Drive (RWD) shown, Four-Wheel Drive (4WD) similar.

    1. Remove the transmission fluid fill plug transmission fluid level indicator assembly.
    2. Verify transmission is filled with transmission fluid.
    3. Slightly tilt the transmission rearward.
    4. If the transmission was disassembled, add 12.30L (13 qt) of transmission fluid to the transmission through the transmission fluid fill hole.

      Material

      : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    • Loosely install the transmission fluid plug when finished.

    GFD558804Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

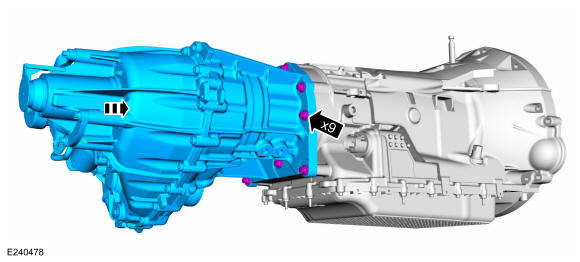

  6. If removed, install the transfer case and the new bolts.

    • Tighten the bolts evenly in a star pattern.

      Torque: 150 lb.in (17 Nm)

    GFD558876Courtesy of FORD MOTOR COMPANY

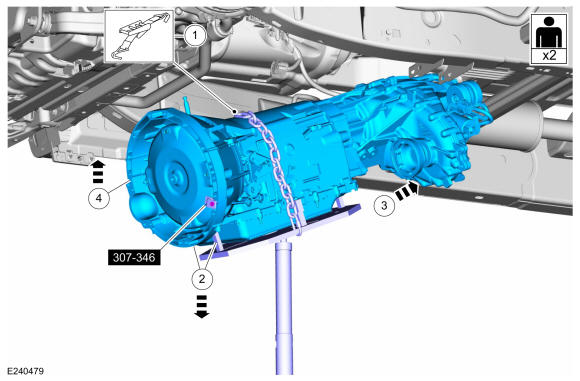

  7. NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

    Using a high-lift transmission jack, support the transmission.

    1. Make sure the transmission is securely fastened to the transmission jack. Use the General Equipment: Transmission Jack
    2. Tilt the front of the transmission down.
    3. Slide the transmission towards the rear of the vehicle.
    4. Raise the front of the transmission into a horizontal position.

    GFD558877Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

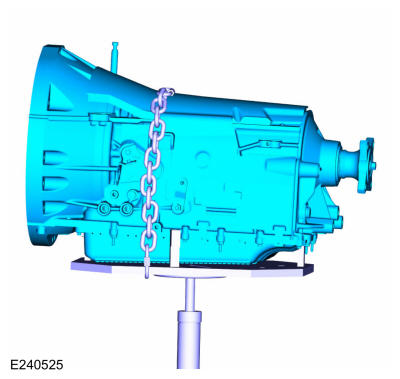

  8. NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

    Using a high-lift transmission jack, position the transmission in the vehicle. Use the General Equipment: Transmission Jack

    GFD558870Courtesy of FORD MOTOR COMPANY

    All vehicles

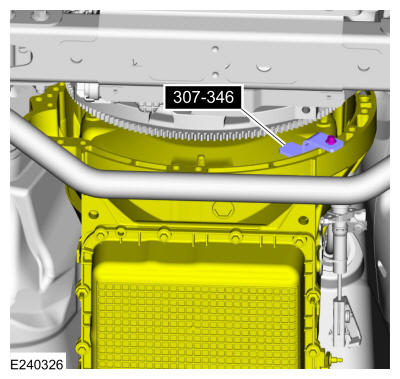

  9. Remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD558869Courtesy of FORD MOTOR COMPANY

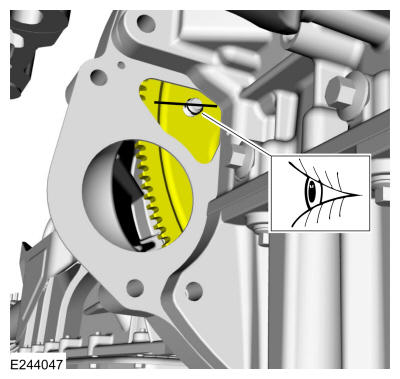

  10. Align the index-mark made during removal.
    GFD558878Courtesy of FORD MOTOR COMPANY

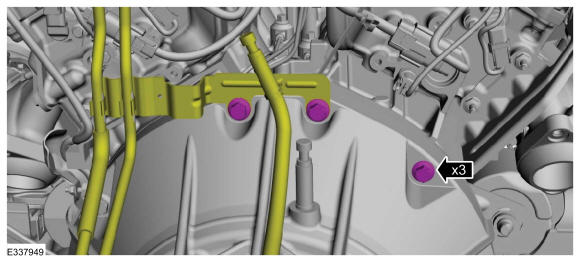

  11. NOTE: Make sure the torque converter is fully seated in the transmission before aligning the transmission to the engine.
    NOTE: With the transmission in a horizontal position, move it toward the engine and position it on the dowel pins.

    Position the bracket and install the top bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD558867Courtesy of FORD MOTOR COMPANY

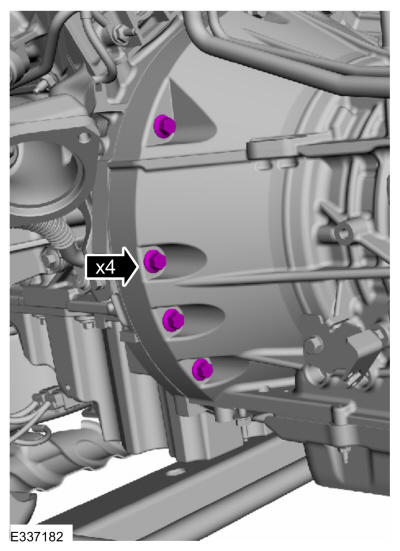

  12. Install the LH bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD558868Courtesy of FORD MOTOR COMPANY

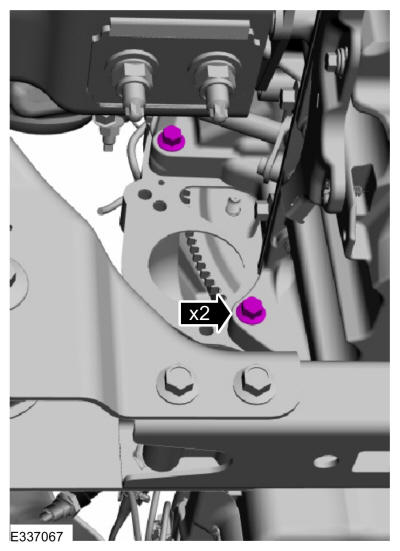

  13. Install the RH bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD558866Courtesy of FORD MOTOR COMPANY

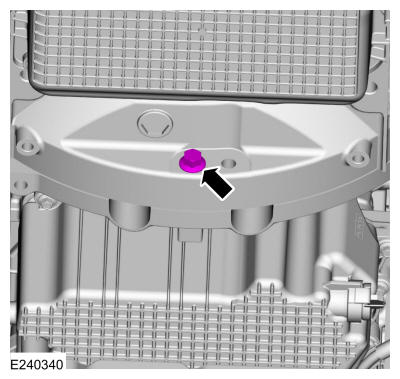

  14. Install the lower bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD558865Courtesy of FORD MOTOR COMPANY

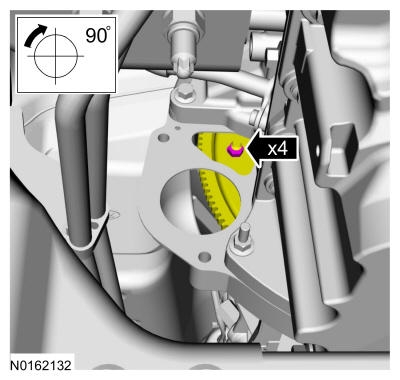

  15. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Install the new torque converter nuts.

    Torque: 35 lb.ft (48 Nm)

    GFD558879Courtesy of FORD MOTOR COMPANY
  16. Install the access cover and the pin-type retainers.
    GFD558863Courtesy of FORD MOTOR COMPANY

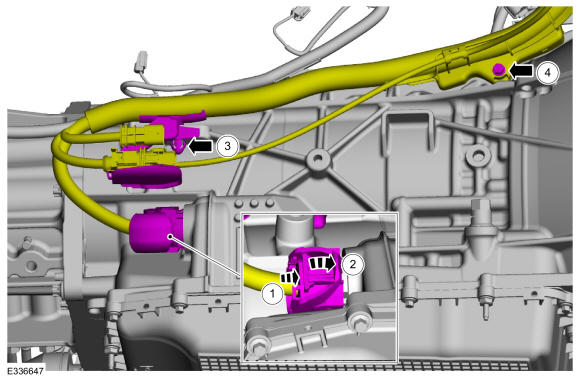

  17. NOTE: Do not pull on the wire harness to disconnect the electrical connector or damage to the electrical connector will occur.

    1. Rotate lever to connect the transmission electrical connector.
    2. Slide the lock tab.
    3. Attach the retainer to the transmission.
    4. Position back the wiring harness and install the bolt.

    GFD558809Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

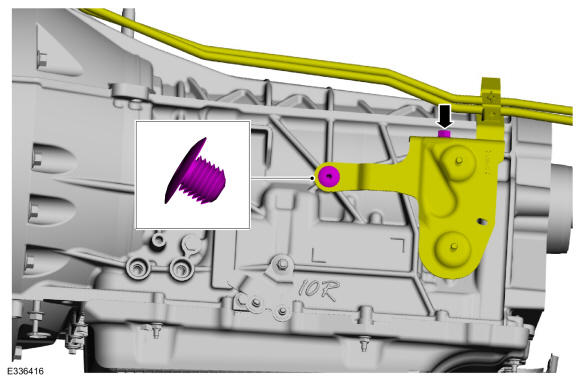

  18. Remove the fuel line bracket bolt and push pin retainer.

    Torque: 26 lb.ft (35 Nm)

    GFD558860Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

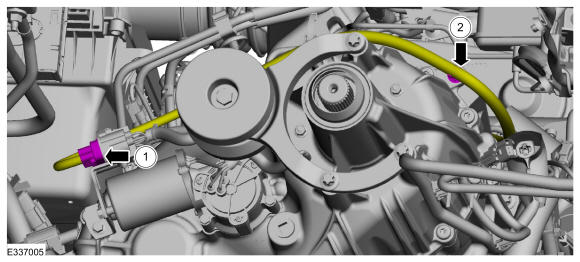

    1. Connect the transfer case electrical connector.
    2. Position the wiring harness and install the retainer.
    GFD558861Courtesy of FORD MOTOR COMPANY

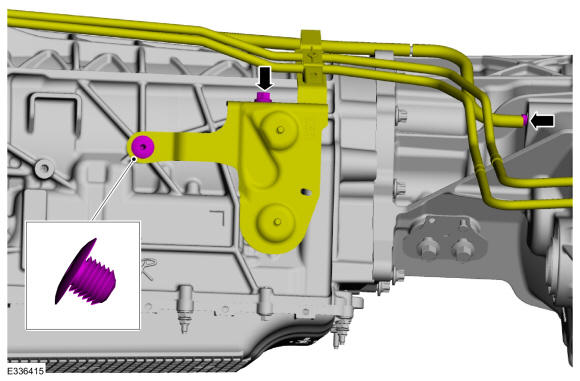

  20. Connect the transfer case vent tube, install the push pin retainer and the fuel line bracket bolt.

    Torque: 26 lb.ft (35 Nm)

    GFD558788Courtesy of FORD MOTOR COMPANY

    All vehicles

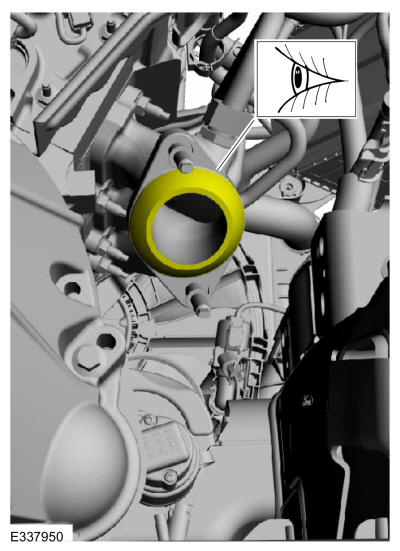

  21. Make sure the exhaust sealing surface is clean.
    GFD558880Courtesy of FORD MOTOR COMPANY

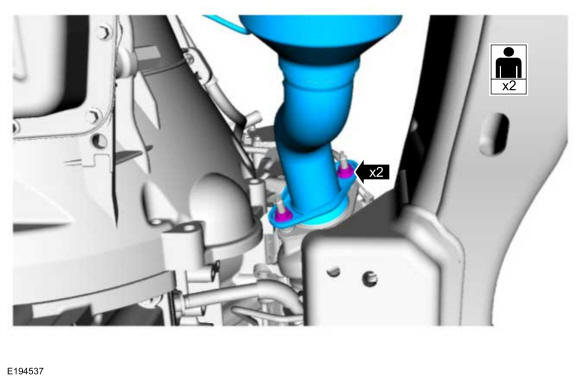

  22. NOTE: Loosely install the new RH catalytic converter nuts. Do not tighten at this time.

    Position the RH catalytic converter in the vehicle. Loosely install the new RH catalytic converter nuts.

    GFD558881Courtesy of FORD MOTOR COMPANY
  23. Connect the electrical connectors and attach the wire clips.
    GFD558858Courtesy of FORD MOTOR COMPANY
  24. Install the transmission support insulator. Refer to: Transmission Support Insulator .
  25. Install the LH catalytic converter. Refer to: Catalytic Converter LH .

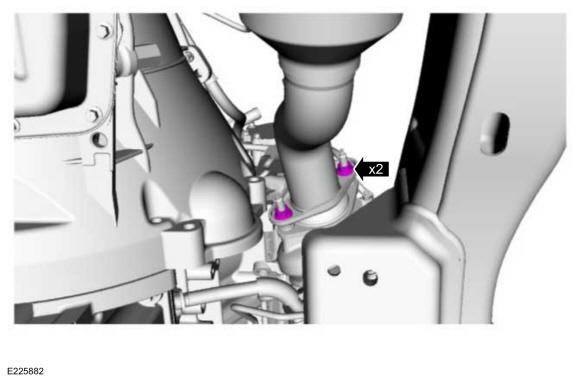

  26. NOTE: Evenly tighten the catalytic converter nuts.

    Tighten the RH catalytic converter nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD558882Courtesy of FORD MOTOR COMPANY

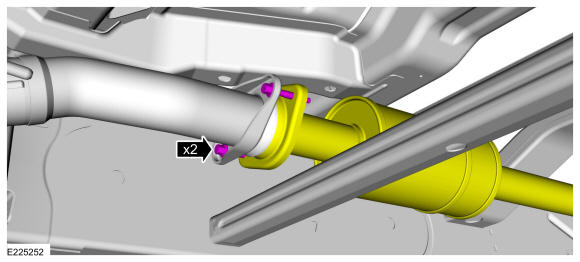

  27. Install the catalytic converter flange to the muffler inlet pipe bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD558857Courtesy of FORD MOTOR COMPANY

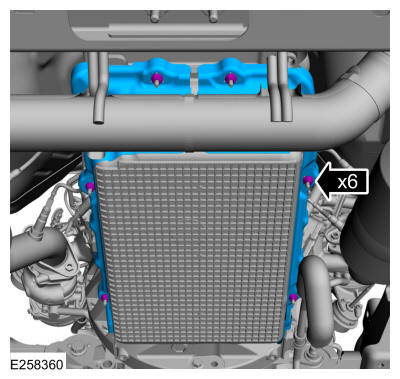

  28. Install the retainers and heatshield.

    Torque: 80 lb.in (9 Nm)

    GFD558846Courtesy of FORD MOTOR COMPANY
  29. Install the rear driveshaft assembly. Refer to: Rear Driveshaft .

    Four-Wheel Drive (4WD) vehicles

  30. Install the front driveshaft assembly. Refer to: Front Driveshaft .
  31. Check the transfer case fluid level. Refer to: Transfer Case Draining and Filling .

    Rear Wheel Drive (RWD) vehicles

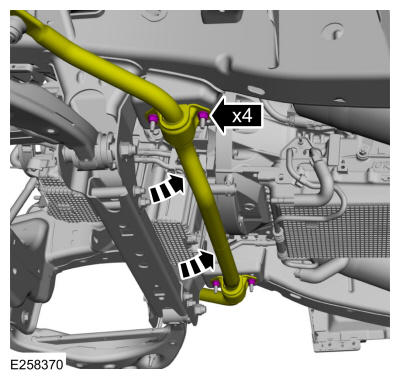

  32. Install the new stabilizer bar bracket nuts.

    Torque: 41 lb.ft (55 Nm)

    GFD558883Courtesy of FORD MOTOR COMPANY

    All vehicles

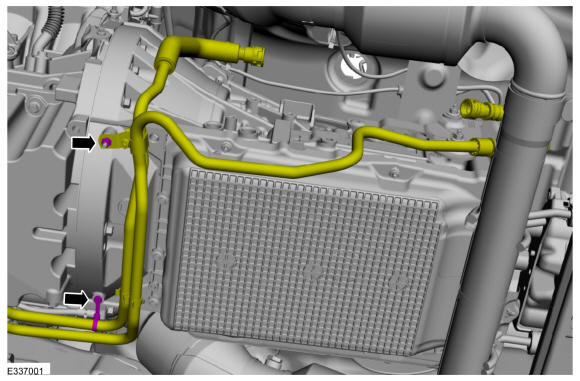

  33. Position back the transmission fluid cooler tubes, install the nut and the retainer.

    Torque: 124 lb.in (14 Nm)

    GFD558855Courtesy of FORD MOTOR COMPANY
  34. Install the transmission fluid heat exchanger. Refer to: Transmission Fluid Heat Exchanger .
  35. NOTE: If equipped with a underbody splash shield, do not install the splash shield at this time.

    Install the starter motor assembly. Refer to: Starter Motor .

  36. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  37. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
  38. If a new transmission or a new main control was installed, the solenoid body strategy must be updated. Refer to: Transmission Strategy Download .
  39. If the transmission was overhauled, the adaptive drive cycle must be updated. Refer to: Adaptive Learning Drive Cycle .
  40. While driving the vehicle, use the scan tool to verify that the TFT has reached a temperature of 96.7 deg.C-102 deg.C (206 deg.F-215 deg.F). This will circulate the transmission fluid through the torque converter and the transmission fluid cooling system, eliminating any trapped air in the transmission fluid cooling system.
  41. Check the transmission fluid level Refer to: Transmission Fluid Level Check .
