Transmission - 3.0L Power Stroke Diesel: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the following items:
1. Remove the starter motor assembly. Refer to: Starter Motor .
2. Remove the rear driveshaft assembly. Refer to: Rear Driveshaft .
Remove the front driveshaft assembly. Refer to: Front Driveshaft .
Remove the transmission park manual release cable heat shield.

Courtesy of FORD MOTOR COMPANY
Disconnect the transmission park manual release cable from the manual control lever. Remove the nut, bolt and position aside the cable.

Courtesy of FORD MOTOR COMPANY

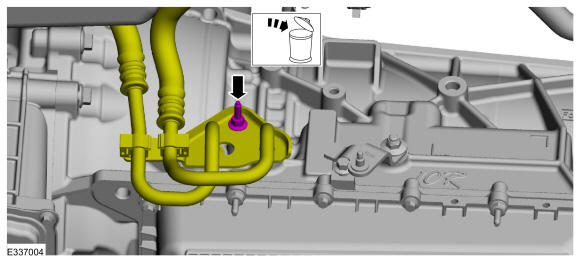

Remove and discard the bolt and position aside the transmission fluid cooler tubes.

Courtesy of FORD MOTOR COMPANY

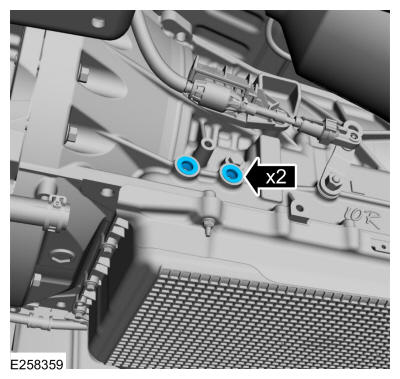

If the transmission fluid cooler tube seals or backing rings are stuck in the transmission case, remove the seals and backing rings.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and heatshield.

Courtesy of FORD MOTOR COMPANY
NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

NOTE: Note the location of the bolts and studbolts for assembly.

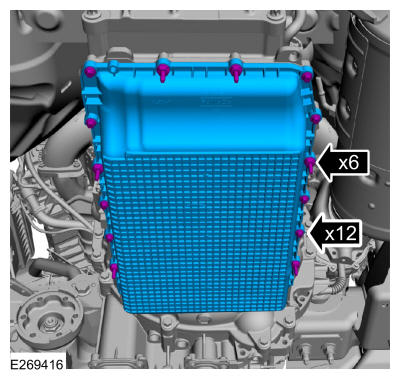

Remove the bolts, studbolts and the transmission fluid pan.

Courtesy of FORD MOTOR COMPANY
NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

Install the transmission fluid pan and the bolts.

Courtesy of FORD MOTOR COMPANY

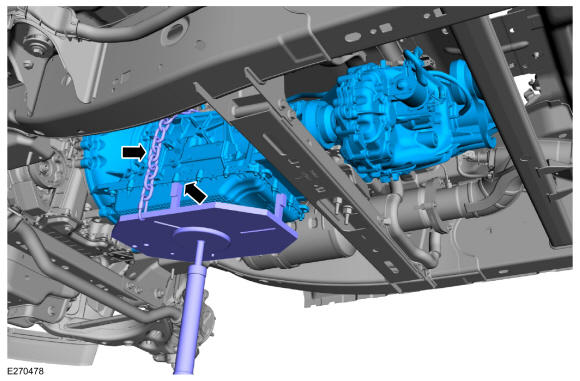

NOTE: Secure the transmission to the transmission jack with a safety strap.

NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

Using a high-lift transmission jack, support the transmission. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
Remove the transmission support insulator. Refer to: Transmission Support Insulator - 3.0L Power Stroke Diesel .
Disconnect the transfer case vent tube.

Courtesy of FORD MOTOR COMPANY
1. Disconnect the transfer case electrical connector.
2. Disconnect the transfer case electrical harness retainer.
Courtesy of FORD MOTOR COMPANY

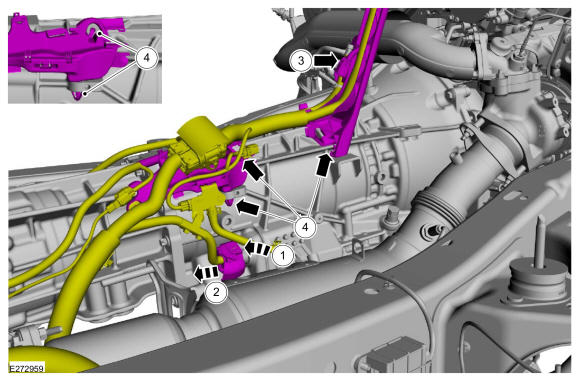

NOTE: Do not pull on the wire harness to disconnect the electrical connector or damage to the electrical connector will occur.
1. Slide the lock tab up and disconnect the transmission electrical connector.
2. Pull the transmission electrical connector out to disconnect.
3. Disconnect the transmission vent from the forward harness retainer.
4. Compress the locks and detach the retainers from the transmission and position the wiring harness aside.
Courtesy of FORD MOTOR COMPANY
Remove the access cover.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the access cover.

Courtesy of FORD MOTOR COMPANY

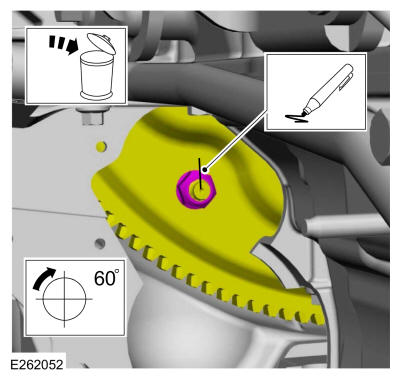

NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.
1. Index mark one stud and the flexplate for assembly reference.
2. Remove and discard the torque converter nuts.
Courtesy of FORD MOTOR COMPANY
Remove the LH bellhousing bolts.

Courtesy of FORD MOTOR COMPANY
Remove the lower bellhousing bolts.

Courtesy of FORD MOTOR COMPANY
Remove the RH side bellhousing bolts.

Courtesy of FORD MOTOR COMPANY
Slide the transmission back enough to install the special tool. Use Special Service Tool: 307-625 Fixture, Bench Mounting.

Courtesy of FORD MOTOR COMPANY

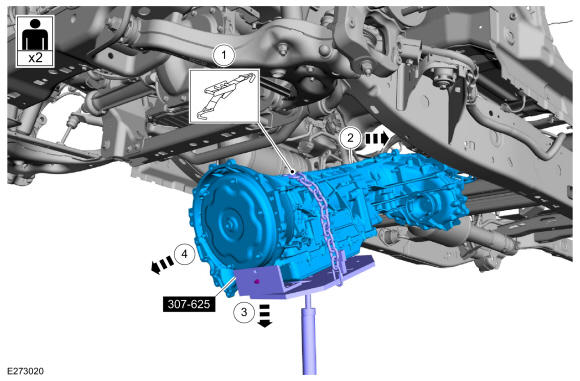

1. Make sure the transmission is securely fastened to the transmission jack. Use Special Service Tool: 307-625 Fixture, Bench Mounting.Use the General Equipment: Retaining StrapUse the General Equipment: Transmission Jack
2. Slide the transmission towards the rear of the vehicle.
3. Tilt the front of the transmission down.
4. Remove the transmission from the vehicle.
Courtesy of FORD MOTOR COMPANY

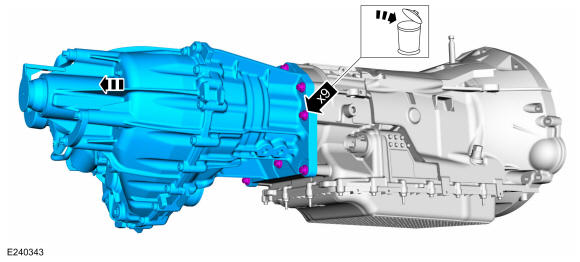

If the transmission is to be overhauled or if installing a new or re-manufactured transmission, remove and discard the bolts and separate the transfer case from the transmission.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carry out the transmission fluid cooler backflushing and cleaning procedure. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning - Vehicles With: Transmission Fluid Heat Exchanger .
