Torque Converter Seal: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

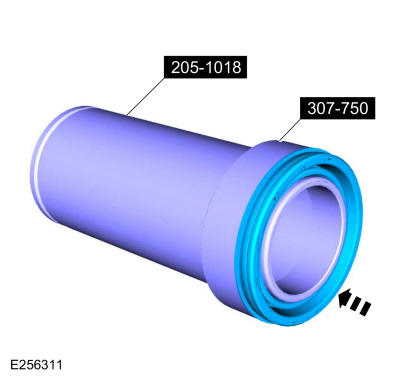

  1. Install the new torque converter hub seal on the special tools. Use Special Service Tool: 307-750 Installer, Converter Seal., 205-1018 Installation Tube.
    GFD558774Courtesy of FORD MOTOR COMPANY

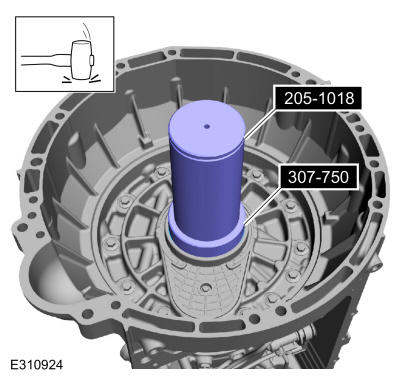

  2. Using the special tools, install the new torque converter hub seal. Use Special Service Tool: 307-750 Installer, Converter Seal., 205-1018 Installation Tube.
    GFD558775Courtesy of FORD MOTOR COMPANY

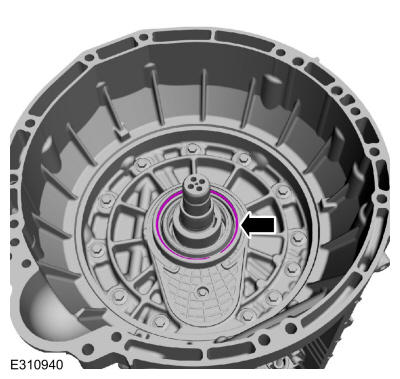

  3. Install the torque converter hub seal snap ring.
    GFD558776Courtesy of FORD MOTOR COMPANY

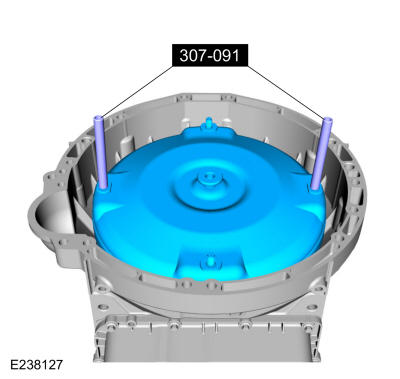

  4. Using the special tool, install the torque converter. Use Special Service Tool: 307-091 Handle, Torque Converter.
    GFD558771Courtesy of FORD MOTOR COMPANY

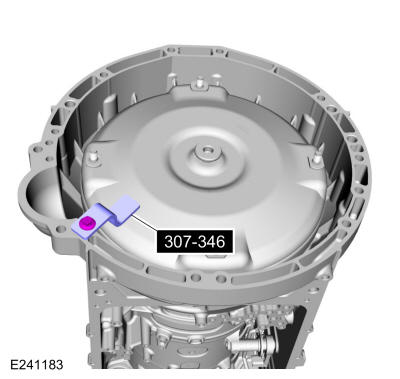

  5. Install the special tool to hold the torque converter. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD558777Courtesy of FORD MOTOR COMPANY
  6. Install the transmission assembly. Refer to: Transmission .
