Output Shaft Seal: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

    Rear Wheel Drive (RWD) vehicles

  2. Remove the rear driveshaft assembly. Refer to: Rear Driveshaft .

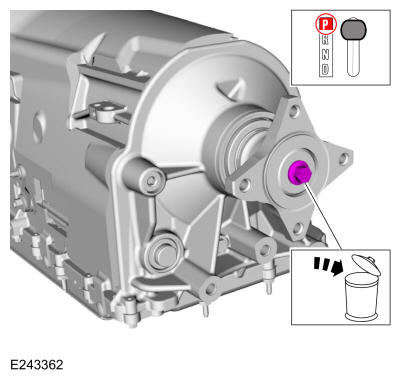

  3. Remove and discard the output shaft flange bolt (7N134).
    GFD558718Courtesy of FORD MOTOR COMPANY

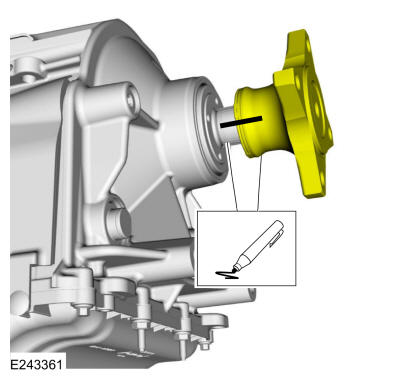

  4. Slide the output shaft flange back to index mark the output shaft to the flange.
    GFD558719Courtesy of FORD MOTOR COMPANY

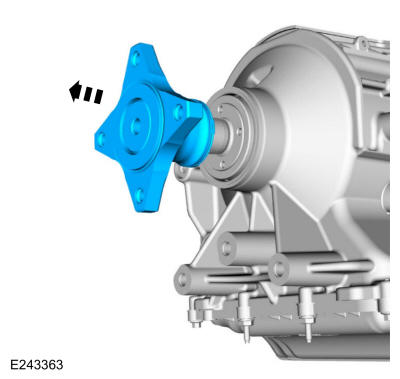

  5. Remove the output shaft flange.
    GFD558720Courtesy of FORD MOTOR COMPANY
  6. Remove the anti-ting ring.
    GFD558721Courtesy of FORD MOTOR COMPANY

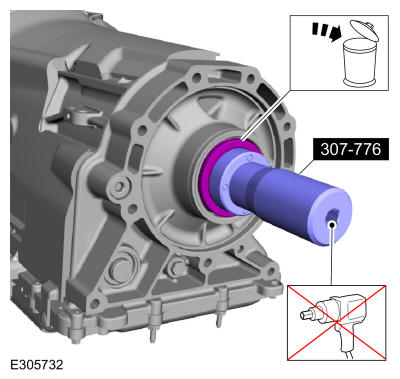

  7. Using the special tool, remove and discard the output shaft nut (7085). Use Special Service Tool: 307-776 Socket, Outputshaft Locknut.
    GFD558722Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  8. Remove the transfer case assembly. Refer to: Transfer Case .

    All vehicles

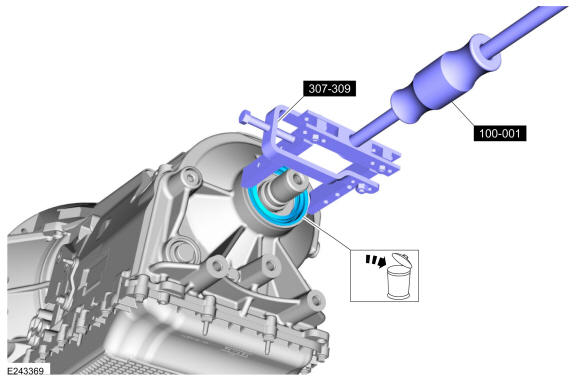

  9. Using the special tools, remove and discard the output shaft seal (7052). Use Special Service Tool: 307-309 Remover, Torque Converter Seal., 100-001 (T50T-100-A) Slide Hammer.
GFD558723Courtesy of FORD MOTOR COMPANY
