Intermediate Speed Sensor A (ISSA): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control valve body. Refer to: Main Control Valve Body .

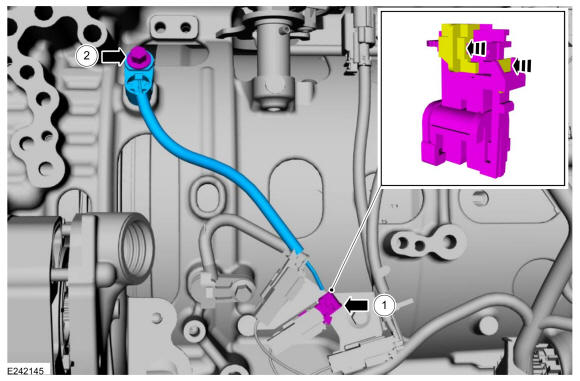

  2. Remove the intermediate speed sensor A.

    1. Slide the plastic lock to the unlocked position. While pressing the plastic tab, disconnect the electrical connector.
    2. Remove the bolt and the intermediate speed sensor A.

GFD558702Courtesy of FORD MOTOR COMPANY
