Transmission Line Pressure Test

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

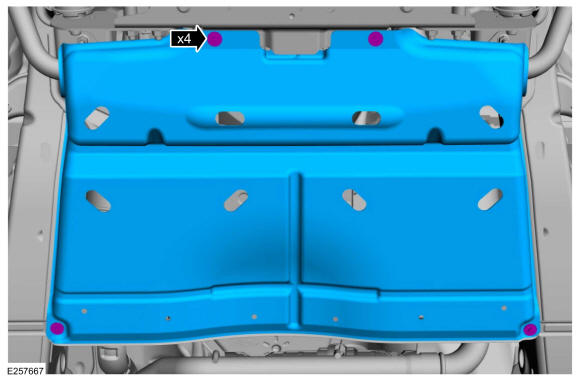

If equipped, remove the retainers and splash shield.

Courtesy of FORD MOTOR COMPANY

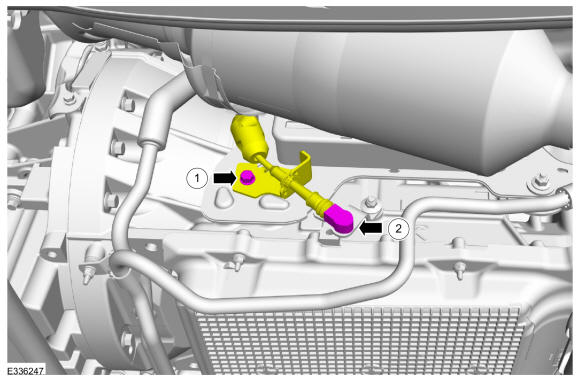

1. Disconnect the transmission park manual release cable from the transmission lever.
2. Remove and discard the bolt and position aside the cable and bracket.
Courtesy of FORD MOTOR COMPANY

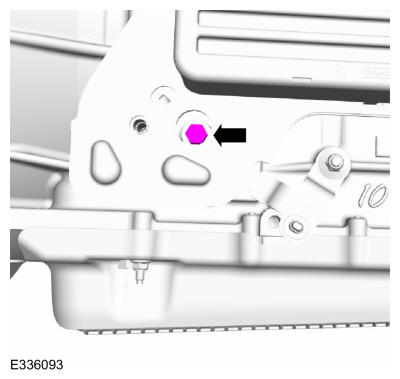

Remove the line pressure plug.

Courtesy of FORD MOTOR COMPANY

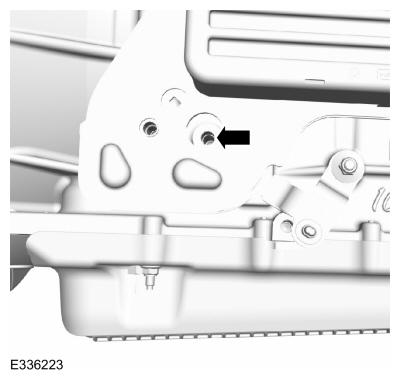

1. NOTE: The line pressure tap is an M10 X 1.00 thread. Do not use a National Pipe Thread (NPT) fitting when installing a pressure gauge. If a NPT fitting is used, damage to the transmission case will occur.

  Connect a Transmission Fluid Pressure Gauge with a M10 X 1.00 fitting.
2. Start the engine and check the line pressures. Refer to the Line Pressure Chart to determine if the line pressure is within specification. Refer to: Special Testing Procedures .
Courtesy of FORD MOTOR COMPANY
Install the line pressure plug.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the new transmission park manual release cable bracket bolt.
  Torque: 177 lb.in (20 Nm)
2. Connect the transmission park manual release cable to the transmission lever.
Courtesy of FORD MOTOR COMPANY
If equipped, install the splash shield and the retainers.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
