Steering Wheel Multifunction Switch: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
High series shown, others similar.
- Remove the driver airbag. REFER to: Driver Airbag .
-

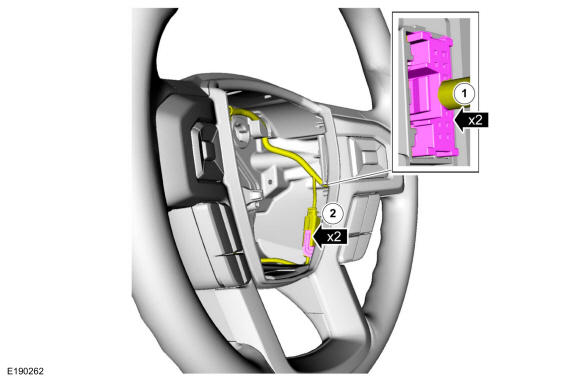

- On both sides, disconnect the electrical connector.
- On both sides, detach the wire harness from the bezel.

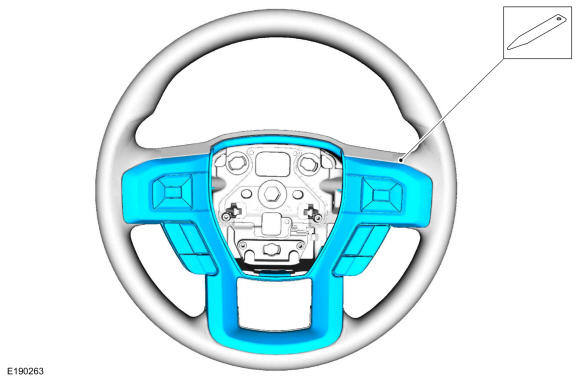

- Using a suitable flat-bladed tool, remove the steering wheel switch bezel.

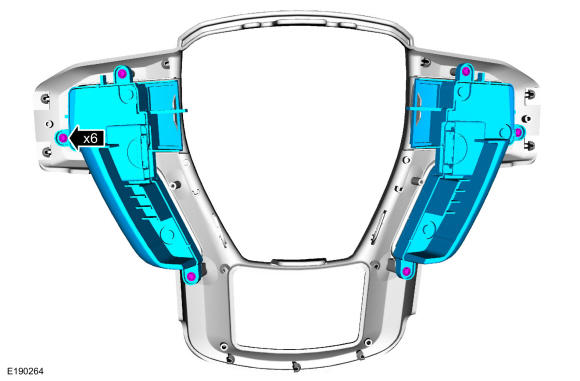

- Remove the screws and the steering wheel multifunction switches.
