Ignition Switch: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column shrouds. REFER to: Steering Column Shrouds .

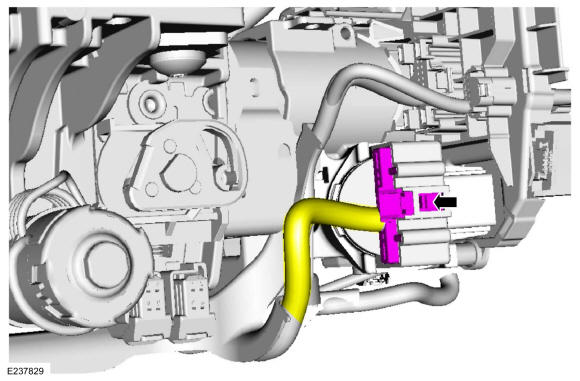

  2. Disconnect the ignition switch electrical connector.
    GFD201152Courtesy of FORD MOTOR COMPANY

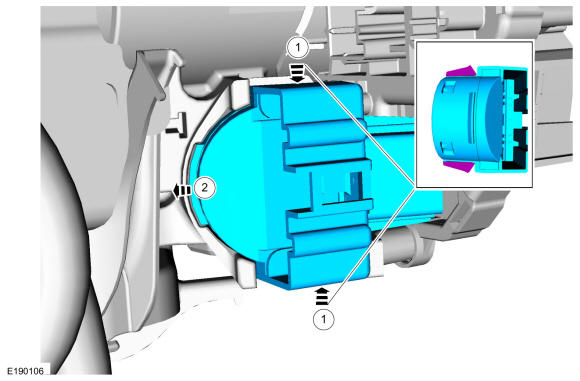

    1. Push in the ignition switch tabs.
    2. Remove the ignition switch.
GFD201153Courtesy of FORD MOTOR COMPANY
