Ignition Switch - Vehicles With: Keyless Vehicle System: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Lower the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY

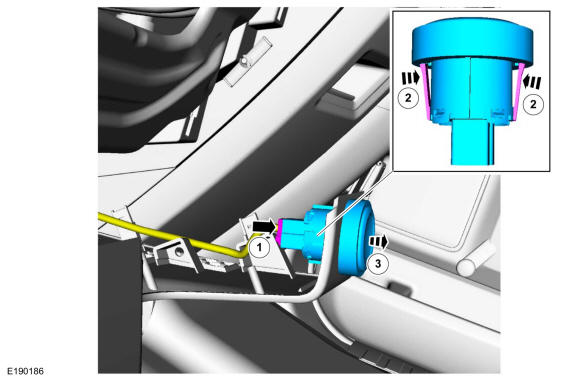

Remove the start/stop switch.
1. Disconnect the start/stop switch electrical connector.
2. Release the start/stop switch tabs.
3. Push the start/stop switch out of the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY
