Wastegate Control Actuator LH: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
NOTE:
The production turbocharger may have the upper jam nut welded to the wastegate control actuator question mark upper linkage lever as an anti-tamper feature.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the left front fender splash shield. Refer to: Fender Splash Shield .
-
NOTE: Make note of the orientation of the wastegate control actuator electrical connector, to aid in the proper installation.
Disconnect the wastegate control actuator electrical connector.

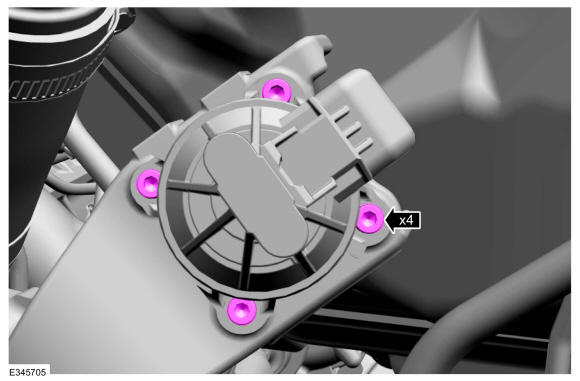

- Remove the bolts.
-
NOTE: Make note of orientation of the question mark upper linkage lever and the lower dog-bone linkage assembly, to aid in proper installation.

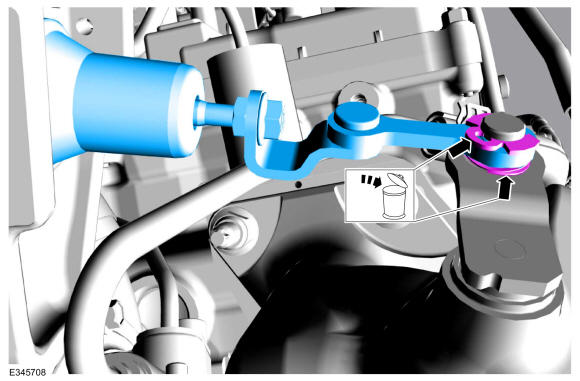

Remove and discard the E-clip, disconnect the dog-bone linkage lever from the wastegate lever arm, then remove the wastegate control actuator assembly from the turbocharger. Remove and discard the NVH wave washer.
