Turbocharger LH: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

NOTE: Special attention needs to be given to the sealing ports for the oil feed, the oil drain, and the coolant tubes, on turbocharged engines. The sealing ports must be totally clean and free from O-ring residue, have no damage to the sealing surface and the tubes to ensure that there are no leaks or repeat repairs.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
If equipped, remove the engine rear undershield. Refer to: Engine Rear Undershield .
If equipped, remove the bolts and the underbody skid plate.

Courtesy of FORD MOTOR COMPANY
Remove the left front fender splash shield. Refer to: Fender Splash Shield .
Remove the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
Remove the left charge air cooler intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Remove the catalytic converter LH. Refer to: Catalytic Converter LH .

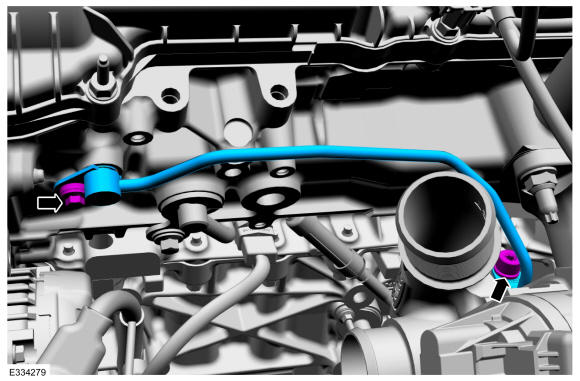

Remove the turbocharger coolant return tube bolt, loosen the spring clamp, then disconnect and remove the turbocharger coolant return tube. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

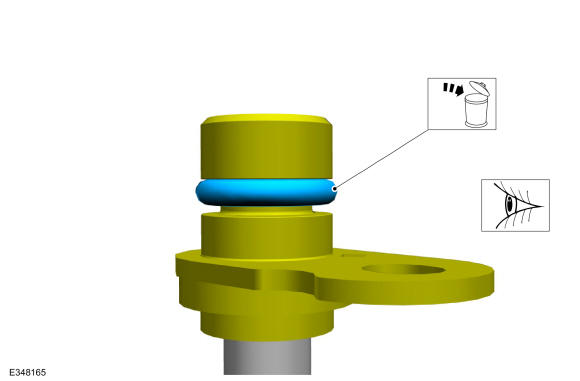

1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

  Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

  Material

  : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
2. Remove and discard the O-ring seal.
Courtesy of FORD MOTOR COMPANY
Detach the wire harness retainer, then disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the air tube bracket retainers, then remove the air tube bracket.

Courtesy of FORD MOTOR COMPANY
Remove the EGR tube retainers, then remove the EGR tube.

Courtesy of FORD MOTOR COMPANY
Remove and discard the EGR tube gaskets.

Courtesy of FORD MOTOR COMPANY
Remove the turbocharger oil supply tube bolts, then remove the turbocharger oil supply tube.

Courtesy of FORD MOTOR COMPANY

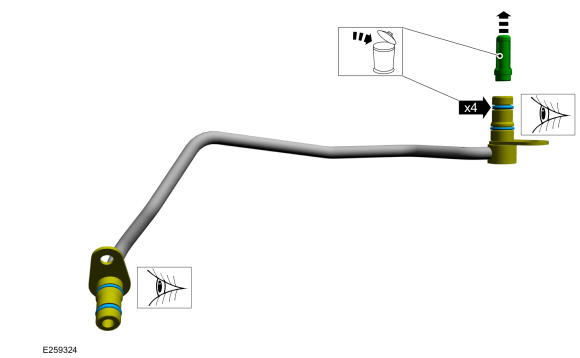

1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

  Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

  Material

  : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
2. Remove and discard the O-ring seals and the turbocharger oil supply tube oil filter.
Courtesy of FORD MOTOR COMPANY
Remove the turbocharger oil return tube bolts, then remove the tube.

Courtesy of FORD MOTOR COMPANY

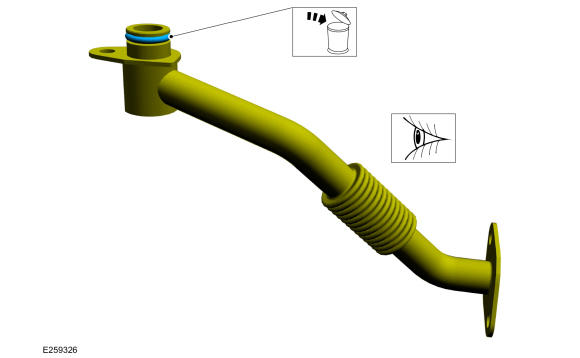

1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

  Inspect for blockage in the turbocharger tube. Check the tube, the sealing surfaces and the flange for flatness and damage. Use brake cleaner and a nylon brush to clean. Install new components as needed.

  Material

  : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

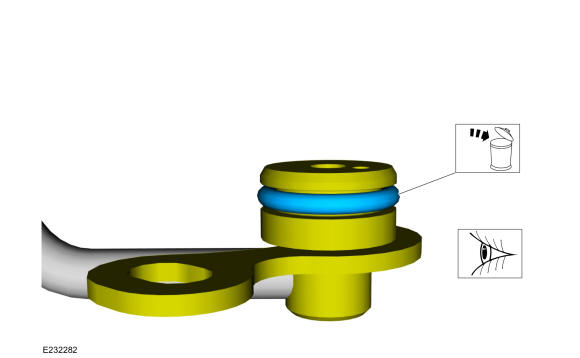

2. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

  Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

  Material

  : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
3. Remove and discard the O-ring seal.
Courtesy of FORD MOTOR COMPANY

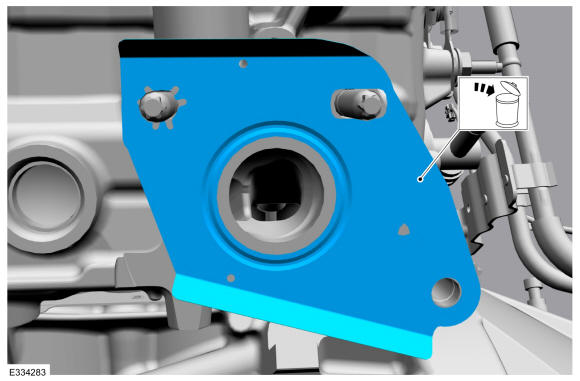

Remove and discard the oil return tube tube-to-engine block gasket.

Courtesy of FORD MOTOR COMPANY
Remove the turbocharger coolant supply tube bolt, disengage the tube from the engine block.

Courtesy of FORD MOTOR COMPANY

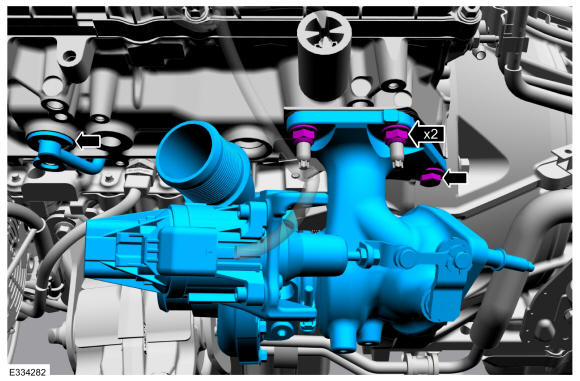

1. Remove the turbocharger coolant supply tube from the engine block while removing the turbocharger.
2. Remove the turbocharger retainers, then remove the turbocharger.
Courtesy of FORD MOTOR COMPANY
1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

  Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

  Material

  : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
2. Remove and discard the O-ring seal.
Courtesy of FORD MOTOR COMPANY
Remove and discard the turbocharger gasket.

Courtesy of FORD MOTOR COMPANY
Remove the turbocharger mounting studs if needed.

Courtesy of FORD MOTOR COMPANY
If needed remove the bolt, then remove the turbocharger coolant supply tube.

Courtesy of FORD MOTOR COMPANY
1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

  Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

  Material

  : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
2. If the turbocharger coolant supply tube was removed from the turbocharger, then remove and discard the O-ring seal.

Courtesy of FORD MOTOR COMPANY
