Turbocharger Coolant Supply Tube RH: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Install a new O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications
.
- Install a new O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications
.
-
-
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bores. Inspect the area for deep scratches and gouges. Install new components as needed.
Material
: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

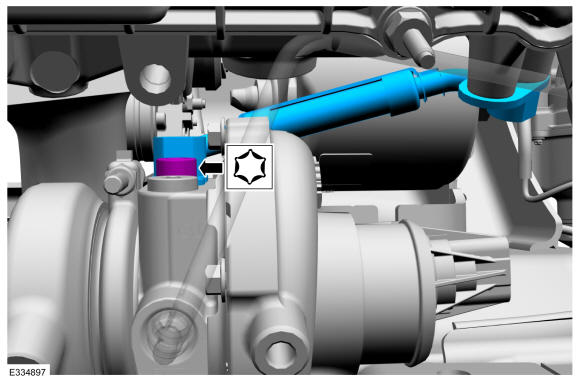

- Install the turbocharger coolant supply tube, then install and tighten the turbocharger coolant supply tube bolt.
Torque: 89 lb.in (10 Nm)
-
- Install and tighten the turbocharger coolant supply tube bolt.
Torque: 18 lb.ft (24 Nm)
-
NOTE: Frame removed for clarity.
Install the A/C compressor and bolts, then tighten the bolts in the sequence shown.
Torque: 18 lb.ft (25 Nm)
- Install the accessory drive belt, make sure the accessory drive belt is correctly seated on all pulleys.
-
NOTE: Frame removed for clarity.
Connect the electrical connectors and attach the wiring harness retainer.
- If equipped, install the secondary generator. Refer to: Generator - 2.7L EcoBoost (238kW/324PS) .
- Install the air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH .
- Install the right front fender splash shield. Refer to: Fender Splash Shield .
- Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
