Turbocharger Coolant Supply Tube LH: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Install a new O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications
.
- Install a new O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications
.
-
-
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube O-ring bores. Inspect the area for deep scratches and gouges. Install new components as needed.
Material
: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

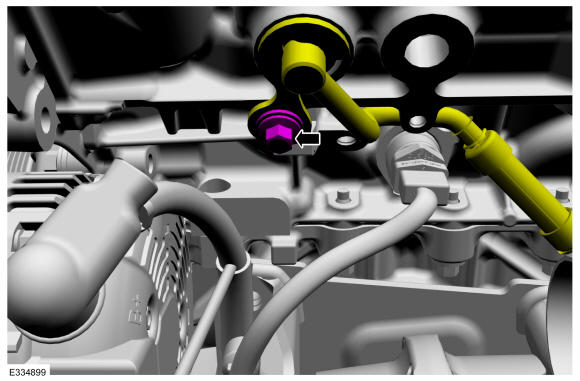

- Install the turbocharger coolant supply tube, then install and tighten the bolt.
Material
: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Torque: 89 lb.in (10 Nm)
-

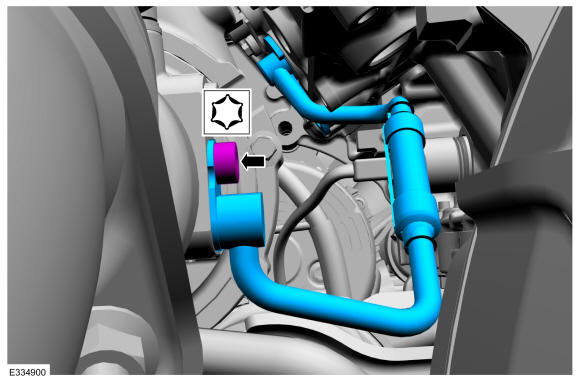

- Install and tighten the turbocharger coolant supply tube bolt.
Torque: 18 lb.ft (24 Nm)
- Install the new EGR tube gaskets.
- Install the EGR tube, then install and tighten the EGR tube retainers.
Torque: Tighten the nuts to : 89 lb.in (10 Nm) Tighten the bolts to : 89 lb.in (10 Nm)
- Install the air tube bracket, then install and the air tube bracket retainers.
Torque: Tighten the nut to : 53 lb.in (6 Nm) Tighten the bolt to : 53 lb.in (6 Nm)
- Install the left charge air cooler intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
- Install the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
- Install the left front fender splash shield. Refer to: Fender Splash Shield .
- If equipped, install the engine front undershield. Refer to: Engine Front Undershield .
- If equipped, install the engine rear undershield. Refer to: Engine Rear Undershield .
- Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
