Cylinder Head to Coolant Outlet Connector Hose Assembly: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Left-hand (LH) side

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the LH front wheel and tire. Refer to: Wheel and Tire .
Remove the LH fender splash shields. Refer to: Fender Splash Shield .

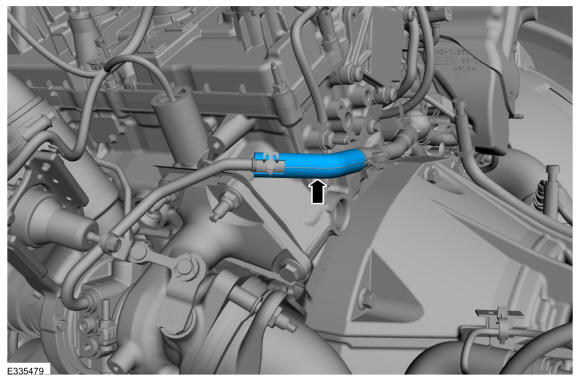

Remove the heat sleeve from the coolant hose.

Courtesy of FORD MOTOR COMPANY

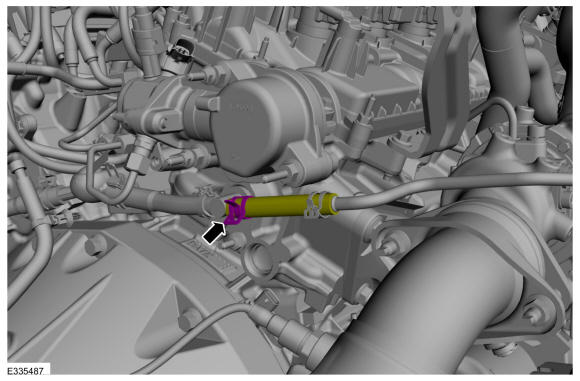

Release the clamp and disconnect the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
NOTE: Do not pry the cylinder head to coolant outlet connector behind the fastener bracket. If necessary use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

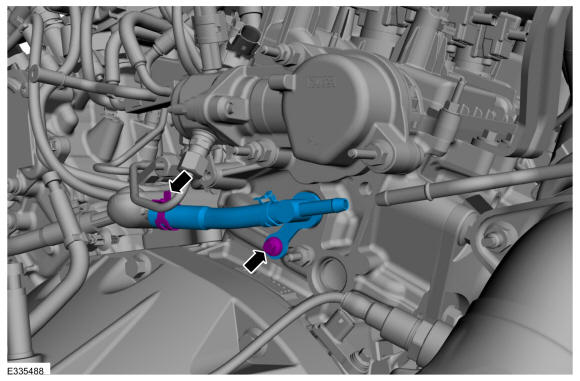

Release the clamp and disconnect the coolant hose. Remove the fastener then remove the cylinder head to coolant outlet connector hose assembly.

Use the General Equipment: Hose Clamp Remover/Installer

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the O-ring and replace if necessary.

Courtesy of FORD MOTOR COMPANY

Right-hand (RH) side
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the RH front wheel and tire. Refer to: Wheel and Tire .
Remove the RH fender splash shield. Refer to: Fender Splash Shield .
Detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
Remove the nuts and the high-pressure fuel pump sound insulator bracket.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the high-pressure fuel pump sound insulator.

Courtesy of FORD MOTOR COMPANY
Disconnect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

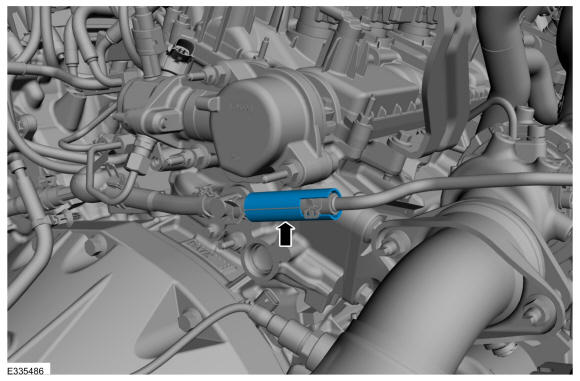

Remove the heat sleeve from the coolant hose.

Courtesy of FORD MOTOR COMPANY
Release the clamp and disconnect the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
NOTE: Do not pry the cylinder head to coolant outlet connector behind the fastener bracket. If necessary use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

Release the clamp and disconnect the coolant hose. Remove the fastener then remove the cylinder head to coolant outlet connector hose assembly.

Use the General Equipment: Hose Clamp Remover/Installer

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the O-ring and replace if necessary.

Courtesy of FORD MOTOR COMPANY
