Cooling Module: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
Remove the air cleaner. Refer to: Air Cleaner .
Remove the pin-type retainers and the upper radiator air deflector.

Courtesy of FORD MOTOR COMPANY

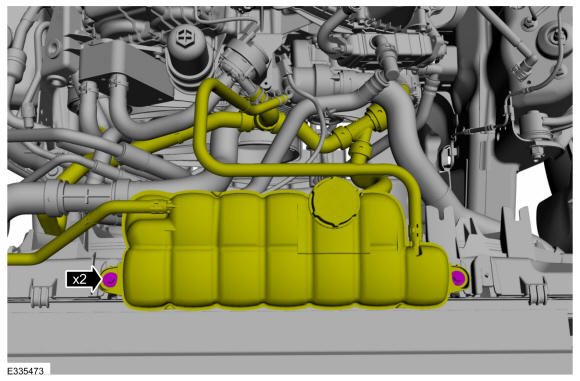

Remove the bolts and position the degas bottle aside.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

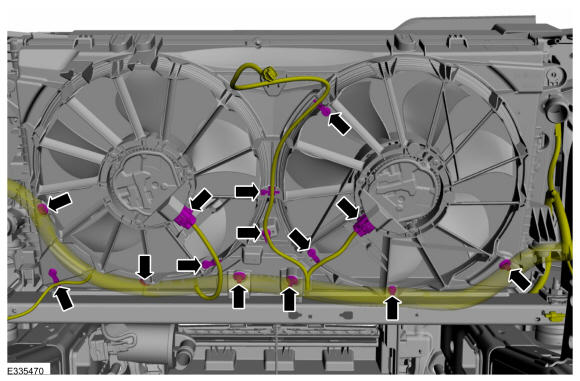

Disconnect the electrical connectors, detach the pin-type retainers and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY
Remove both headlamp assemblies. Refer to: Headlamp Assembly .
Remove the radiator grille. Refer to: Radiator Grille .

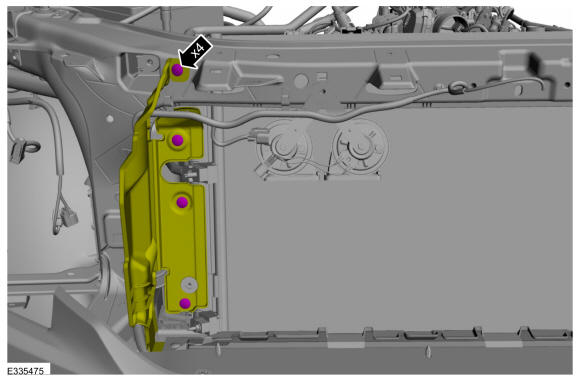

- Detach the hood latch cable retainer.
- Remove the bolts and position the hood latch assembly aside.
  Torque

  : 26 lb.ft (35 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the pin-type retainers and position the air deflector aside.

Courtesy of FORD MOTOR COMPANY
Detach the battery cable pin-type retainer.

Courtesy of FORD MOTOR COMPANY

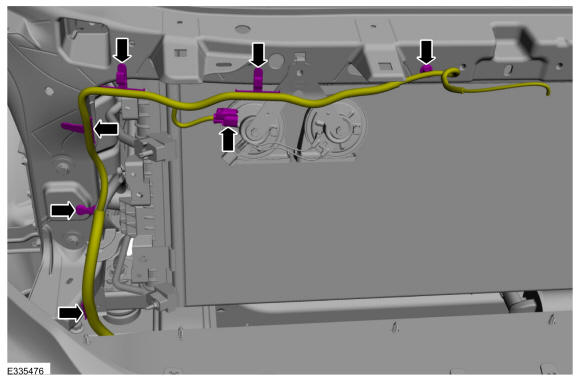

Disconnect the electrical connector. Detach the electrical connector and wiring harness retainers. Position the wiring harness between the radiator and the radiator grille support.

Courtesy of FORD MOTOR COMPANY
Remove the condenser inlet and outlet nuts and disconnect the fittings.
Torque

: 1: 71 lb.in (8 Nm)

2: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
Release the clamps and disconnect the upper radiator and radiator-to-degas bottle hoses.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Pull the lower radiator hose spring clip until the end of the clip is in the detent on the quick connect coupling and disconnect the lower radiator hose.

Courtesy of FORD MOTOR COMPANY
Remove the pin-type retainer and the nut and position the washer bottle aside.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

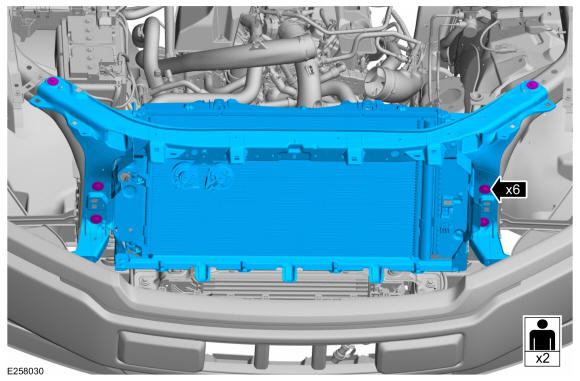

Remove the retainers and the cooling module.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
