Coolant Pump: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  2. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
  3. Remove the LH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH .
  4. Remove the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
  5. Remove the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
  6. Remove the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .

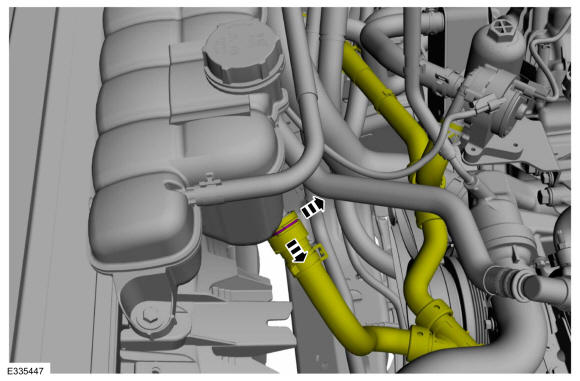

  7. Release the clip and disconnect the lower degas bottle hose.
    GFD556674Courtesy of FORD MOTOR COMPANY

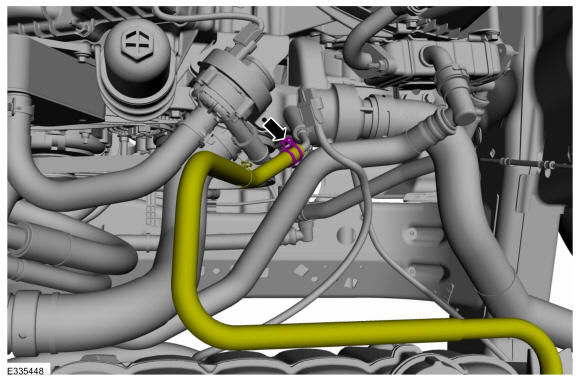

  8. Release the clamp and disconnect the coolant hose.

    Use the General Equipment: Hose Clamp Remover/Installer

    GFD556675Courtesy of FORD MOTOR COMPANY

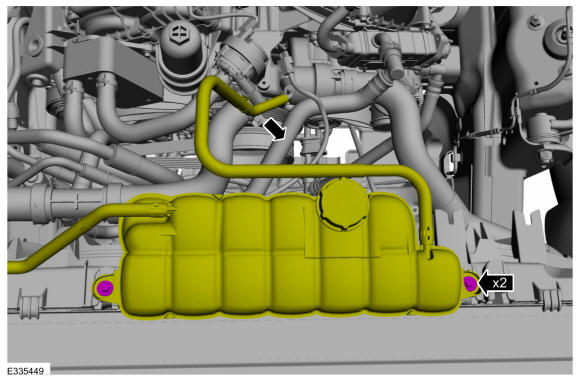

  9. Remove the bolts and position the degas bottle aside.
    GFD556676Courtesy of FORD MOTOR COMPANY

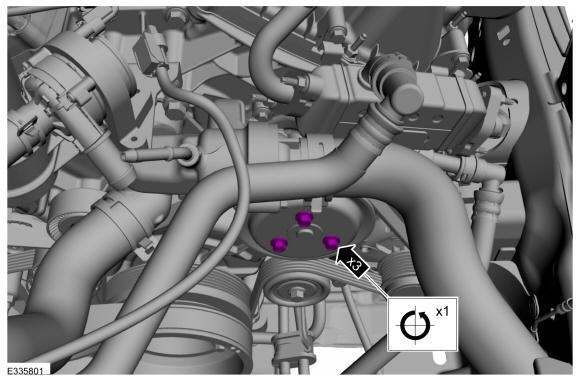

  10. Loosen the coolant pump pulley bolts.
    GFD556677Courtesy of FORD MOTOR COMPANY
  11. Remove the accessory drive belt. Refer to: Accessory Drive Belt - Vehicles With: Dual Generators .
  12. Remove the EGR cooler. Refer to: Exhaust Gas Recirculation (EGR) Cooler .

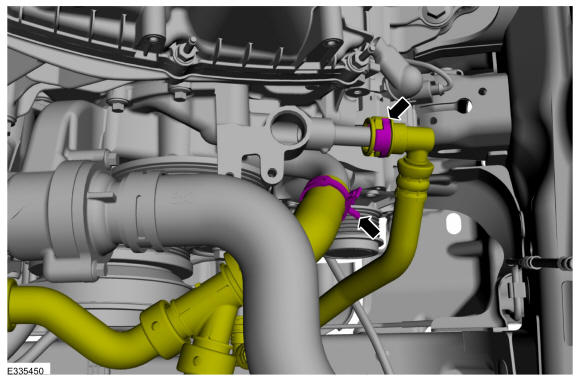

    • Release the clamp and disconnect the coolant hose.

      Use the General Equipment: Hose Clamp Remover/Installer

    • Follow the directions to release quick release coupling type 3. Disconnect the coolant tube. Refer to: Quick Release Coupling .

    GFD556678Courtesy of FORD MOTOR COMPANY

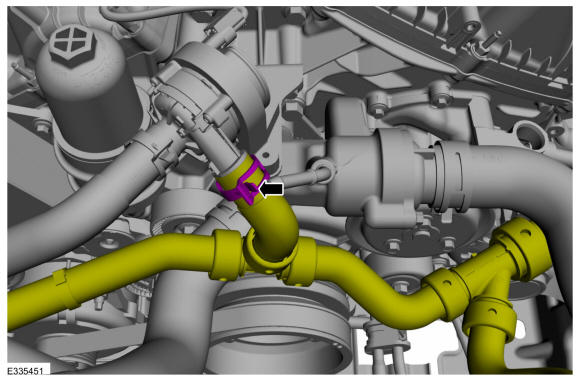

  14. Release the clamp and disconnect the coolant hose.

    Use the General Equipment: Hose Clamp Remover/Installer

    GFD556679Courtesy of FORD MOTOR COMPANY

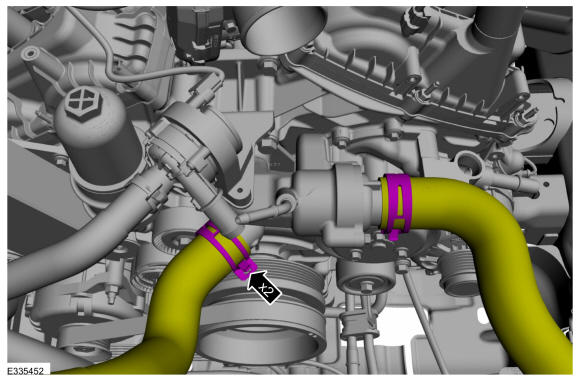

  15. Release the clamps and disconnect the coolant hoses.

    Use the General Equipment: Hose Clamp Remover/Installer

    GFD556680Courtesy of FORD MOTOR COMPANY

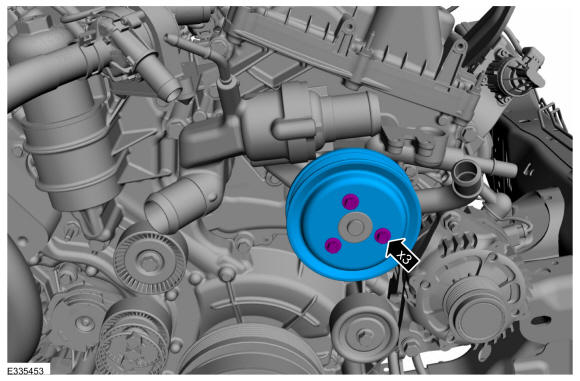

  16. Remove the bolts and the coolant pump pulley.
    GFD556681Courtesy of FORD MOTOR COMPANY

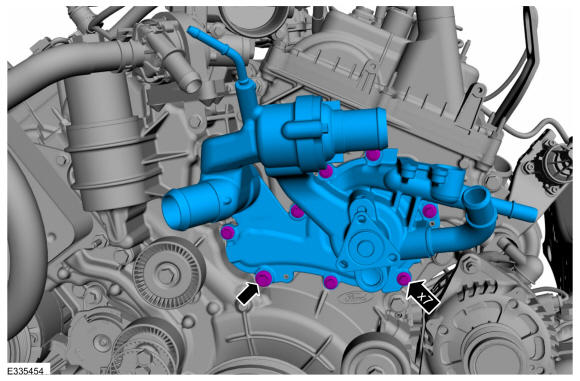

  17. NOTE: Use caution to prevent damaging the coolant inlet pipe grommet.

    Remove the bolts and the coolant pump.

    GFD556682Courtesy of FORD MOTOR COMPANY

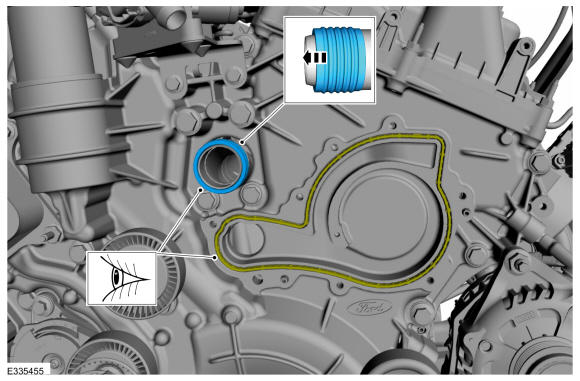

    • Inspect the coolant pump O-ring and replace if necessary.

    • NOTE: The grommet may remain in the coolant pump housing. If this occurs, remove the grommet from the coolant pump housing.

      Remove the grommet from the coolant inlet pipe. Inspect the grommet and replace if necessary.

GFD556683Courtesy of FORD MOTOR COMPANY
