Coolant Pump: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

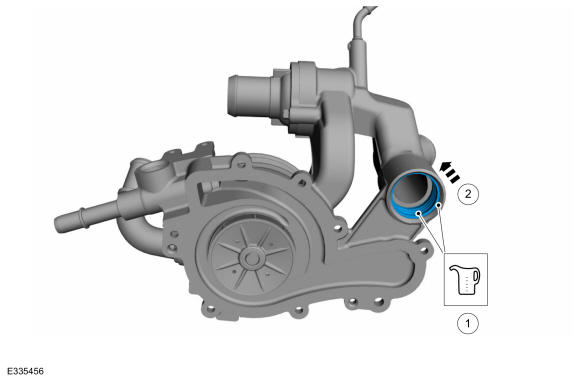

- Lubricate the inside and the outside diameter of the grommet with clean engine coolant. Refer to: Specifications .
- Install the grommet so it is flush with the leading edge of the coolant pump housing to aid in alignment during assembly.
Courtesy of FORD MOTOR COMPANY
NOTE: Verify the front cover dowel pins are aligned to the coolant pump and that the coolant pump is fully seated prior to installing the fasteners.

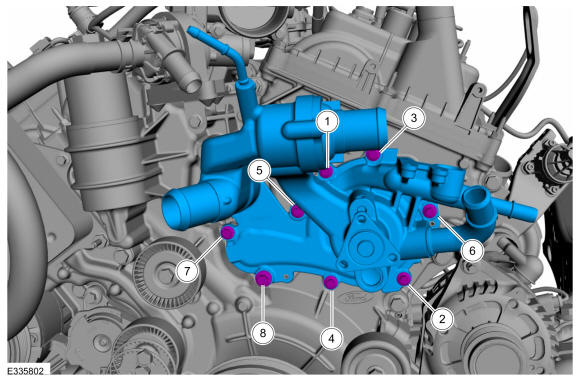

- Using a new gasket, install the coolant pump and the bolts.
  Torque

  : Fasteners 1-7:

  Stage 1: 89 lb.in (10 Nm)

  Stage 2: 45°
- Torque
  : Fastener 8: 18 lb.ft (24 Nm)
Courtesy of FORD MOTOR COMPANY

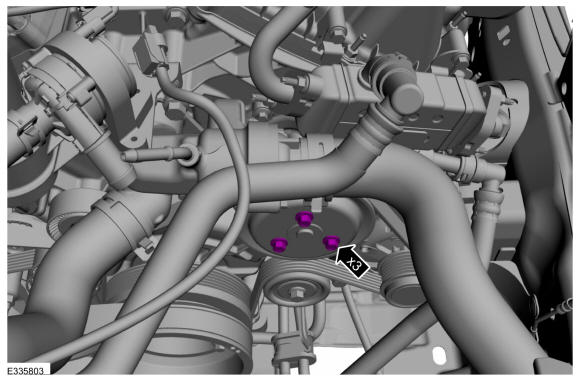

Position the coolant pump pulley and install the fasteners finger tight.

Courtesy of FORD MOTOR COMPANY

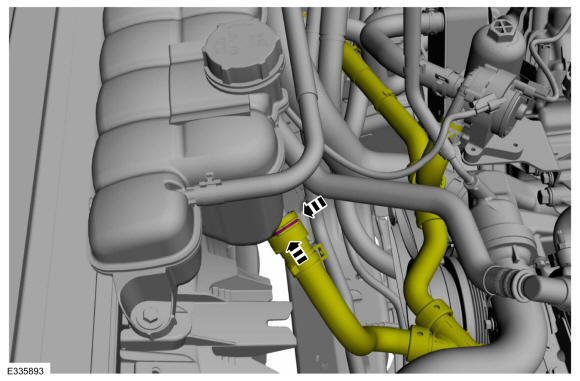

Connect the coolant hoses.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Connect the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
- Connect the coolant hose.
  Use the General Equipment: Hose Clamp Remover/Installer
- Follow the directions to connect quick release coupling type 3. Connect the coolant tube. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY
Install the EGR cooler. Refer to: Exhaust Gas Recirculation (EGR) Cooler .
Install the accessory drive belt. Refer to: Accessory Drive Belt - Vehicles With: Dual Generators .
Tighten the coolant pump pulley fasteners.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Position back the degas bottle.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Connect the lower degas bottle hose.

Courtesy of FORD MOTOR COMPANY
Install the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Install the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
Install the LH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH .
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
