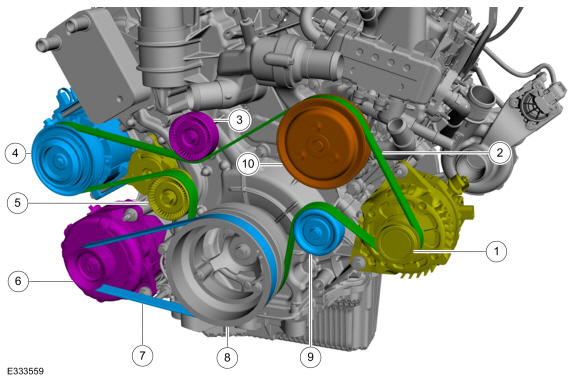

Accessory Drive - Component Location
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Generator pulley |
| 2 | Accessory drive belt |
| 3 | Upper accessory drive belt idler pulley |
| 4 | A/C compressor pulley |
| 5 | Accessory drive belt tensioner |
| 6 | Secondary generator pulley (If equipped) |
| 7 | Secondary generator drive belt (If equipped) |
| 8 | Crankshaft belt pulley |
| 9 | Lower accessory drive belt idler pulley |
| 10 | Coolant pump pulley |
