Cylinder Head - Body Off - LH

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1670 Pins, Camshaft Locking
Courtesy of FORD MOTOR COMPANY	303-1671 Pin, Locking Crankshaft
Courtesy of FORD MOTOR COMPANY	303-1674 Tool, Holding Camshaft Sprocket
Courtesy of FORD MOTOR COMPANY	303-1675 Adapter, Seal Remover
Courtesy of FORD MOTOR COMPANY	303-1678 Remover, Fuel Pump Pulley Holding Tool
Courtesy of FORD MOTOR COMPANY	308-375 Remover, Input Shaft Seal, TKIT-2005U-M, TKIT-1999-F/FLM/LT
Courtesy of FORD MOTOR COMPANY	310-266 Remover, Fuel Injector
Hose Clamp Remover/Installer

1. Remove the body. Refer to: Body - 3.0L Power Stroke Diesel .
2. Roll the chassis out from under the body.
   • Install wheel chocks at the front and back of one wheel.

3. Disconnect the transmission vent tube. Disconnect the wire harness housing and position aside.

   Courtesy of FORD MOTOR COMPANY

4. Disconnect the coolant hose. Disconnect the retainer and position aside the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

5. Remove the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

6. Disconnect the coolant hose. Disconnect the retainers and remove the coolant hoses.

   Courtesy of FORD MOTOR COMPANY

7. Disconnect the electrical connector and the wire retainer.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

   Loosen the clamp, release the clip and remove the LH CAC intake pipe.

   Courtesy of FORD MOTOR COMPANY

9. Disconnect the coolant hose connector and the retainer.

   Courtesy of FORD MOTOR COMPANY

10. Remove the A/C belt and the accessory drive belt.

    Courtesy of FORD MOTOR COMPANY

11. Disconnect the electrical connector and the generator output wire.

    Courtesy of FORD MOTOR COMPANY

12. Remove the bolts and the generator.

    Courtesy of FORD MOTOR COMPANY

13. Disconnect and position aside the fuel tubes. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

14. Remove the LH fuel injector noise insulator.

    Courtesy of FORD MOTOR COMPANY

15. Remove the RH fuel injector noise insulator.

    Courtesy of FORD MOTOR COMPANY

16. Disconnect the oil pump electrical connector and the wire retainers.

    Courtesy of FORD MOTOR COMPANY

17. Disconnect the TB (throttle body) electrical connector and the wire retainer.

    Courtesy of FORD MOTOR COMPANY

18. Disconnect the CMP electrical connector and the wire retainer.

    Courtesy of FORD MOTOR COMPANY

19. Disconnect the CKP electrical connector and the wire retainer.

    Courtesy of FORD MOTOR COMPANY

20. Disconnect the EGR valve and the EP (exhaust pressure) sensor electrical connectors. Disconnect the wire retainers.

    Courtesy of FORD MOTOR COMPANY

21. Disconnect the EOP sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

22. Disconnect the electrical connectors and the wire retainers.

    Courtesy of FORD MOTOR COMPANY

23. Disconnect the fuel injectors electrical connectors and the wire retainers.

    Courtesy of FORD MOTOR COMPANY

24. Disconnect the electrical connectors and the wire retainer.

    Courtesy of FORD MOTOR COMPANY

25. Disconnect the turbocharger actuator electrical connector. Disconnect the EGRT electrical connector and the wire retainers.

    Courtesy of FORD MOTOR COMPANY

26. Disconnect the electrical connectors and the wire retainers.

    Courtesy of FORD MOTOR COMPANY

27. Disconnect the fuel injectors electrical connectors and the wire retainers.

    Courtesy of FORD MOTOR COMPANY

28. Disconnect the electrical connectors and the wire retainer.

    Courtesy of FORD MOTOR COMPANY

29. Disconnect the electrical connector and remove the bolt. Disconnect the wire harness retainers and remove the engine wire harness.

    Courtesy of FORD MOTOR COMPANY

30. Remove the nut and the ground strap.

    Courtesy of FORD MOTOR COMPANY

31. Disconnect the vacuum pump connector. Remove the retainers and remove the vacuum hose assembly. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

32. NOTE: If any snaps become undone on the exhaust crossover pipe wrap. Replace the exhaust crossover pipe wrap.

    Remove the bolts for the exhaust crossover pipe.

    Courtesy of FORD MOTOR COMPANY

33. NOTE: If any snaps become undone on the exhaust crossover pipe wrap. Replace the exhaust crossover pipe wrap.

    Remove the nuts and the exhaust crossover pipe. Discard the nuts.

    Courtesy of FORD MOTOR COMPANY

34. Remove and discard the exhaust crossover pipe gaskets and the studs.

    Courtesy of FORD MOTOR COMPANY

35. Release the clamp and disconnect the EGR cooler coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

36. Remove the bolts and the coolant tube assembly. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

37. Remove and discard the coolant tube assembly O-ring.

    Courtesy of FORD MOTOR COMPANY

38. Remove the bolts and the coolant tube bracket.

    Courtesy of FORD MOTOR COMPANY

39. Remove the bolt and the accessory drive belt tensioner.

    Courtesy of FORD MOTOR COMPANY

40. Remove the bolts and the fan pulley.

    Courtesy of FORD MOTOR COMPANY

41. Remove the nuts and the CAC tube bracket.

    Courtesy of FORD MOTOR COMPANY

42. Remove the bolts and the accessory drive belt tensioner.

    Courtesy of FORD MOTOR COMPANY

43. Remove the bolts and the crankshaft vibration damper.

    Courtesy of FORD MOTOR COMPANY

44. • Disconnect the wire retainers.
    • Remove the retainer from the timing belt cover.
    • Remove the retainers and the EGR outlet tube.
    • Remove and discard the gaskets.

    Courtesy of FORD MOTOR COMPANY

45. NOTE: Mark the locations of the fasteners before removal.

    Remove the bolts, the stud bolts and the timing belt cover.

    Courtesy of FORD MOTOR COMPANY

46. Remove and discard the timing belt cover gasket.

    Courtesy of FORD MOTOR COMPANY

47. Remove the nuts and the fuel tube support bracket.

    Courtesy of FORD MOTOR COMPANY

48. Remove the nut and the front fuel tube support bracket.

    Courtesy of FORD MOTOR COMPANY

49. Remove the nut, the bolt and the LH exhaust manifold heat shield.

    Courtesy of FORD MOTOR COMPANY

50. Remove the stud bolt. Disconnect the tube nut and remove the EP sensor assembly.

    Courtesy of FORD MOTOR COMPANY

51. Remove the oil level indicator.

    Courtesy of FORD MOTOR COMPANY

52. • Disconnect the wire retainers from the oil level indicator tube.
    • Remove the stud bolt, the bolt and the oil level indicator tube.

    Courtesy of FORD MOTOR COMPANY

53. Remove the bolts and the EGR coolant tube.

    Courtesy of FORD MOTOR COMPANY

54. Remove and discard the EGR coolant tube O-ring and the grommet.

    Courtesy of FORD MOTOR COMPANY

55. Remove the bolts and the EGR cooler-to-exhaust manifold pipe. Remove and discard the gaskets.

    Courtesy of FORD MOTOR COMPANY

56. Remove the bolts and the EGR cooler.

    Courtesy of FORD MOTOR COMPANY

57. Remove the bolts and the EGR cooler bracket.

    Courtesy of FORD MOTOR COMPANY

58. Disconnect the fuel lines. Remove the bolt and the secondary fuel filter. Discard the secondary fuel filter. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

59. Disconnect the retainers. Remove the nut, the bolt and the wiring harness bracket.

    Courtesy of FORD MOTOR COMPANY

60. Remove the accessory drive cover.

    Courtesy of FORD MOTOR COMPANY

61. Remove the stud bolts and the accessory drive cover.

    Courtesy of FORD MOTOR COMPANY

62. Remove the bolt. Disconnect and remove the fuel supply tube. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

63. Disconnect and remove the fuel return tube assembly. Discard the fuel return tube assembly. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

64. Remove the bolts and the front engine lifting eye.

    Courtesy of FORD MOTOR COMPANY

65. NOTE: Lift the front of the intake manifold up and slide the intake manifold to the right to remove.

    Remove the stud bolt, the bolt and the intake manifold.

    Courtesy of FORD MOTOR COMPANY

66. Remove and discard the intake manifold gaskets.

    Courtesy of FORD MOTOR COMPANY

67. Remove the bolt and the wire harness bracket.

    Courtesy of FORD MOTOR COMPANY

68. Remove the LH engine cover stud assemblies.

    Courtesy of FORD MOTOR COMPANY

69. Disconnect and position aside the LH fuel return hose assembly.

    Courtesy of FORD MOTOR COMPANY

70. Remove the bolt. Remove and discard the LH fuel supply tube.

    Courtesy of FORD MOTOR COMPANY

71. • Remove the bolts and the clamps.
    • Remove and discard the LH fuel injector supply tubes.

    Courtesy of FORD MOTOR COMPANY

72. • Remove the bolts and the clamp.
    • Remove and discard the fuel injection pump balance tube.

    Courtesy of FORD MOTOR COMPANY

73. Remove the bolts and the LH fuel rail.

    Courtesy of FORD MOTOR COMPANY

74. Remove the LH fuel injector noise insulator.

    Courtesy of FORD MOTOR COMPANY

75. Remove the bolts for the LH fuel injectors.

    Courtesy of FORD MOTOR COMPANY

76. NOTE: Only one fuel injector shown.

    Using the special tool, remove the fuel injectors. Use Special Service Tool: 310-266 Remover, Fuel Injector.

    Courtesy of FORD MOTOR COMPANY

77. Remove and discard the sealing washer, the O-rings and the fuel injector hold down.

    Courtesy of FORD MOTOR COMPANY

78. Remove the bolts and the LH fuel rail bracket.

    Courtesy of FORD MOTOR COMPANY

79. Remove the nuts and the LH fuel tube bracket.

    Courtesy of FORD MOTOR COMPANY

80. Disconnect the LH glow plug electrical connector.

    Courtesy of FORD MOTOR COMPANY

81. NOTE: Mark the location of the fasteners prior to removing the valve cover.

    Loosen the fasteners and remove the LH valve cover.

    Courtesy of FORD MOTOR COMPANY

82. Remove and discard the LH valve cover gasket.

    Courtesy of FORD MOTOR COMPANY

83. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

    Courtesy of FORD MOTOR COMPANY

84. Remove the timing pin bolt at the left front of the engine.

    Courtesy of FORD MOTOR COMPANY

85. Install special tool.
    • NOTE: Only rotate the crankshaft clockwise.
      NOTE: Verify that the camshaft timing holes are aligned with the cylinder head.
      NOTE: The Locking Crankshaft Pin must be bottomed out against the cylinder block.

      Rotate the crankshaft clockwise so the crankshaft contacts the locking crankshaft pin. Use Special Service Tool: 303-1671 Pin, Locking Crankshaft.

    Courtesy of FORD MOTOR COMPANY

86. Using the special tool, rotate the fuel pump sprocket to push down on the READ belt tensioner until the openings are aligned, install the lock pin. Use Special Service Tool: 303-1678 Remover, Fuel Pump Pulley Holding Tool.

    Courtesy of FORD MOTOR COMPANY

87. NOTE: Note the position of the camshaft pulley prior to removal.

    Remove the bolts, the camshaft pulley and the READ belt.

    Courtesy of FORD MOTOR COMPANY

88. Remove the bolt and the READ belt tensioner.

    Courtesy of FORD MOTOR COMPANY

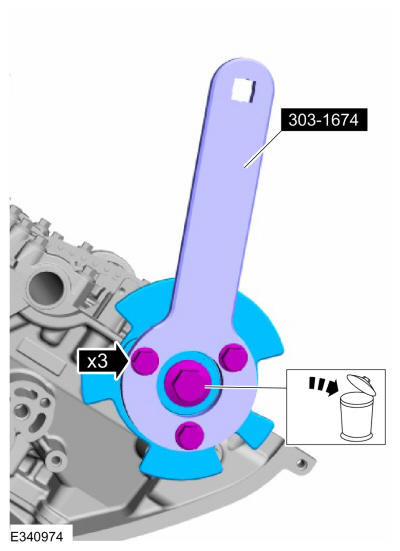

89. NOTE: Use the original bolts for the special tool.

    Using the special tool, remove the bolt and the camshaft gear hub. Discard the bolt. Use Special Service Tool: 303-1674 Tool, Holding Camshaft Sprocket.

    Courtesy of FORD MOTOR COMPANY

90. Remove the nut, the bolt and the accessory drive cover.

    Courtesy of FORD MOTOR COMPANY

91. Remove the bolts and the fan drive.

    Courtesy of FORD MOTOR COMPANY

92. • Using the special tools, verify the camshaft timing. Use Special Service Tool: 303-1670 Pins, Camshaft Locking.
    • Loosen the bolts on the camshaft pulleys.

    Courtesy of FORD MOTOR COMPANY

93. NOTE: The crankshaft or camshafts must not be rotated while the timing belt is removed.
    1. Loosen the timing belt tensioner bolt.
    2. Rotate the timing belt tensioner clockwise.
    3. Remove the timing belt.

    Courtesy of FORD MOTOR COMPANY

94. NOTE: Replace the timing belt tensioner if damage or excessive wear is found.

    Remove the bolt and the timing belt tensioner. Discard the bolt.

    Courtesy of FORD MOTOR COMPANY

95. NOTE: Note the position of the camshaft pulley prior to removal.

    Remove the bolts and the LH camshaft pulley.

    Courtesy of FORD MOTOR COMPANY

96. NOTE: Use the original bolts for the special tool.

    Using the special tool, remove the bolts and the LH camshaft gear hub. Discard the bolt. Use Special Service Tool: 303-1674 Tool, Holding Camshaft Sprocket.

    Courtesy of FORD MOTOR COMPANY

97. Remove the bolts and the coolant outlet connector.

    Courtesy of FORD MOTOR COMPANY

98. Remove and discard the oil cooler O-ring.

    Courtesy of FORD MOTOR COMPANY

99. Remove and discard the coolant outlet connector gaskets.

    Courtesy of FORD MOTOR COMPANY

100. Remove the dust shield.

     Courtesy of FORD MOTOR COMPANY

101. Using the special tools, remove and discard the camshaft seals. Use Special Service Tool: 303-1675 Adapter, Seal Remover., 308-375 Remover, Input Shaft Seal.

     Courtesy of FORD MOTOR COMPANY

102. Compress the camshaft chain and install the retaining pin.

     Courtesy of FORD MOTOR COMPANY

103. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

     Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

104. Remove the bolts and the LH camshafts, camshaft chain and the secondary timing chain tensioner.

     Courtesy of FORD MOTOR COMPANY

105. NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

     Remove the LH camshaft roller follower and hydraulic lash adjuster assemblies.

     Courtesy of FORD MOTOR COMPANY

106. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

107. NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
     NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface
     NOTE: The glow plugs protrude past the lower face of the cylinder head, any impact on the tip of the glow plug may result in glow plug damage.
     NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.
     • Remove and discard the bolts from the LH cylinder head.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

108. Remove and discard the LH cylinder head gasket and the cylinder head dowels.

     Courtesy of FORD MOTOR COMPANY

109. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
     NOTE: Clean the cylinder block bolt holes using compressed air. Make sure all coolant, oil or other foreign material is removed.
     • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block surface.
     • Check the cylinder head distortion. Refer to: Cylinder Head Distortion .
     • Check the cylinder block distortion. Refer to: Cylinder Block Distortion .
