Valve Cover RH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

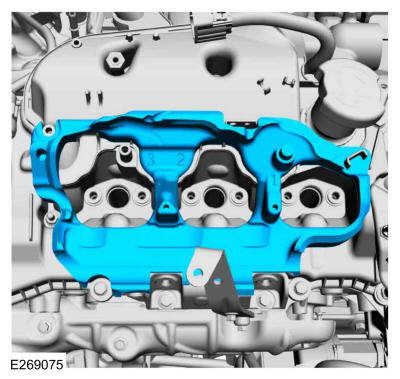

Install a new valve cover gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

Apply an 6 mm dot of Motorcraft® High Performance Engine RTV Silicone to the locations shown.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
Install the valve cover and tighten the fasteners in the sequence shown.
Torque: Stage 1: Tighten bolt number 1 to : 9 lb.in (1 Nm)

Stage 2: Tighten bolts 2 thru 14 to : 89 lb.in (10 Nm)

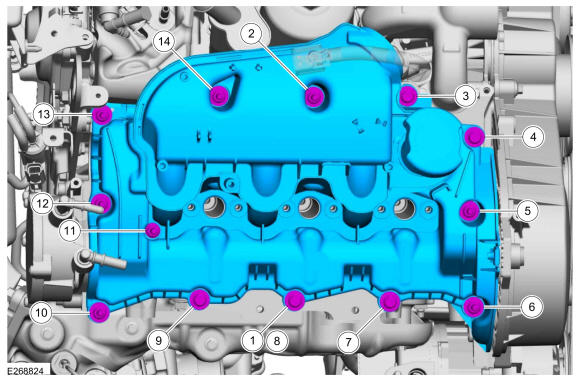

Fig 1: RH Valve Cover Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Connect the glow plug electrical connector and position aside.

Courtesy of FORD MOTOR COMPANY

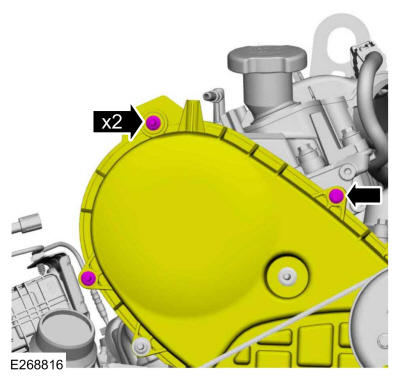

Position back the engine front cover and install the retainers.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Position back the heater hoses. Install the nuts for the CAC tube bracket.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Install the bolt for the CAC tube.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Install the RH fuel tube bracket and the nuts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

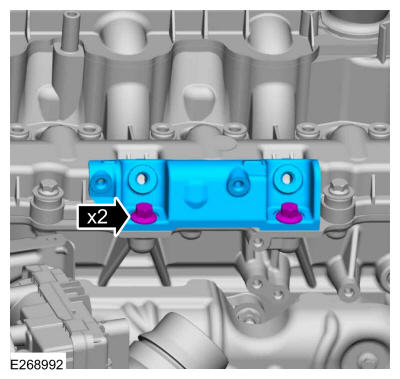

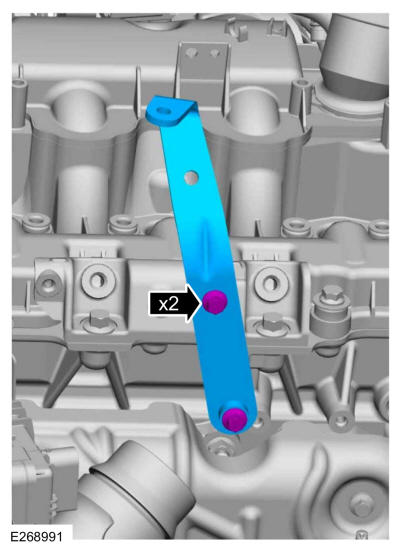

Install the RH fuel rail bracket and the bolts.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
Install the heater hose support bracket and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the RH engine cover stud assemblies.
Torque: 1 : 62 lb.in (7 Nm) 2 : 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

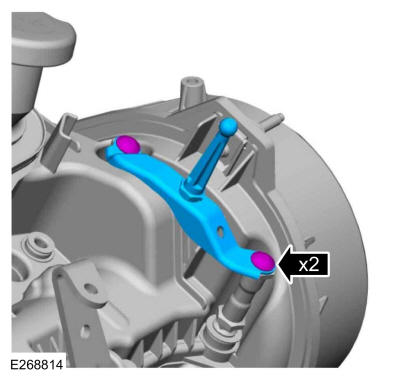

Install the engine appearance support bracket and the retainers.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH lower insulator.

Courtesy of FORD MOTOR COMPANY

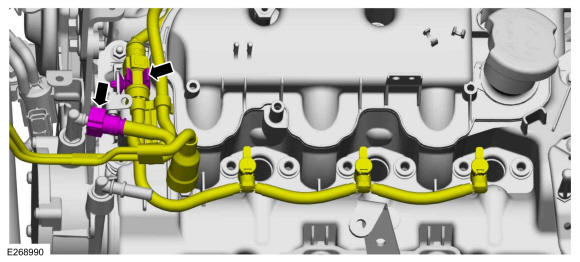

- Position back the fuel hoses.
- Position back the vacuum harness and connect. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY

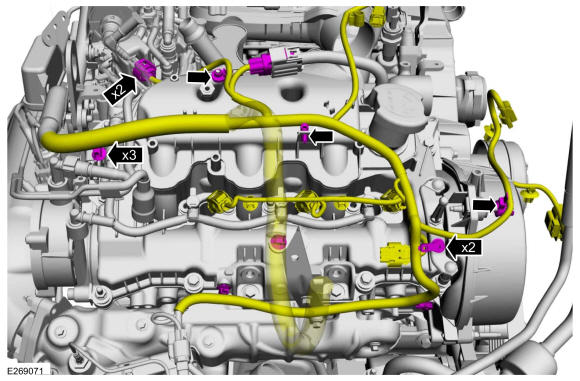

Position back the wire harness. Connect the electrical connectors and the wire harness retainers.

Courtesy of FORD MOTOR COMPANY

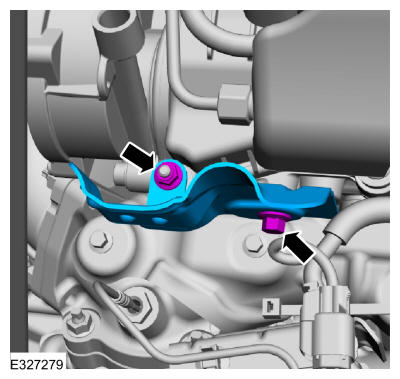

Install the turbocharger heat shield, the nut and the bolt.
Torque: Nut : 53 lb.in (6 Nm) Bolt : 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

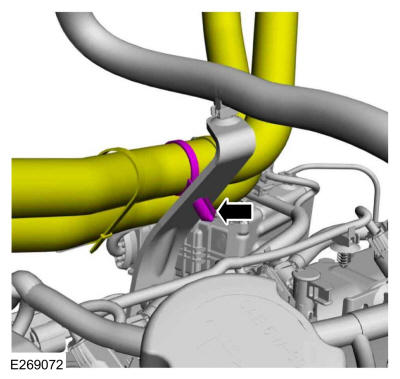

Position back the heater hoses and connect the retainer.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the RH fuel rail. Refer to: Fuel Rail RH .
2. Install the RH fuel injectors. Refer to: Fuel Injectors RH .
3. Install the RH fuel injector supply tube. Refer to: Fuel Injector Supply Tube RH .
4. Install the RH fuel rail supply tube. Refer to: Fuel Rail Supply Tube RH .
5. Install the fuel rail balance tube. Refer to: Fuel Rail Balance Tube .
6. Install the intake manifold. Refer to: Intake Manifold .
