Vacuum Pump: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the engine appearance cover.

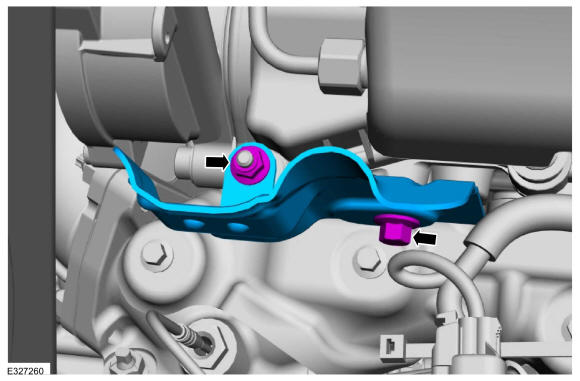

- Remove the nut, the bolt and the turbocharger heat shield.
- Remove the RH fender splash shield. Refer to: Fender Splash Shield .
-

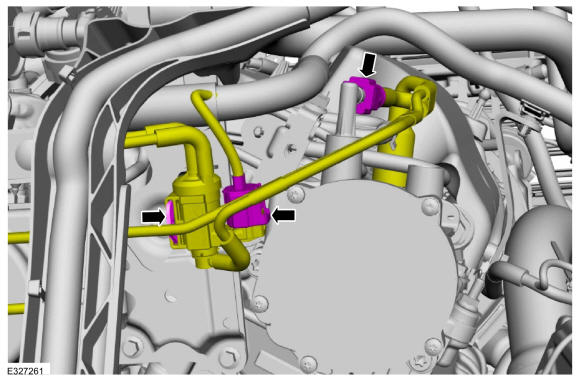

- Disconnect the vacuum control regulator electrical connector.
- Disconnect the coupling.
- Disconnect the vacuum control regulator and position aside the vacuum harness.
-

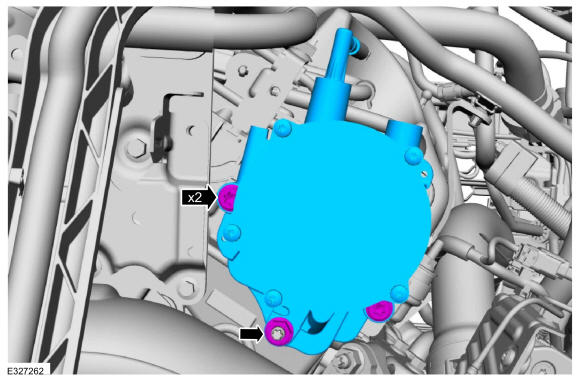

- Remove the nut.
-
NOTE: The bolts can only be removed with the vacuum pump.
Remove the bolts and the vacuum pump.

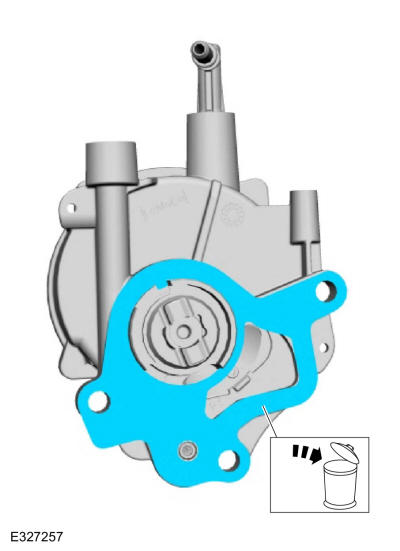

- Remove and discard the vacuum pump gasket.

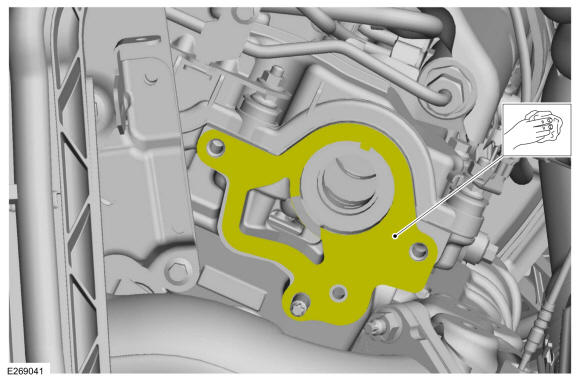

- Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
