Timing Belt Cover: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Install a new gasket for the timing belt cover.

Courtesy of FORD MOTOR COMPANY
Install the timing belt cover and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

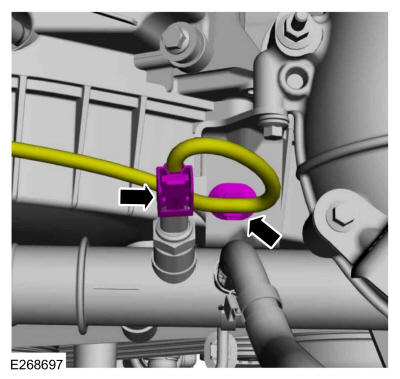

Position back the engine wiring and connect the retainers.

Courtesy of FORD MOTOR COMPANY

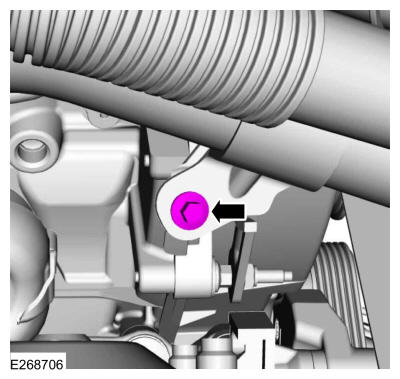

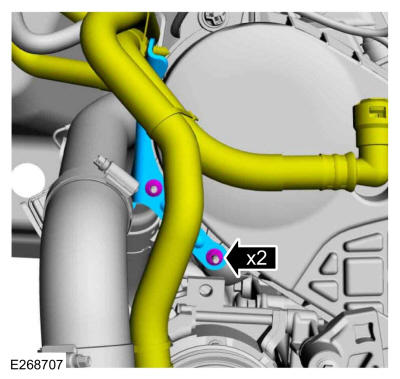

Position back the bracket and install the bolt. Position back the engine wiring and connect the retainers.
Torque: 31 lb.in (3.5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the fan pulley and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

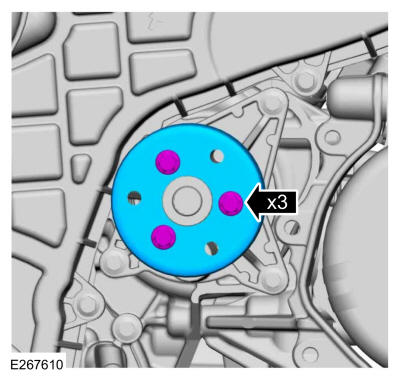

Install the coolant pump pulley and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the crankshaft vibration damper and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the accessory drive belt tensioner and the bolt.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

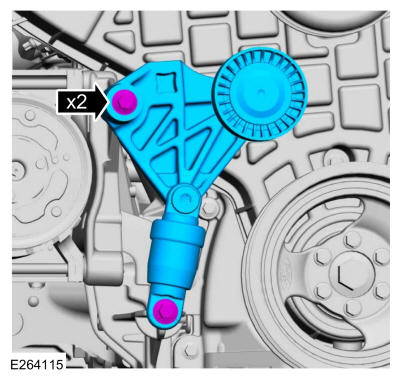

Install the accessory drive belt tensioner and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

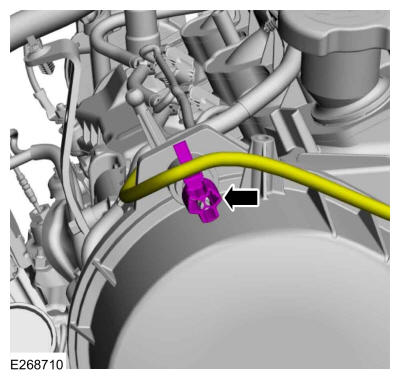

Position back the wiring and connect the wire retainer.

Courtesy of FORD MOTOR COMPANY

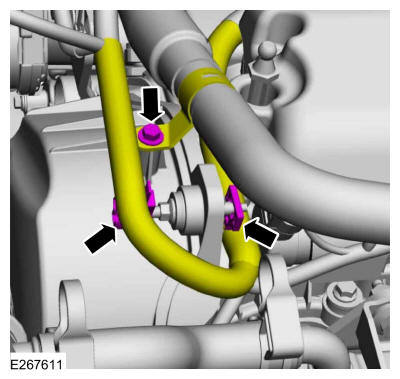

Position back the heater hoses. Install the nuts for the CAC tube bracket.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Install the bolt for the CAC tube.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Install the coolant tube bracket and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install a new O-ring seal and lubricate. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Install the coolant tube and connect the clamp.Install the bolts for the coolant tube. Use the General Equipment: Hose Clamp Remover/Installer
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the ECT sensor electrical connector and the wire retainer.

Courtesy of FORD MOTOR COMPANY
- Position back and connect the heater hose.
- Install the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the accessory drive belt. Refer to: Accessory Drive Belt .
2. Install the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
3. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
4. Install the cooling fan. Refer to: Cooling Fan .
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
