Oil Pump: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

Remove the crankshaft front seal. Refer to: Crankshaft Front Seal .

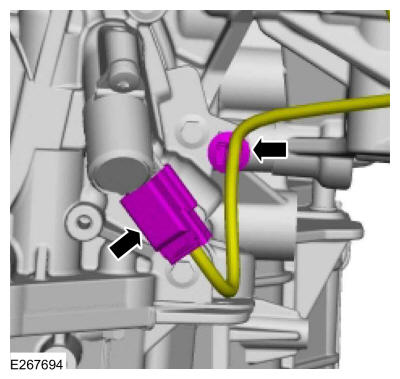

Disconnect the oil pump electrical connector and the wire retainer.

Courtesy of FORD MOTOR COMPANY

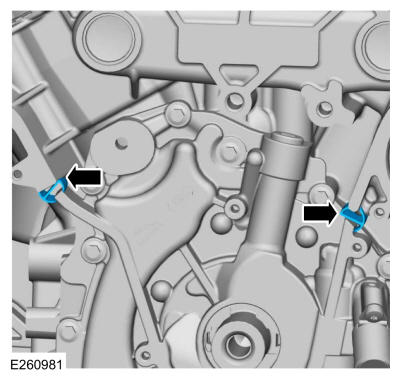

Remove the oil pump inserts.

Courtesy of FORD MOTOR COMPANY

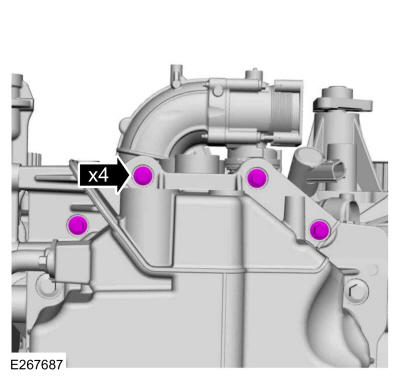

Remove the front oil pan bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care to not damage the engine block skirt stiffener gasket during removal and installation of the oil pump.

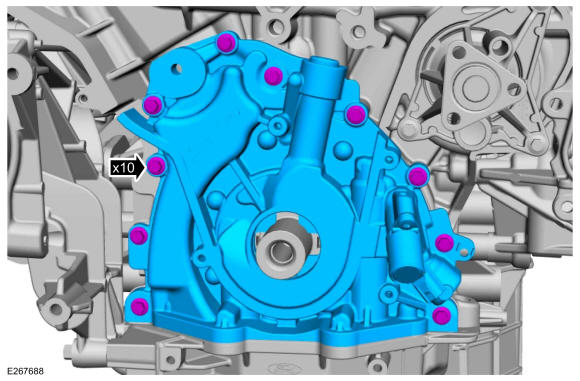

Remove the bolts and the oil pump.

Courtesy of FORD MOTOR COMPANY

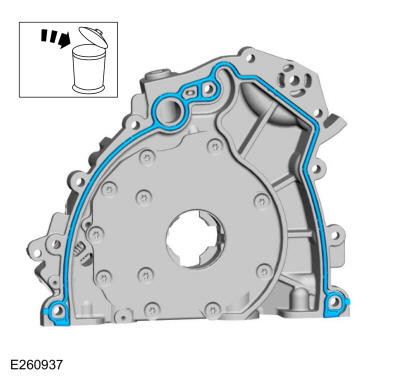

Remove and discard the oil pump gasket.

Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
