Removal And Installation: Flexplate: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission.
  2. NOTE: Only rotate the crankshaft clockwise.

    Install Special Service Tool: 303-1677 Locking Tool, Flywheel.

    GFD556003Courtesy of FORD MOTOR COMPANY

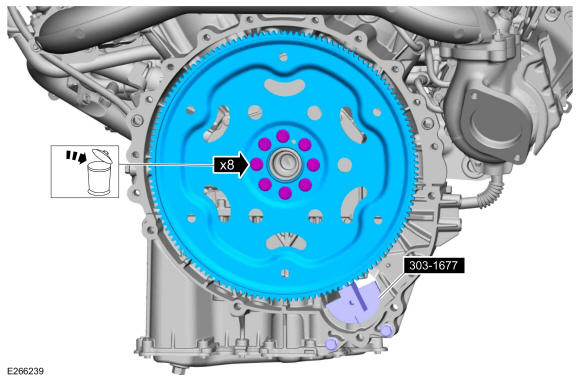

  3. Remove the bolts and the flexplate. Discard the bolts.
GFD556092Courtesy of FORD MOTOR COMPANY
