Removal And Installation: Flexplate: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

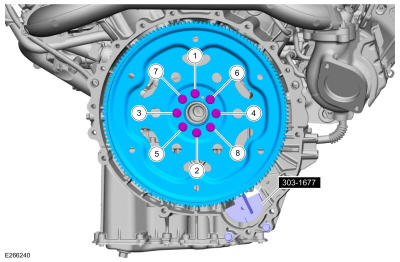

- Install the flexplate and the bolts. Tighten in sequence shown.
Torque: Stage 1: 37 lb.ft (50 Nm)
Stage 2: 45°
Stage 3: 45°
Courtesy of FORD MOTOR COMPANY

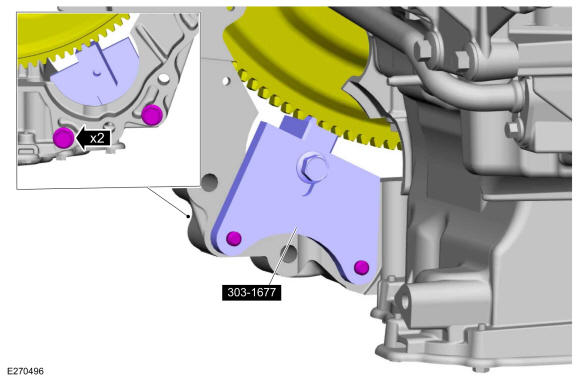

- Remove Special Service Tool: 303-1677 Locking Tool, Flywheel.
 Courtesy of FORD MOTOR COMPANY
|
- Install the transmission.
- Road test the vehicle.
