Exhaust Manifold RH: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the following items:
1. Remove the turbocharger. Refer to: Turbocharger .
2. Remove the exhaust crossover pipe. Refer to: Exhaust Crossover Pipe .
3. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .

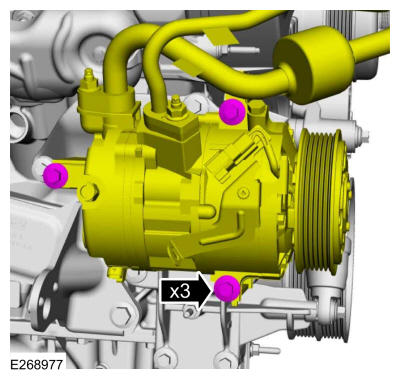

Remove the bolts and position aside the A/C compressor.

Courtesy of FORD MOTOR COMPANY

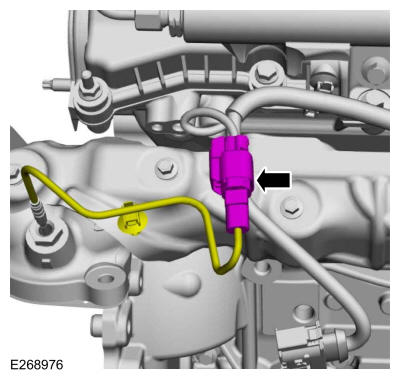

Disconnect the EGRT sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

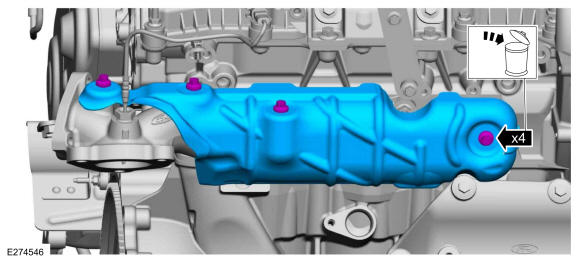

Remove the bolts and the exhaust manifold heat shield. Discard the bolts.

Courtesy of FORD MOTOR COMPANY

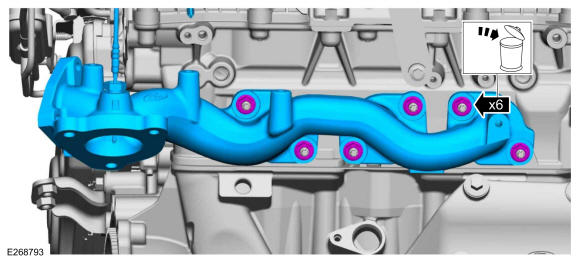

- Remove and discard the nuts.
- Remove the exhaust manifold.
Courtesy of FORD MOTOR COMPANY

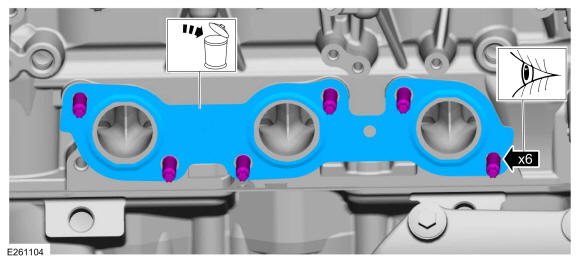

- Remove and discard the exhaust manifold gasket.
- Inspect the exhaust manifold studs. Replace as necessary.
Courtesy of FORD MOTOR COMPANY
Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
