Exhaust Manifold RH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

- Install the exhaust manifold studs as needed.
  Torque: 115 lb.in (13 Nm)

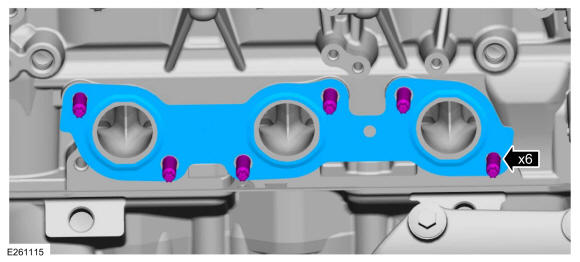

- Install the exhaust manifold gasket.
Courtesy of FORD MOTOR COMPANY
Install the exhaust manifold and the nuts.
Torque: Tighten the nuts in the sequence shown to: : 21 lb.ft (28 Nm) Tighten the nuts in the following order 1, 2, 3, 5, 1, 2 to: : 21 lb.ft (28 Nm)

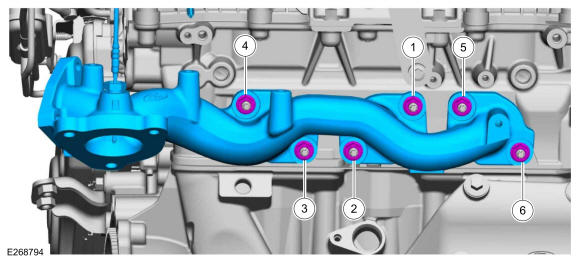

Fig 1: RH Exhaust Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY

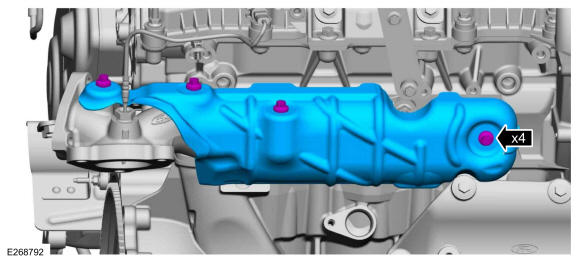

Install the exhaust manifold heat shield and the bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the EGRT sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Position back the A/C compressor and install the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
2. Install the exhaust crossover pipe. Refer to: Exhaust Crossover Pipe .
3. Install the turbocharger. Refer to: Turbocharger .
