Engine Mount RH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the RH engine mount-to-frame mating surfaces and the engine mount-to-cylinder block of any dirt or foreign material prior to installation.

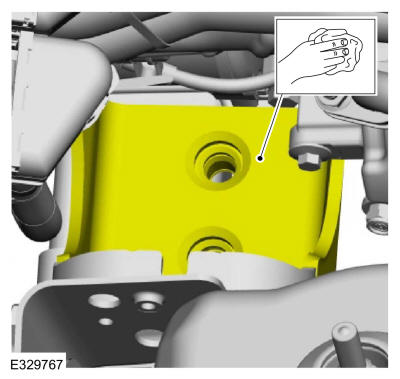

    GFD556060Courtesy of FORD MOTOR COMPANY
  2. Position the RH engine mount into the vehicle.

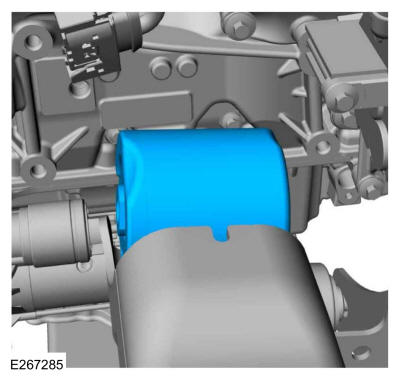

    GFD556059Courtesy of FORD MOTOR COMPANY

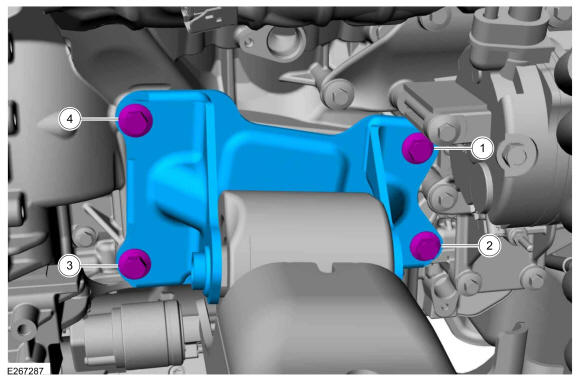

  3. Position the RH engine mount-to-cylinder block bracket and install the new bolts in the sequence shown.

    Torque: 76 lb.ft (103 Nm)

    Fig 1: RH Engine Mount Bracket Tightening Sequence
    GFD556061Courtesy of FORD MOTOR COMPANY
  4. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the RH engine mount studs.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 22 lb.ft (30 Nm)

    GFD556062Courtesy of FORD MOTOR COMPANY
  5. NOTE: Only use hand tools when installing the RH engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque: 111 lb.ft (150 Nm)

    GFD556063Courtesy of FORD MOTOR COMPANY

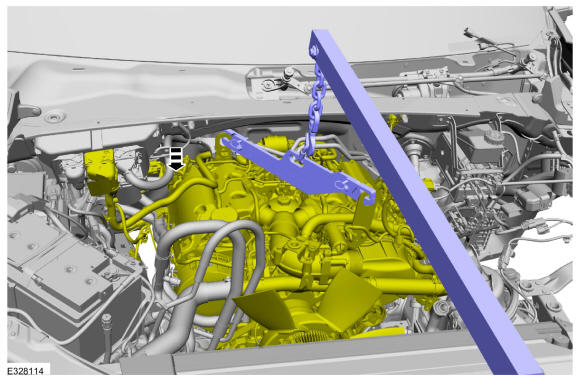

  6. Lower the engine to the installed position and remove the floor crane. Use the General Equipment: Floor Crane
    GFD556045Courtesy of FORD MOTOR COMPANY
  7. Remove the commercially available quick link and the special tool. Use Special Service Tool: 303-1681 Spreader Bar.

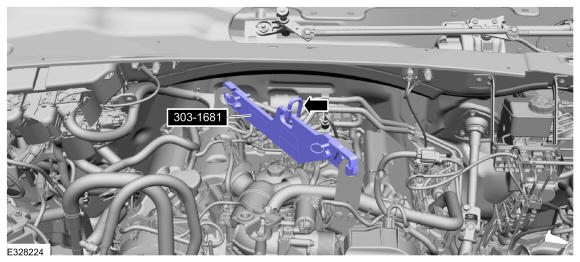

    GFD556038Courtesy of FORD MOTOR COMPANY
  8. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

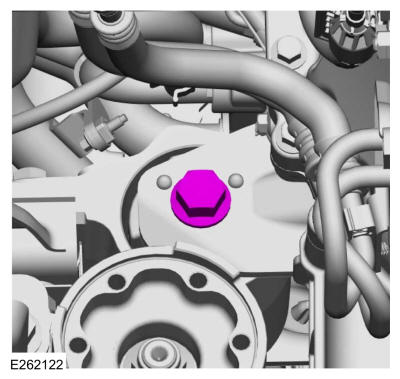

    GFD556064Courtesy of FORD MOTOR COMPANY
  9. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new RH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

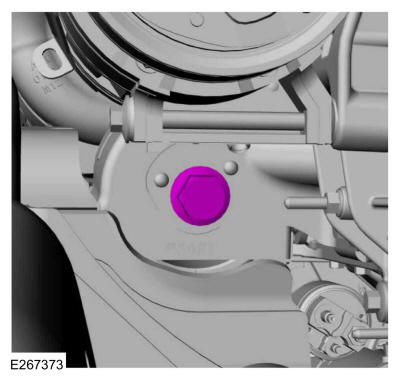

    GFD556051Courtesy of FORD MOTOR COMPANY
  10. If equipped, install the front driveshaft. Refer to: Front Driveshaft .
  11. If equipped. Install the skid plate and the bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD556023Courtesy of FORD MOTOR COMPANY
  12. If equipped. Install the underbody shield and the bolts.

    Torque: M8 bolt : 30 lb.ft (40 Nm) M6 bolt : 71 lb.in (8 Nm)

    GFD556022Courtesy of FORD MOTOR COMPANY
  13. Remove the engine rear lifting bracket.

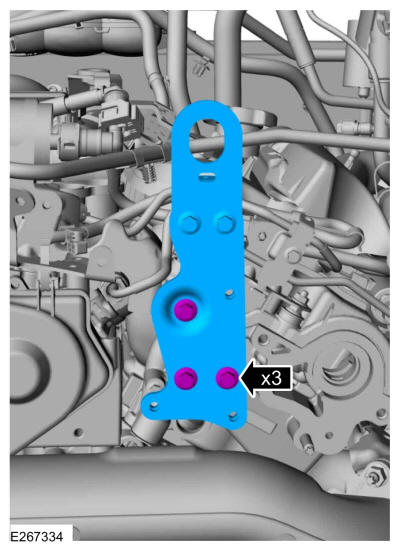

    GFD556056Courtesy of FORD MOTOR COMPANY
  14. Install the following items:

    1. Install the turbocharger. Refer to: Turbocharger .
    2. Install the cooling fan upper shroud. Refer to: Cooling Fan Upper Shroud .
    3. Install the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
    4. Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    5. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    6. Install the cowl panel. Refer to: Cowl Panel .

  15. NOTE: LH shown, RH similar.

    1. Position the hood shock and attach.
    2. Install the clip.

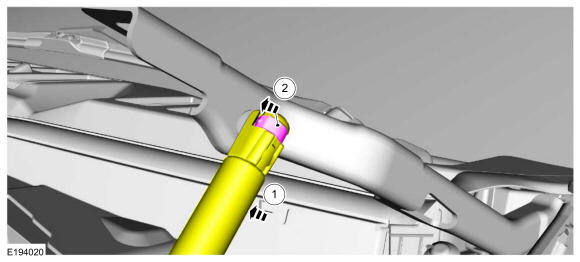

    GFD556055Courtesy of FORD MOTOR COMPANY
  16. Position the hood and install the nuts.

    Torque: 18 lb.ft (25 Nm)

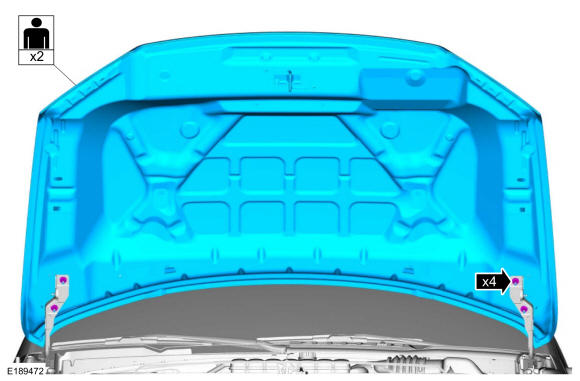

    GFD554159Courtesy of FORD MOTOR COMPANY
  17. Start and check the exhaust system for leaks.
