Engine Mount LH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

  1. Clean the LH engine mount-to-frame mating surfaces and the engine mount-to-cylinder block of any dirt or foreign material prior to installation.
    GFD556042Courtesy of FORD MOTOR COMPANY
  2. If removed, install the LH engine mount-to-cylinder block bracket and install the new bolts in the sequence shown.

    Torque: 85 lb.ft (115 Nm)

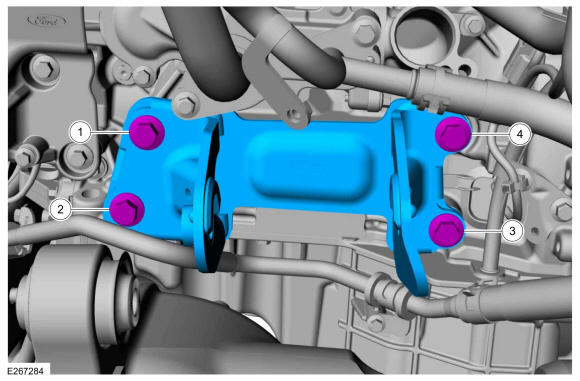

    Fig 1: LH Engine Mount Bracket Tightening Sequence
    GFD556043Courtesy of FORD MOTOR COMPANY

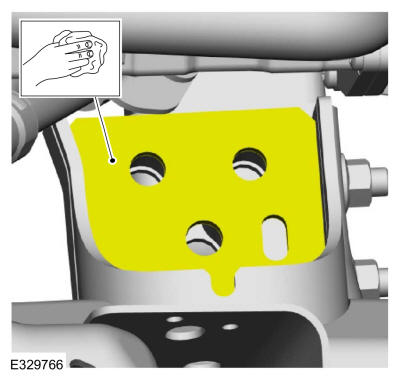

  3. NOTE: Replace the nut plate with part number W716699-S439.

    If removed, install a new engine mount-to-frame nut plate.

    GFD554864Courtesy of FORD MOTOR COMPANY

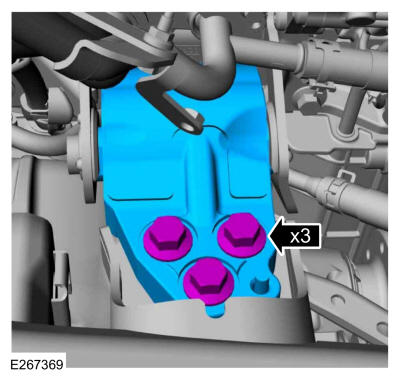

  4. Position the LH engine mount and hand tighten the new engine mount-to-frame bolts.
    GFD556044Courtesy of FORD MOTOR COMPANY
  5. Lower the engine to the installed position and remove the floor crane. Use the General Equipment: Floor Crane
    GFD556045Courtesy of FORD MOTOR COMPANY
  6. Remove the commercially available quick link and the special tool. Use Special Service Tool: 303-1681 Spreader Bar.
    GFD556038Courtesy of FORD MOTOR COMPANY

    4x4

  7. Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands
    GFD554869Courtesy of FORD MOTOR COMPANY
  8. NOTE: It may be necessary to reposition the axle assembly to prevent interference with the steering components when installing the bolt.

    Install the new upper front axle carrier mounting bushing nut and the bolt finger tight.

    GFD554870Courtesy of FORD MOTOR COMPANY
  9. Install the new axle shaft housing carrier bushing nut and the bolt finger tight.
    GFD554871Courtesy of FORD MOTOR COMPANY

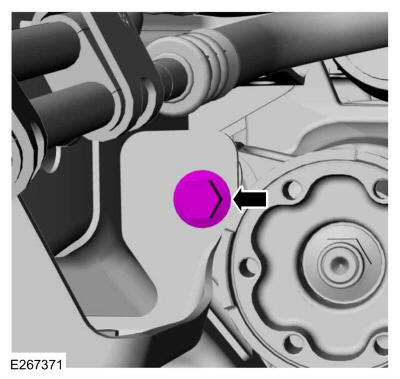

  10. Install the new lower front axle carrier mounting bushing bolt.

    Torque: 136 lb.ft (185 Nm)

    GFD556046Courtesy of FORD MOTOR COMPANY
  11. Tighten the axle shaft housing carrier bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD554873Courtesy of FORD MOTOR COMPANY

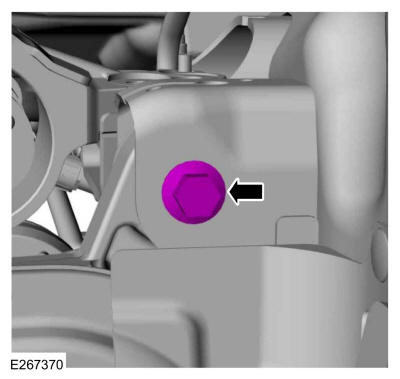

  12. Tighten the upper front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD556047Courtesy of FORD MOTOR COMPANY
  13. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands
    GFD554854Courtesy of FORD MOTOR COMPANY
  14. Install the steering gear boot.
    GFD556036Courtesy of FORD MOTOR COMPANY
    1. Position back the steering column shaft U-joint to the steering gear.
    2. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Install a new steering column shaft bolt.

      Torque: 22 lb.ft (30 Nm)

    GFD556048Courtesy of FORD MOTOR COMPANY
  16. Remove the holding device from the steering wheel.
    GFD554851Courtesy of FORD MOTOR COMPANY

    4x2/4x4

  17. NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

    Torque the LH engine mount-to-frame bolts.

    Torque: 129 lb.ft (175 Nm)

    GFD556049Courtesy of FORD MOTOR COMPANY

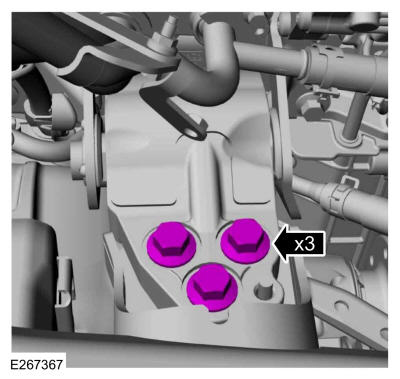

  18. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD556050Courtesy of FORD MOTOR COMPANY
  19. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new RH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD556051Courtesy of FORD MOTOR COMPANY
  20. NOTE: Only use hand tools when loosening or tightening the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    GFD556031Courtesy of FORD MOTOR COMPANY

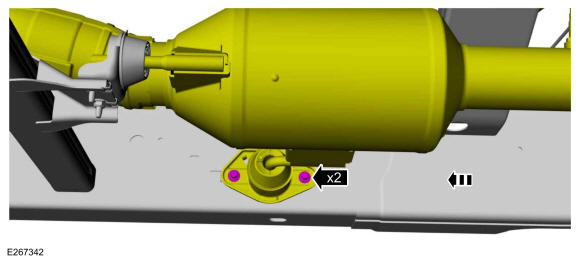

  21. Position back the exhaust system and install the bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD556052Courtesy of FORD MOTOR COMPANY

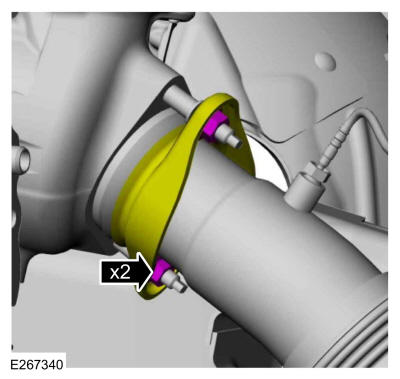

  22. Install the new turbocharger flange nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD556053Courtesy of FORD MOTOR COMPANY
  23. If equipped, install the front driveshaft. Refer to: Front Driveshaft .
  24. Connect the RH side coolant hose. Position back the coolant hose and install the nut.

    Torque: 106 lb.in (12 Nm)

    GFD556028Courtesy of FORD MOTOR COMPANY
  25. Install the new O-ring seal on the lower radiator coolant tube. Lubricate the O-ring seal with clean engine coolant. Refer to: Specifications .
    GFD556054Courtesy of FORD MOTOR COMPANY
  26. NOTE: Apply coolant to the coolant connector opening before installing the tube.

    Install the lower radiator coolant tube and the bolts. Refer to: Specifications .

    Torque: M8 bolt : 18 lb.ft (25 Nm) M6 bolt : 71 lb.in (8 Nm)

    GFD556026Courtesy of FORD MOTOR COMPANY
  27. If equipped. Connect the block heater cord retainers.
    GFD556025Courtesy of FORD MOTOR COMPANY
  28. Connect the lower radiator hose to the lower radiator coolant tube.
    GFD556024Courtesy of FORD MOTOR COMPANY
  29. If equipped, install the skid plate and the bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD556023Courtesy of FORD MOTOR COMPANY
  30. If equipped, install the underbody shield and the bolts.

    Torque: M8 bolt : 30 lb.ft (40 Nm) M6 bolt : 71 lb.in (8 Nm)

    GFD556022Courtesy of FORD MOTOR COMPANY
  31. Install the transmission housing cover and the bolts. Install the nut.

    Torque: 71 lb.in (8 Nm)

    GFD555952Courtesy of FORD MOTOR COMPANY
  32. Install the following items:

    1. Install the cooling fan upper shroud. Refer to: Cooling Fan Upper Shroud .
    2. Install the generator. Refer to: Generator - 3.0L Power Stroke Diesel .
    3. Install the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
    4. Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    5. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    6. Install the air cleaner. Refer to: Air Cleaner .
    7. Install the RH and the LH front fender splash shields. Refer to: Fender Splash Shield .
    8. Install the cowl panel. Refer to: Cowl Panel .

  33. NOTE: LH shown, RH similar.

    1. Position the hood shock and attach.
    2. Install the clip.

    GFD556055Courtesy of FORD MOTOR COMPANY
  34. Position the hood and install the nuts.

    Torque: 18 lb.ft (25 Nm)

    GFD554159Courtesy of FORD MOTOR COMPANY
  35. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  36. Start and check the exhaust system for leaks.
