Crankshaft Rear Seal with Retainer Plate: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

Remove the flexplate. Refer to: Flexplate .
Remove the CKP sensor cover.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and position aside the CKP sensor.

Courtesy of FORD MOTOR COMPANY
NOTE: Care must be taken not to damage the crankshaft sealing surface when removing the crankshaft timing trigger wheel.

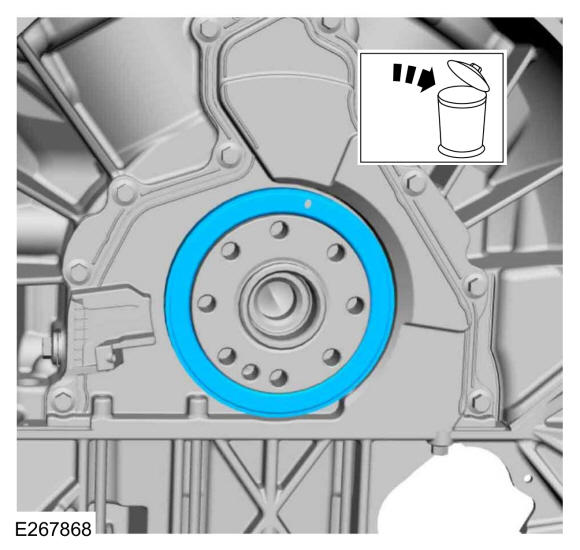

Remove and discard the CKP timing trigger wheel.

Courtesy of FORD MOTOR COMPANY
Remove the engine block skirt stiffener bolts.

Courtesy of FORD MOTOR COMPANY

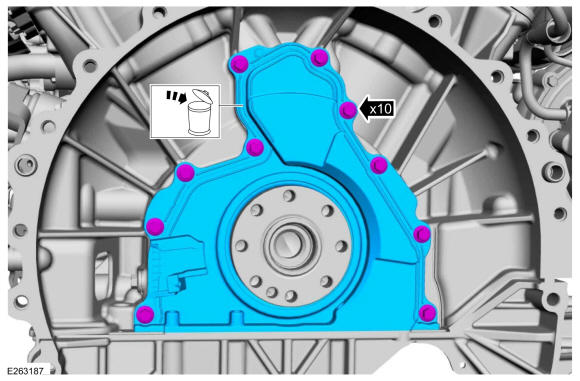

Remove the bolts and the crankshaft rear seal with retainer plate.
- Discard the crankshaft rear seal with retainer plate.
Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
