Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the following items:
1. Remove the timing belt. Refer to: Timing Belt .
2. Remove the starter motor. Refer to: Starter Motor .
Remove Special Service Tool: 303-1671 Pin, Locking Crankshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft clockwise.

Install Special Service Tool: 303-1677 Locking Tool, Flywheel.

Courtesy of FORD MOTOR COMPANY
NOTE: Mark the location of the crankshaft sprocket location before removal.

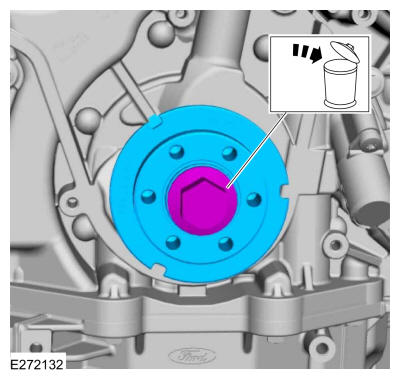

- Remove the bolt and the crankshaft sprocket.
- Discard the bolt.
Courtesy of FORD MOTOR COMPANY

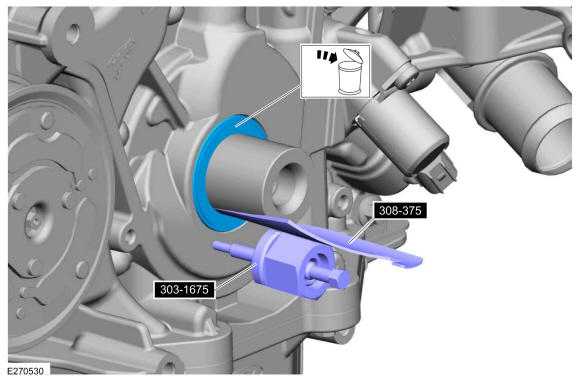

Using the special tools, remove and discard the crankshaft front seal. Use Special Service Tool: 303-1675 Adapter, Seal Remover., 308-375 Remover, Input Shaft Seal.
